Brachistochrone Model – Demonstrating the Fastest Descent Path

Brachistochrone Model by Elmo Agencies, a manufacturer in Ambala, an educational apparatus designed to demonstrate an important principle in mechanics and mathematics: the path of fastest descent under gravity.

The model compares two different paths between elevated and lower points, typically a straight track and a cycloidal track. When identical balls are released simultaneously under comparable conditions, the demonstration allows students to observe that the ball travelling along the cycloidal path can reach the lower point sooner than the ball travelling along the straight path.

The term brachistochrone comes from Greek words meaning “shortest time.” The brachistochrone problem asks which curve allows an object moving under gravity alone to travel between two points in the least possible time.

A straight line may provide a shorter geometric distance, but it is not necessarily the path that takes the least time. The cycloidal path initially descends more steeply, allowing the object to gain speed quickly. This increased speed can compensate for the longer distance travelled along the curved path.

Working Principle

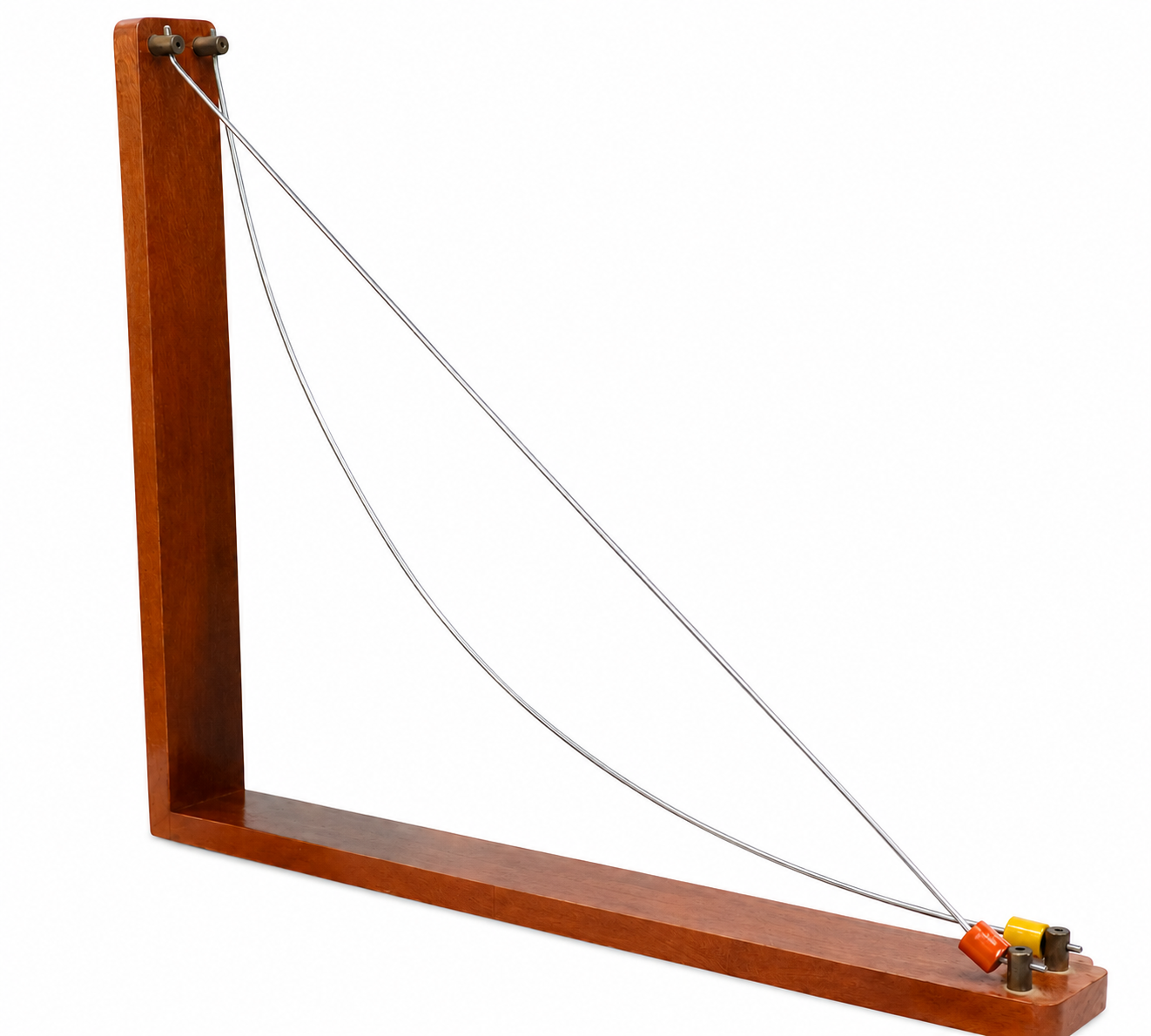

The Brachistochrone Model uses two tracks with different shapes.

One track provides a straight path between the starting and finishing positions. The second track follows a cycloidal curve representing the brachistochrone path.

Two similar rolling balls are placed at corresponding starting points and released simultaneously.

During the demonstration:

1. Both balls begin from approximately the same height.
2. Gravity accelerates the balls along their respective paths.
3. The ball on the cycloidal path descends more steeply at the beginning.
4. It gains speed earlier in the motion.
5. Under suitable experimental conditions, the ball travelling along the cycloidal path reaches the lower point before the ball travelling along the straight path.

This provides a visual demonstration of how travel time depends not only on distance but also on the speed gained along the path.

Typical Components

Depending on the model configuration, the apparatus may include:

• A stable demonstration base
• Straight track
• Cycloidal or brachistochrone curve track
• Two similar rolling balls
• A simultaneous release arrangement
• Supporting structures for maintaining track alignment

The exact dimensions, materials, and construction may vary according to the supplied model.

Educational Concepts Demonstrated

The Brachistochrone Model can be used to introduce:

• Motion under gravity
• Acceleration
• Velocity and changing speed
• Time of descent
• Conservation of mechanical energy
• Gravitational potential energy
• Kinetic energy
• The brachistochrone problem
• Cycloidal curves
• Applications of differential and integral calculus

Why Does the Cycloidal Path Reach First?

A common assumption is that the shortest distance must also provide the shortest travel time. The brachistochrone demonstration shows why this is not always true.

The cycloidal path begins with a relatively steep descent. This allows the rolling ball to convert gravitational potential energy into kinetic energy early in its motion and gain speed more rapidly.

Although the cycloidal track may have a longer overall distance than a straight path, the earlier increase in speed can result in a shorter total travel time.

The model therefore provides a practical demonstration of the relationship between path shape, acceleration, and travel time.

Educational Applications

Physics Laboratories

Students can observe motion under gravity and compare travel times along different paths.

Mathematics Education

The apparatus provides a visual introduction to the classical brachistochrone problem and the role of calculus in solving optimisation problems.

Engineering Education

Students can explore how the geometry of a path can influence acceleration, velocity and travel time.

STEM Learning

The Brachistochrone Model connects physics and mathematics through a practical and observable experiment.

Science Exhibitions

The simultaneous comparison of two rolling objects provides a visually engaging demonstration for science fairs and exhibitions.

Key Features of Brachistochrone Model

• Compares straight and cycloidal paths
• Demonstrates the brachistochrone principle visually
• Suitable for studying motion under gravity
• Helps explain the relationship between speed, distance, and time
• Supports demonstrations in physics and mathematics
• Suitable for classroom and laboratory use
• Encourages observation and experimental comparison

How to Perform the Demonstration

1. Place the Brachistochrone Model on a stable and level surface.
2. Position one rolling ball on each track at the designated starting points.
3. Ensure both balls begin from equivalent heights.
4. Release both balls simultaneously.
5. Observe and compare the time taken to reach the lower end.
6. Repeat the experiment if necessary to observe consistent results.

For the most reliable comparison, the tracks should be properly aligned, and the rolling balls should have similar physical properties.

Ideal For

Use Case	Educational Purpose
Physics Laboratories	Study gravity, acceleration and motion
Mathematics Classes	Demonstrate the brachistochrone problem
Engineering Institutes	Explore applied mechanics and optimisation
STEM Education	Connect mathematics with practical physics
Science Exhibitions	Demonstrate a classical scientific principle
Teacher Demonstrations	Explain complex concepts visually
Student Projects	Investigate motion and travel-time comparison

Frequently Asked Questions

What does the Brachistochrone Curve Working Model demonstrate?

The Brachistochrone Model demonstrates how the shape of a path affects the time required for an object to descend under gravity. Under ideal conditions, a cycloidal curve provides the fastest descent path between two points.

Is the shortest distance always the fastest path?

No. A straight line may be geometrically shorter, but the initial steep descent of a cycloidal path allows an object to gain speed more quickly, which can result in a shorter total travel time.

What is a brachistochrone curve?

The brachistochrone is the curve that gives the minimum travel time for an object moving under gravity between two points under idealised conditions. Its mathematical solution is a cycloid.

What happens during the demonstration?

Two similar balls are released simultaneously along different tracks. The motion of the balls can be compared to observe how the path shape affects the time of descent.

Is this model suitable for schools and colleges?

Yes. It can be used for physics, mathematics, engineering, and STEM demonstrations at suitable educational levels.

Who supplies the Brachistochrone Model?

The Brachistochrone Model is supplied by Elmo Agencies, a scientific manufacturer in Ambala, providing educational science apparatus and practical demonstration models.

Why Choose Elmo Agencies?

Elmo Agencies provides educational and scientific apparatus designed to support practical learning. As a scientific manufacturer in Ambala, the company focuses on science models and teaching equipment that help students understand scientific and mathematical principles through observation and experimentation.

Conclusion

The Brachistochrone Model provides a practical demonstration of one of the most important optimisation problems in classical mechanics. By comparing motion along straight and cycloidal paths, students can observe how the geometry of a path influences acceleration, speed, and total travel time. Suitable for physics laboratories, mathematics classrooms, engineering institutions, STEM programs and science exhibitions, the model offers a clear and engaging way to explore motion under gravity and the classical brachistochrone principle.
