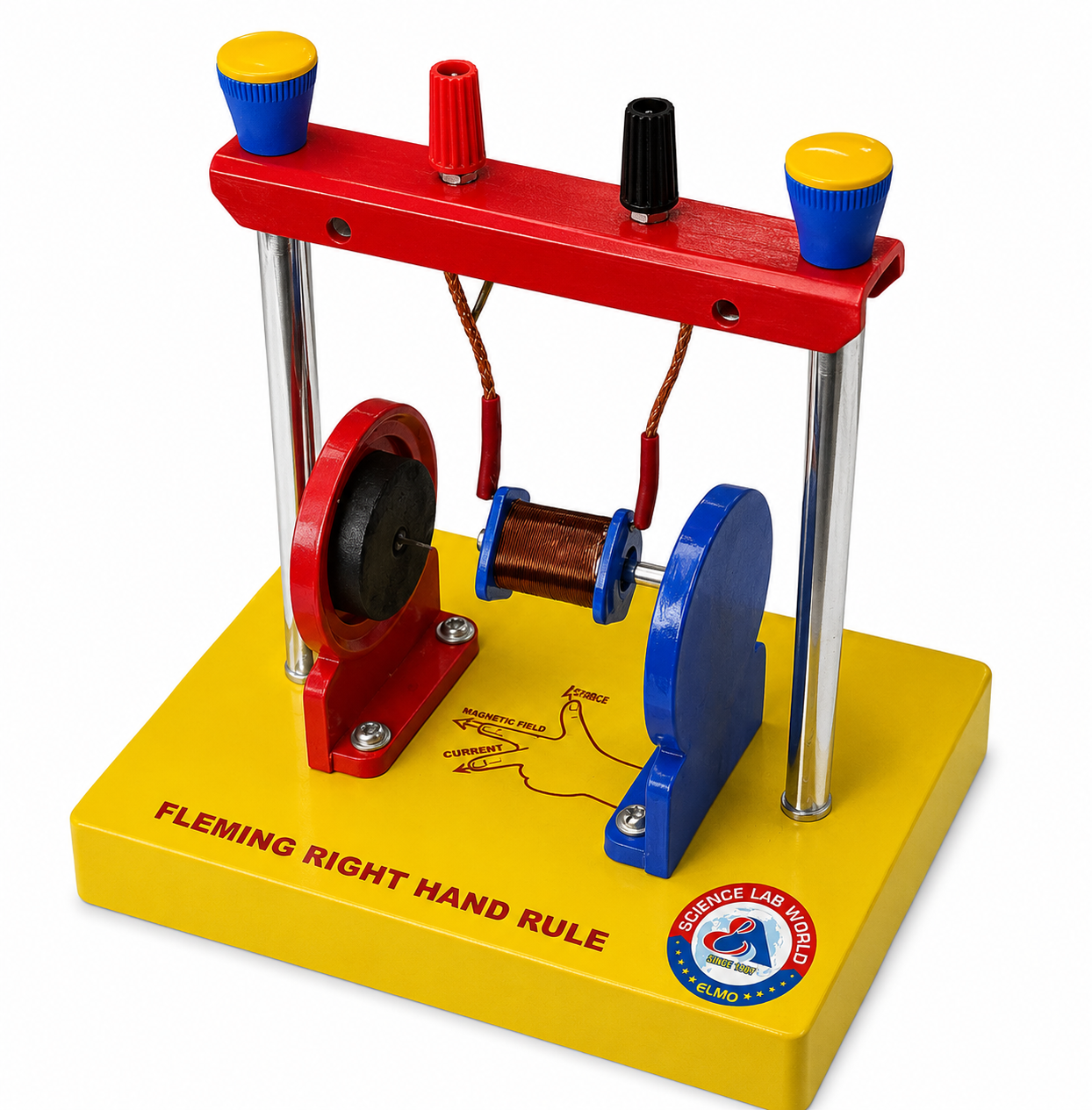

Fleming’s Right Hand Rule Apparatus

Fleming’s Right Hand Rule Apparatus

Key Factors of Fleming’s Right Hand Rule

1. Motion (M): The direction in which the conductor moves through the magnetic field.
2. Magnetic Field (B): The direction of the magnetic field, conventionally considered from the north pole toward the south pole.
3. Induced Current (I): The direction in which current is generated within the moving conductor.

How to Use Fleming’s Right Hand Rule Apparatus

To apply Fleming’s Right Hand Rule:

1. Extend your right hand with the thumb, index finger, and middle finger positioned at right angles to one another.
2. Point your thumb in the direction of motion of the conductor.
3. Point your index finger in the direction of the magnetic field.
4. Your middle finger then indicates the direction of the induced current.

Generator Principle

Fleming’s Right Hand Rule is primarily used for generators, where the movement of a conductor through a magnetic field produces an induced electric current. It helps students visualize the relationship between mechanical motion, magnetic fields, and electrical generation.

For motors, a different principle known as Fleming’s Left Hand Rule is used to determine the direction of force acting on a current-carrying conductor in a magnetic field.

Important Points

• Relative motion between the conductor and magnetic field is required to induce current.
• The magnitude of induced current can be influenced by factors such as magnetic field strength, conductor speed, and conductor length.
• Fleming’s Right Hand Rule provides a simplified method for understanding the basic relationship between motion, magnetic field, and induced current.
• The rule is widely used in physics and electrical engineering education to explain the basic working principle of electromagnetic generators.
