Ring Launcher Model

Ring Launcher Model – Electromagnetic Induction & Lenz’s Law Demonstrator

The Ring Launcher Model is a physics demonstration apparatus used to illustrate electromagnetic induction, Lenz’s law, and eddy currents. Supplied by Elmo Agencies, a manufacturer in Ambala, it provides a visual demonstration of the interaction between an alternating magnetic field and conducting aluminium rings.

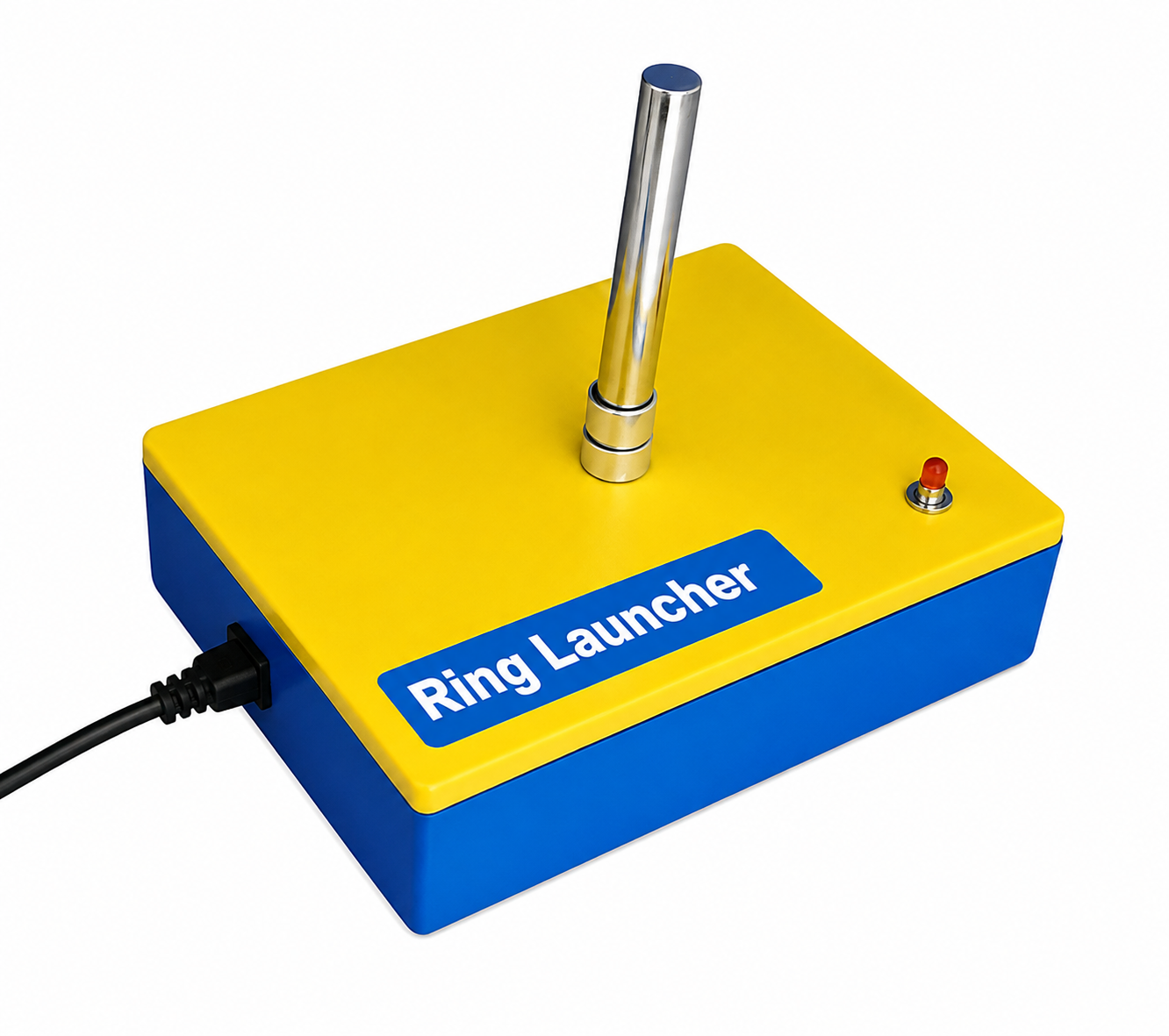

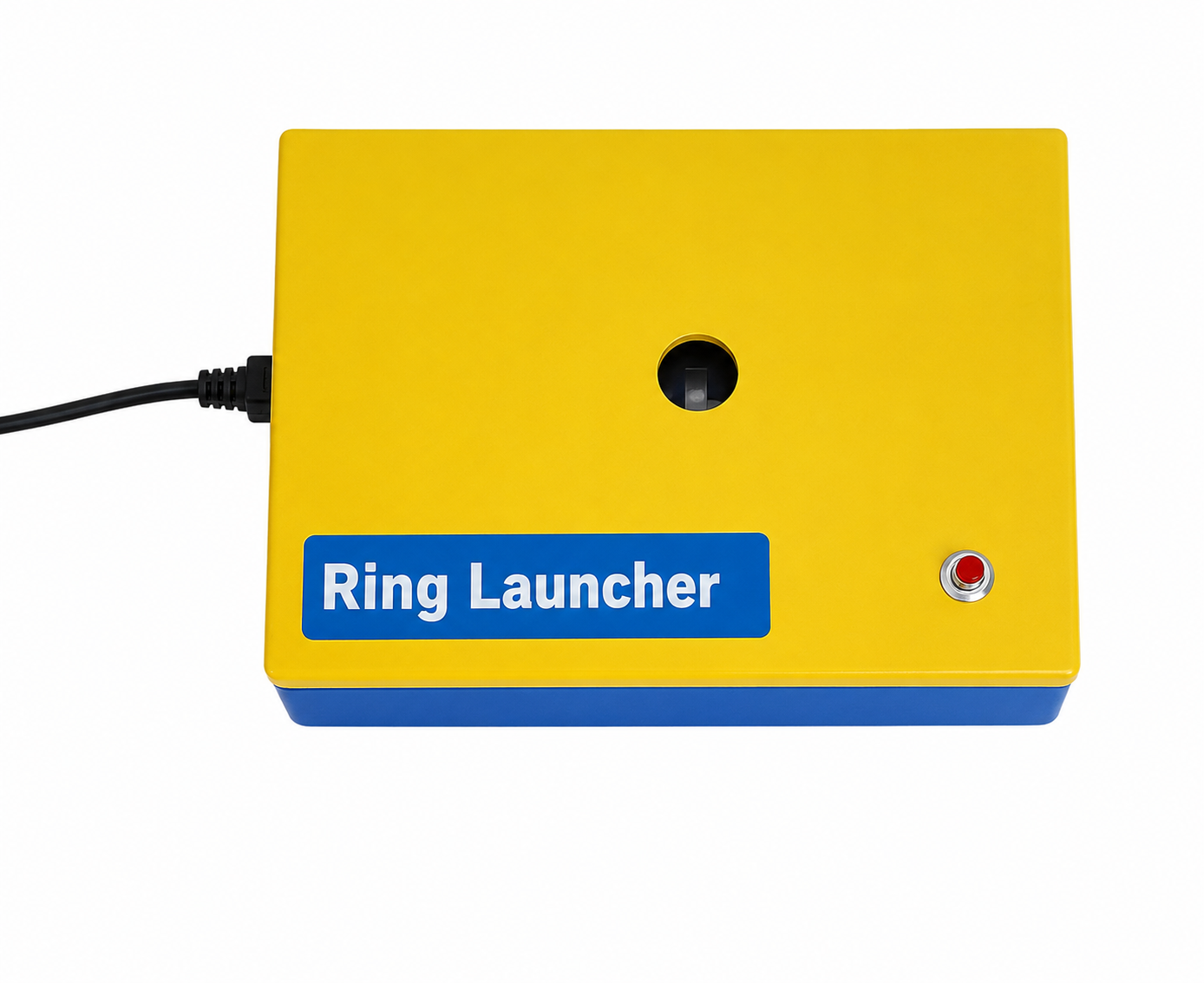

The apparatus consists of a copper coil mounted around an iron core and conducting aluminium rings. When alternating current passes through the coil, the changing magnetic field induces current in the closed conducting ring. The interaction between the induced current and magnetic field produces a force that can cause the ring to move upward. The open and closed rings allow students to compare the effect of induction in different conducting paths.

Kit Includes

• Copper coil
• Iron core/rod
• Aluminium rings
• Open and closed ring arrangement
• Stable support base
• AC power connection

Key Features

• Demonstrates electromagnetic induction
• Illustrates Lenz’s law
• Shows the effect of induced currents in conducting rings
• Includes open and closed rings for comparison
• Suitable for physics classroom demonstrations
• Sturdy design for educational use

Educational Applications

The Ring Launcher Model is useful for:

• Demonstrating electromagnetic induction
• Explaining Lenz’s law
• Introducing eddy currents
• Observing magnetic effects of induced current
• Supporting school and college physics practicals

Frequently Asked Questions

Q1: What does the Ring Launcher Model demonstrate?
A: It demonstrates electromagnetic induction and Lenz’s law using a changing magnetic field and conducting rings.

Q2: Why does the closed ring move?
A: The changing magnetic field induces a current in the closed ring. The interaction between this induced current and the magnetic field produces a force on the ring.

Q3: What is the purpose of the open ring?
A: The open ring provides a comparison because its interrupted conducting path prevents the same circulating induced current from developing.

Q4: What components are used in the apparatus?
A: The model uses a copper coil, iron core, and aluminium rings mounted on a stable base.

Q5: Is it suitable for school laboratories?
A: Yes, it is suitable for school, college, and STEM physics demonstrations.

Q6: Who supplies the Ring Launcher Model?
A: The Ring Launcher Model is supplied by Elmo Agencies, a scientific manufacturer in Ambala, for educational laboratory requirements.

Conclusion

The Ring Launcher Model by Elmo Agencies offers a clear, hands-on demonstration of electromagnetic induction, Lenz’s law, and induced currents. By comparing open and closed aluminium rings, students can better understand how changing magnetic fields interact with conductors.
