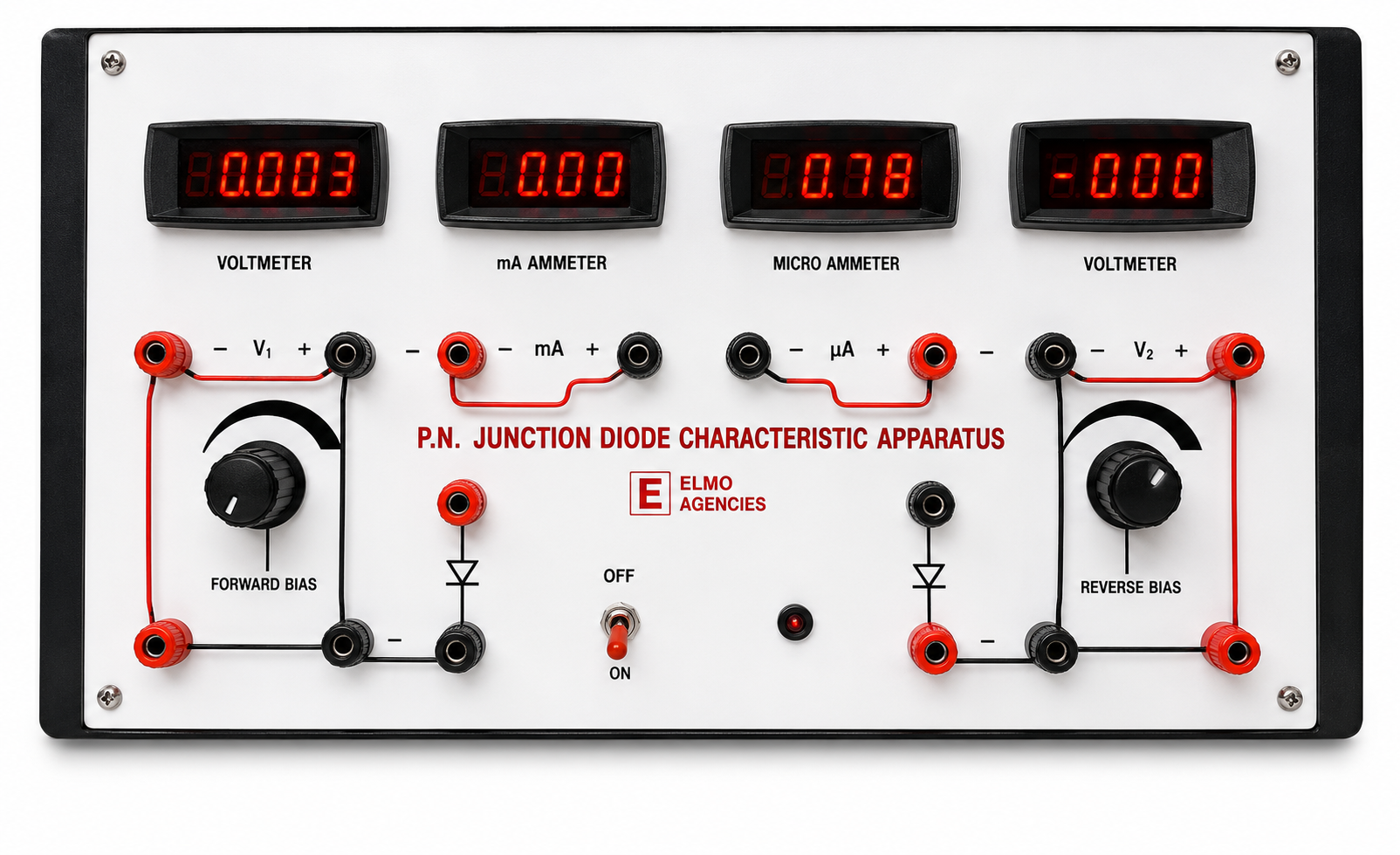

Digital PN Junction Diode Apparatus
- Regulated DC Power Supply of 2V 10mA and 20V 100uA
- DC Digital Voltmeter of 2V and 20V
- DC Digital Ammeter of 20mA and 200uA
- Manual Included
₹2,350.00 ₹5,000.00
- To pick up today
- Free
- More details
- More details
The Digital PN Junction Diode Apparatus is a precision educational instrument designed to study the electrical characteristics of semiconductor diodes under forward and reverse bias conditions. Manufactured and supplied by Elmo Agencies, a trusted scientific instrument manufacturer in Ambala, this apparatus is widely used in engineering colleges, technical institutes, and electronics laboratories for practical experiments in semiconductor physics and electronic circuit analysis.
A P-N Junction Diode is formed by joining p-type and n-type semiconductor materials, creating a depletion region that regulates the flow of electric current. This apparatus enables students to investigate the behavior of semiconductor diodes under different biasing conditions and understand concepts such as depletion region formation, forward conduction, reverse blocking, and diode V-I characteristics through practical experimentation.
The apparatus features variable DC regulated power supplies of 0-2V/10mA and 0-20V/100µA, making it suitable for both forward and reverse bias experiments. It supports experiments using both Silicon and Germanium diodes, allowing students to compare their electrical characteristics. For precise measurement, the setup is equipped with a digital DC voltmeter having ranges of 2V and 20V, along with a DC ammeter offering ranges of 20mA and 200µA, ensuring accurate observation of voltage and current values during experiments.
Using this apparatus, students can plot V-I characteristic curves, analyze diode resistance, compare the performance of silicon and germanium diodes, and understand the practical applications of semiconductor devices in electronic circuits. Manufactured using quality components by Elmo Labs and offered by Elmo Agencies, a leading manufacturer in Ambala, the P-N Junction Diode Apparatus (Digital) is designed for accuracy, durability, and long-term laboratory use. It is an essential instrument for electronics education, semiconductor studies, and engineering practicals.
- Overview
| Weight | 1 kg |
|---|---|
| Dimensions | 42 × 21 × 12 cm |
| Brand | ELMO |
