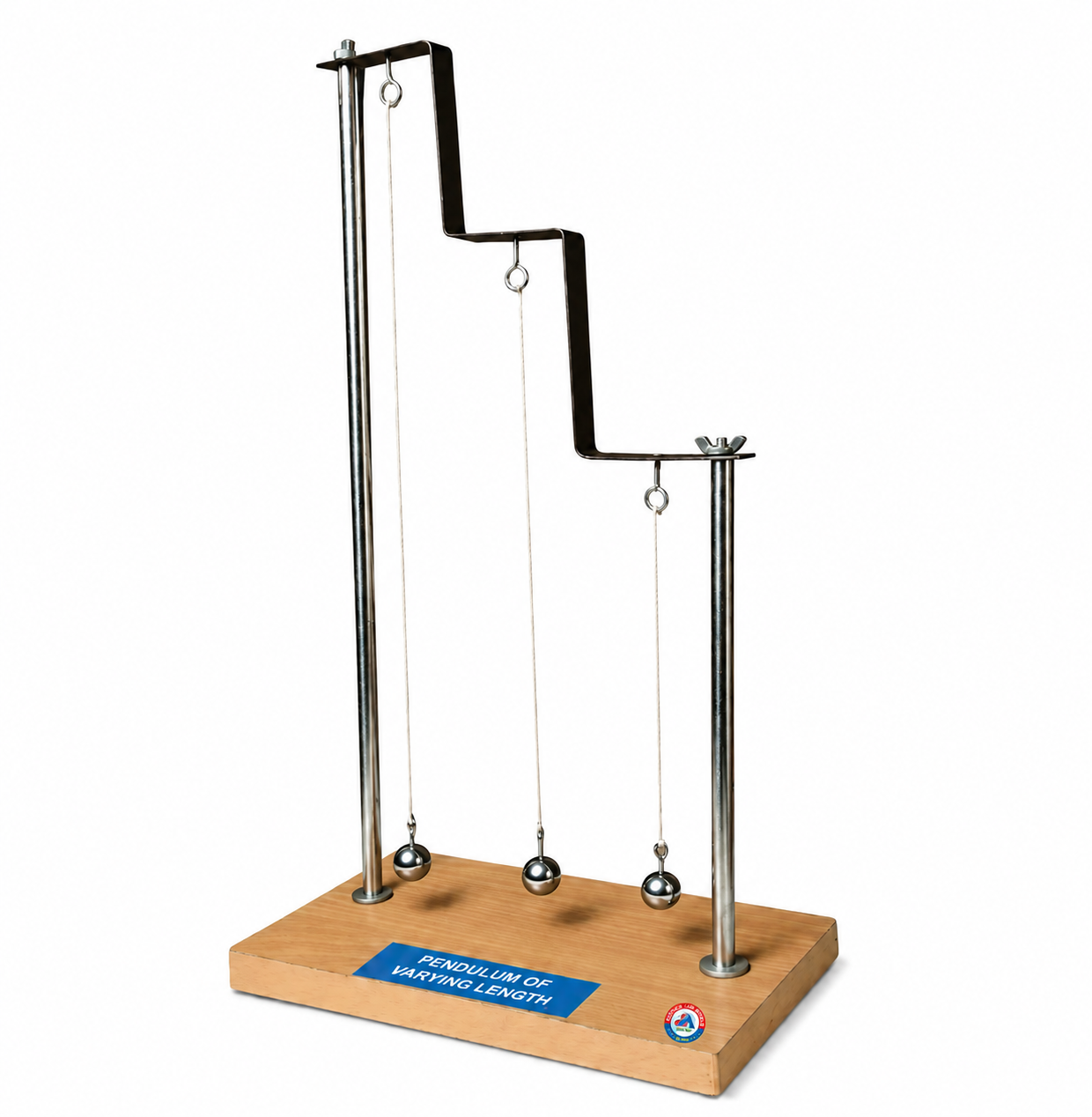

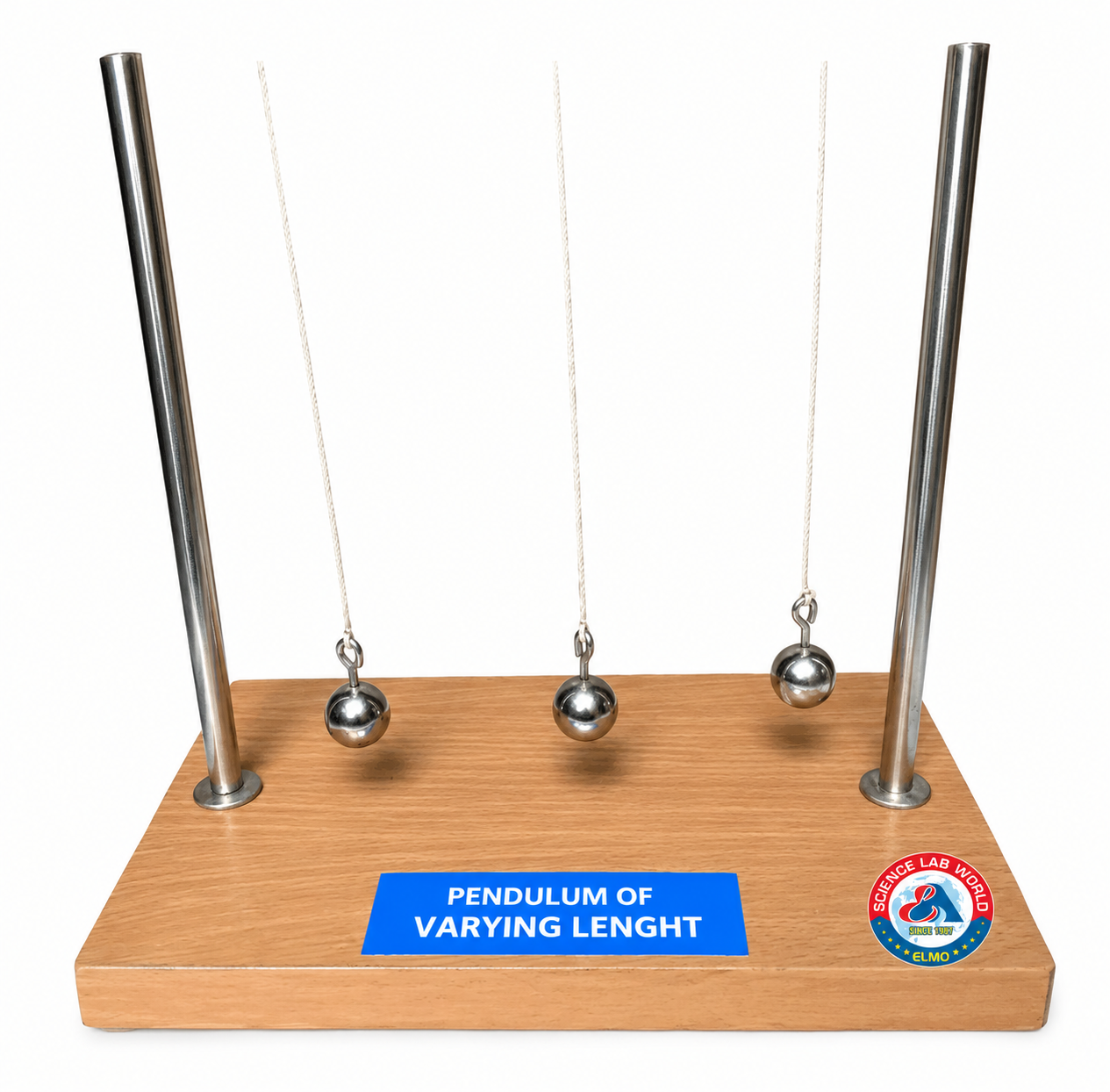

Distance Pendulum Apparatus

Distance Pendulum Apparatus

Elmo Agencies, a trusted manufacturer in Ambala, offers the Distance Pendulum Apparatus, an educational physics apparatus designed to investigate the relationship between the length of a simple pendulum and its time period of oscillation.

The apparatus allows students to suspend a pendulum bob from different lengths and measure the time taken for a selected number of oscillations. By comparing the measurements obtained at different pendulum lengths, students can study how the length of a pendulum affects its period.

Distance Pendulum Apparatus is suitable for physics laboratories, schools, colleges and practical STEM education.

What Is the Distance Pendulum Apparatus?

The Distance Pendulum Apparatus is designed to provide a practical demonstration of the motion of a simple pendulum.

A simple pendulum consists of:

• A pendulum bob or suspended mass
• A light suspension string or equivalent support
• A fixed point of suspension
• A means of adjusting or measuring the pendulum length

The pendulum is displaced slightly from its equilibrium position and released. It then moves back and forth under the influence of gravity.

Students can change the effective length of the pendulum and measure the corresponding time period.

Principle of the Experiment

For an ideal simple pendulum undergoing small-angle oscillations, the time period is approximately related to its length.

The experiment allows students to verify that the time period increases as the pendulum length increases.

For small oscillations, the period is approximately proportional to the square root of the pendulum length. Therefore, a longer pendulum generally takes more time to complete one oscillation than a shorter pendulum.

How the Experiment Works

A typical experiment is performed by:

1. Setting the pendulum to a selected length.
2. Measuring the effective length from the point of suspension to the centre of the pendulum bob.
3. Displacing the bob through a small angle.
4. Releasing the bob without giving it an additional push.
5. Measuring the time taken for a selected number of complete oscillations.
6. Calculating the average time period.
7. Repeating the procedure for different pendulum lengths.
8. Comparing the measured results.

Measuring the time for several oscillations rather than only one can help reduce the effect of reaction-time errors when using a stopwatch.

Relationship Between Length and Time Period

The Distance Pendulum Apparatus demonstrates that the time period of a simple pendulum depends primarily on its length and the local acceleration due to gravity, provided the oscillations are sufficiently small.

As the pendulum length increases:

• The time period increases.
• The pendulum swings more slowly.
• More time is required for one complete oscillation.

For a given location, plotting the square of the period against pendulum length can be used to examine the expected proportional relationship.

Students may also compare the period with the square root of the pendulum length to study the relationship experimentally.

Importance of Small-Angle Oscillations

For the standard simple pendulum approximation to be valid, the angular displacement should be kept relatively small.

At larger amplitudes, the period differs slightly from the small-angle approximation.

Students should also try to:

• Release the pendulum gently.
• Keep the point of suspension stable.
• Measure the length consistently.
• Minimise disturbances during timing.
• Repeat observations and calculate average values.

These practices help improve the reliability of experimental results.

Educational Concepts Demonstrated

Simple Harmonic Motion

For small angular displacements, the motion of a simple pendulum provides an important approximation to simple harmonic motion.

Periodic Motion

Students observe repeated motion with a measurable time period.

Effect of Pendulum Length

The experiment demonstrates the relationship between pendulum length and oscillation period.

Gravity

The restoring effect that causes the pendulum to oscillate is related to gravity.

Experimental Measurement

Students practise:

• Measuring length
• Recording time
• Repeating observations
• Calculating averages
• Comparing experimental results

Graphical Analysis

The collected observations can be used to investigate mathematical relationships through graphs and data analysis.

Typical Experimental Procedure

Students can experiment using several different pendulum lengths.

For each length:

• Measure the effective pendulum length.
• Set the pendulum into small-angle oscillation.
• Record the time for a chosen number of oscillations.
• Calculate the average period.
• Repeat the measurement if required.

The results can then be arranged in a table containing:

Pendulum Length	Number of Oscillations	Total Time	Time Period
Selected length	Selected number	Measured value	Calculated value

The experimental data can then be analysed to investigate the relationship between length and time period.

Key Features of Distance Pendulum Apparatus

• Designed to demonstrate simple pendulum motion
• Allows variation of pendulum length
• Supports measurement of oscillation time
• Helps investigate the relationship between length and period
• Suitable for practical physics experiments
• Supports observation, calculation and graph-based analysis
• Useful for school and college laboratories

The exact construction, dimensions, suspension arrangement and supplied accessories may vary according to the specific model.

Ideal For

Use Case	Educational Purpose
School Physics Labs	Study pendulum motion and oscillation
College Laboratories	Perform practical mechanics experiments
STEM Education	Connect mathematical relationships with physical motion
Teacher Demonstrations	Explain periodic motion visually
Student Practical Work	Collect and analyse experimental data
Science Projects	Investigate variables affecting pendulum motion

Frequently Asked Questions

What does the Distance Pendulum Apparatus demonstrate?

It demonstrates the relationship between the length of a simple pendulum and its time period of oscillation.

What is the time period of a pendulum?

The time period is the time taken by the pendulum to complete one full oscillation.

How is the period measured?

Students can measure the time taken for several complete oscillations and divide the total time by the number of oscillations.

Does a longer pendulum have a greater time period?

Yes. Under small-angle conditions, increasing the pendulum length increases its time period.

Why should the pendulum be released through a small angle?

The commonly used theoretical relationship for a simple pendulum is most accurate for relatively small angular displacements.

Does the mass of the pendulum bob significantly affect the period?

For an ideal simple pendulum under the small-angle approximation, the period does not depend on the mass of the bob.

How should the pendulum length be measured?

The effective length is measured from the point of suspension to the centre of mass of the pendulum bob.

Who supplies the Distance Pendulum Apparatus?

The Distance Pendulum Apparatus is supplied by Elmo Agencies, a scientific manufacturer in Ambala, providing educational science apparatus and laboratory equipment.

Why Choose Elmo Agencies?

Elmo Agencies supplies educational physics and science apparatus designed to support practical observation and experimental learning. As a scientific manufacturer in Ambala, the company focuses on equipment that helps students understand scientific principles through hands-on laboratory experiments.

Conclusion

The Distance Pendulum Apparatus is a useful educational tool for studying periodic motion and the relationship between pendulum length and time period. By changing the effective length of the pendulum and recording the time taken for oscillations, students can collect experimental data, calculate average periods and compare their observations with the theoretical behaviour of a simple pendulum.
