Fleming’s Left Hand Rule Apparatus

Fleming’s Left Hand Rule Apparatus – Force and Magnetic Field Demonstration

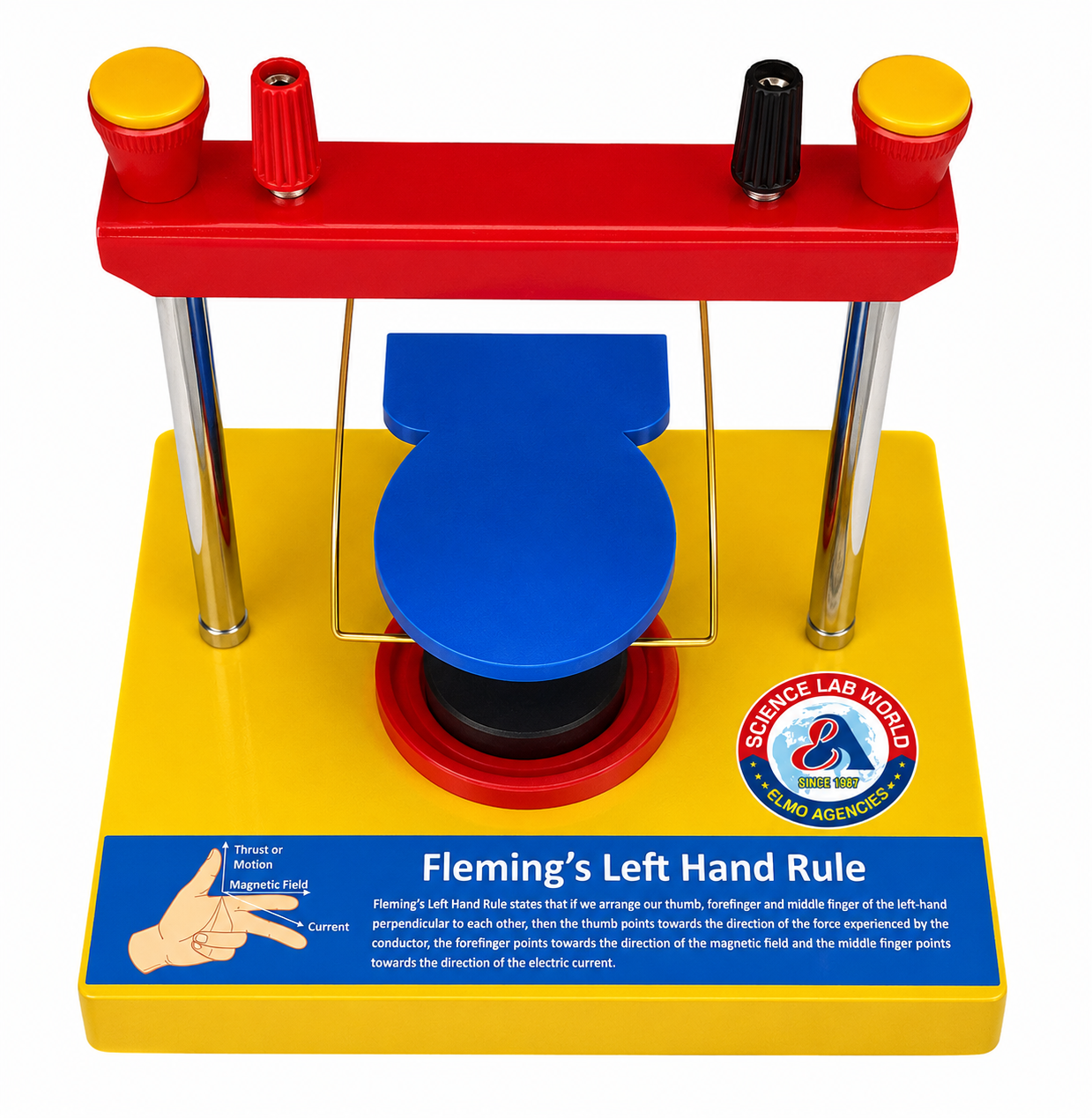

The Fleming’s Left Hand Rule Apparatus is a practical educational tool designed to help students understand the relationship between magnetic fields, electric current, and force acting on a current-carrying conductor. Its hands-on design makes this fundamental concept of electromagnetism easier to visualize and understand.

How to Apply Fleming’s Left Hand Rule

1. Extend your left hand with the thumb, index finger, and middle finger positioned perpendicular to one another.
2. Point your index finger in the direction of the magnetic field.
3. Point your middle finger in the direction of the electric current.
4. Your thumb indicates the direction of the force acting on the conductor.

The rule is particularly useful for understanding the operating principle of electric motors, where a current-carrying conductor experiences a force when placed within a magnetic field.

It is important to note that Fleming’s Left Hand Rule applies to a current-carrying conductor interacting with a magnetic field. The principle has important applications in electric motor design, electromagnetic systems, and the study of magnetic circuits.
