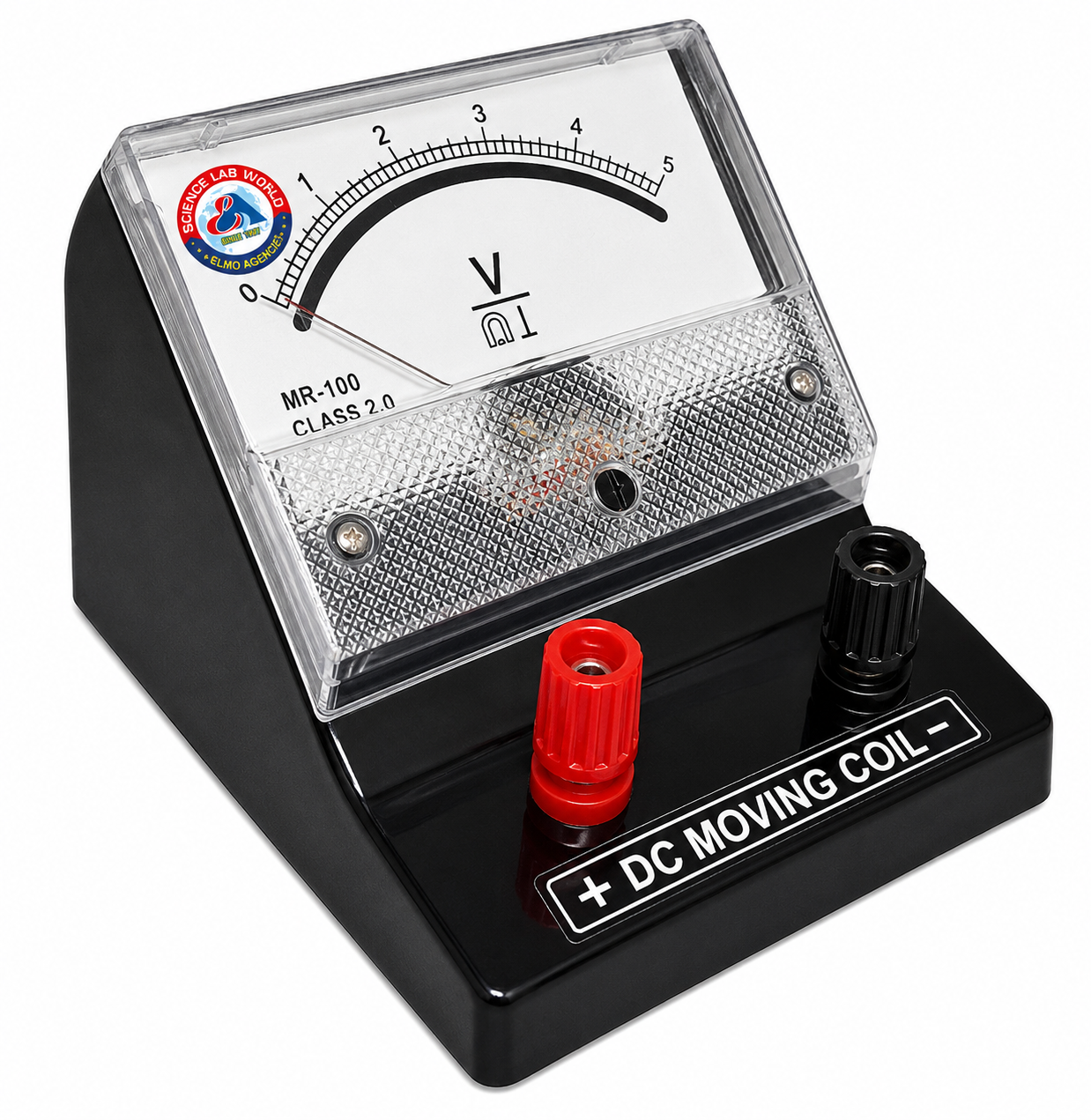

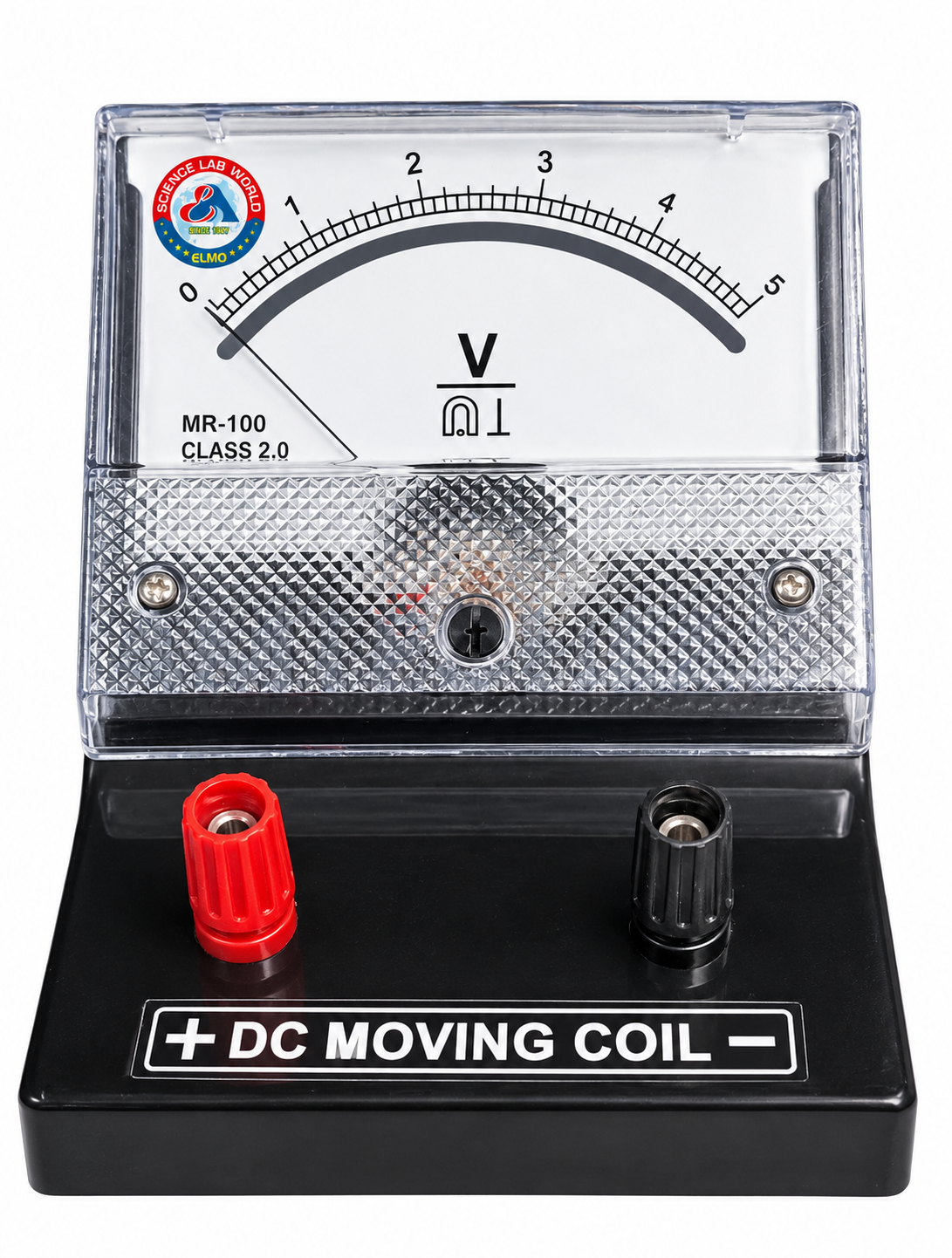

MR100 Desk Stand Meter
Salient Features of MR100 Desk Stand Meter
- Specially designed for easy use in educational institutions and laboratories
- The moving coil meter is inclined for easy reading and mounted on an ABS plastic stand with brass terminals.
- Rugged movement ensures sustained accuracy and reliability,
- Clear and well-defined dial markings with a knife-edge pointer
₹160.00 ₹400.00
- To pick up today
- Free
- More details
- More details
MR100 Desk Stand Meter
The MR100 Desk Stand Meter is a laboratory measuring instrument available with different ammeter, voltmeter, and galvanometer ranges. Its desk-stand format makes it suitable for laboratory work, electrical measurements, physics experiments, and educational demonstrations.
Ranges Available for MR100 Desk Stand Meter:
Range Ammeter
Single Range – 250uA, 300uA, 500uA, 1mA, 5mA, 10mA, 50mA, 100mA, 300mA, 500mA, 1A,3A, 5A, 10A
Dual Range – 1A/5A, 2.5A/5A, 500mA/1A
Triple Range – 50mA/500mA/5A
Range Voltmeter
Single Range – 100mV, 150mV, 250mV, 500mV, 1V, 2V, 3V, 5V, 10V, 15V, 20V, 25V, 100V, 150V, 300V
Dual Range – 1V/5V, 2.5V/5V
Triple Range – 3V/15V/30V
Range Galvanometer
Single Range – 30-0-30 G, 50-0-50 G, 35-0-35 G
Applications
The MR100 Desk Stand Meter can be used for:
- Physics laboratory experiments
- Electrical measurement demonstrations
- Current and voltage measurement
- Galvanometer experiments
- Educational and technical training
- General laboratory applications
Conclusion
The MR100 Desk Stand Meter provides a range of configuration options for ammeter, voltmeter, and galvanometer measurements. With its extensive single, dual, and triple range options, it is suitable for varied laboratory and educational measurement requirements.
- Overview
| Brand | ELMO |
|---|---|
| Dimensions | 135 × 105 × 100 cm |
| Accuracy | +/- 2 F.S.D |
| Color | Black |
| Scale length | 105mm |
| Packaging | Thermocol Box |
