MR80 Desk Stand Meter
Price range: ₹140.00 through ₹150.00
- To pick up today
- Free
- More details
- More details

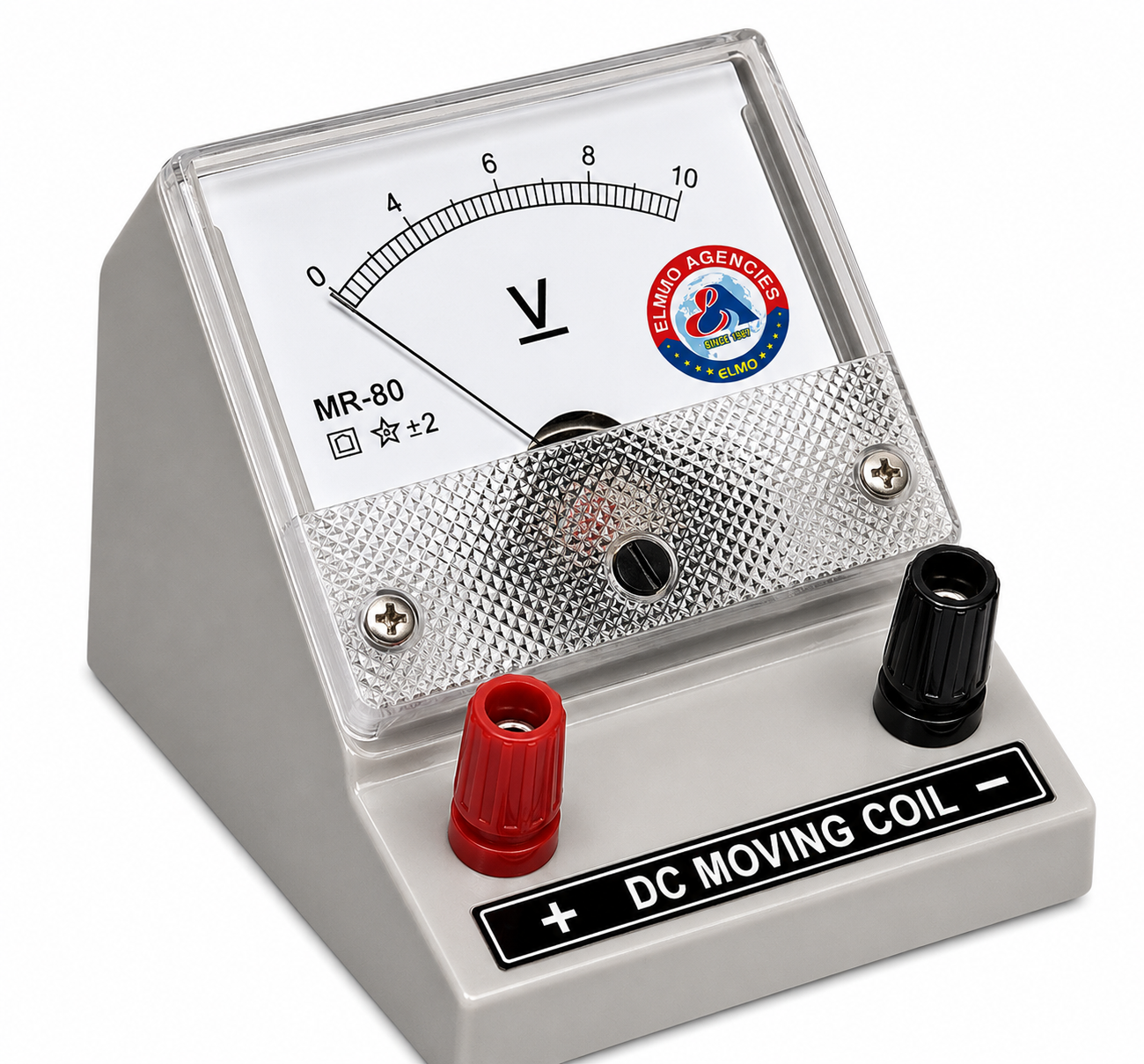

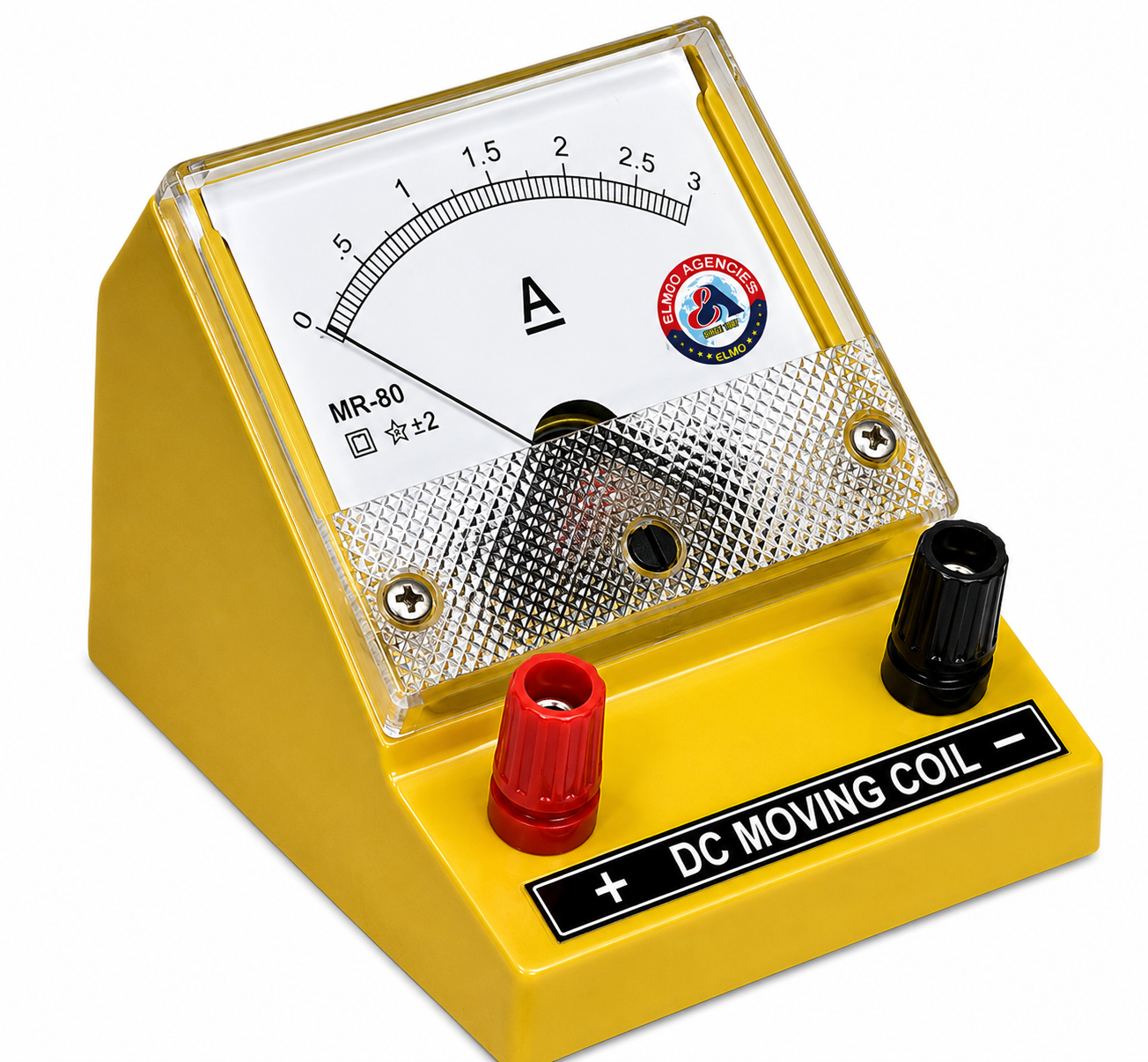

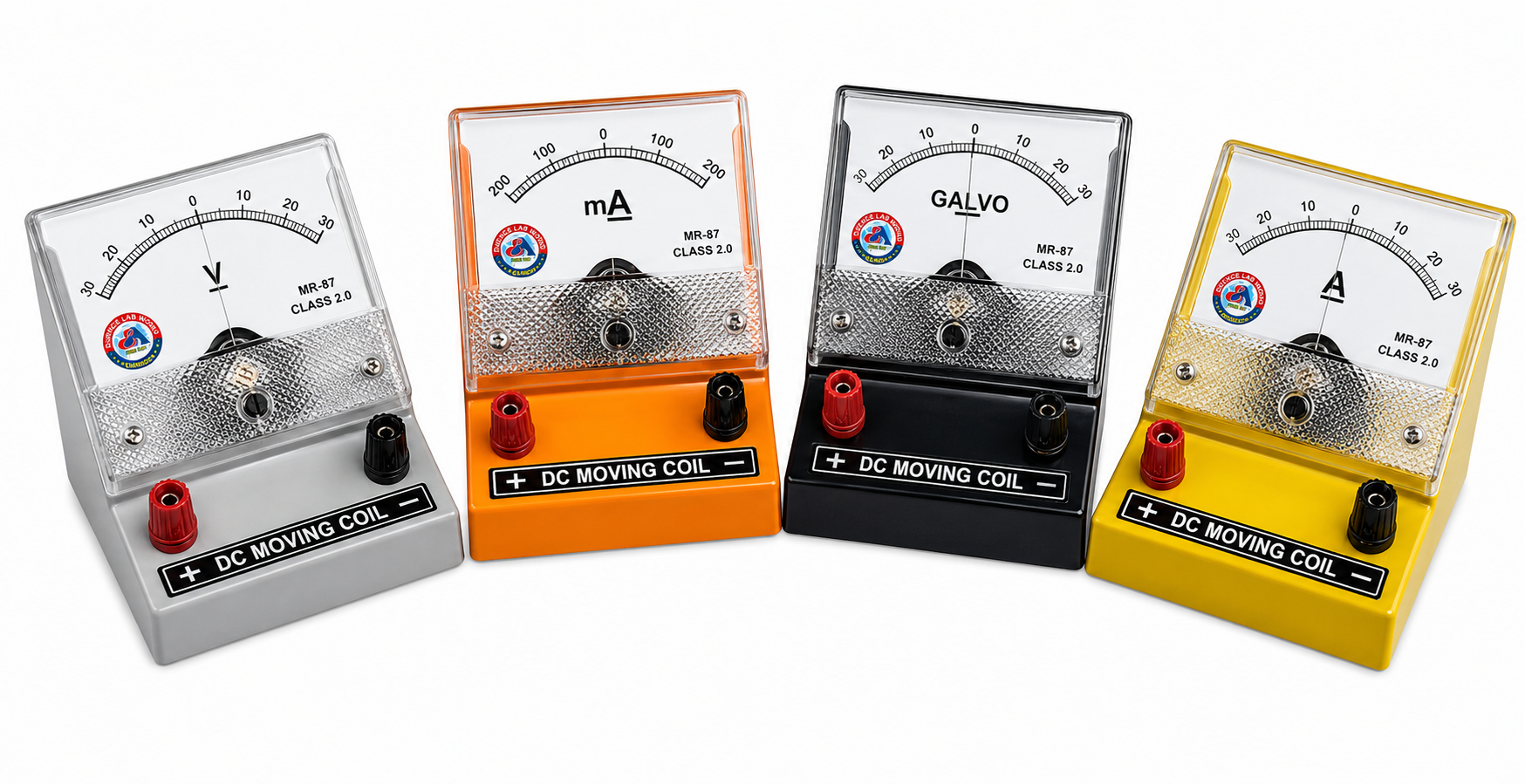

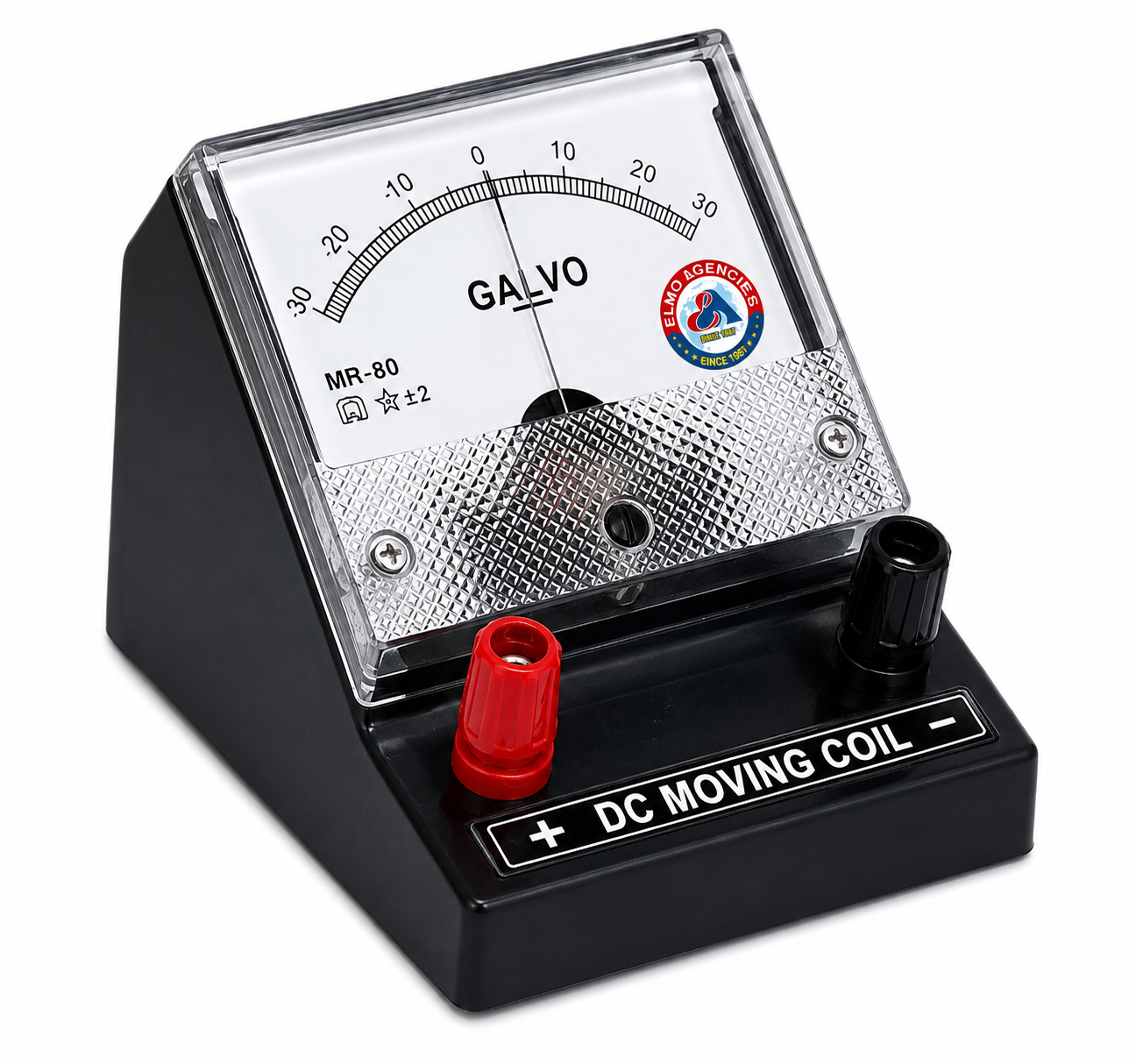

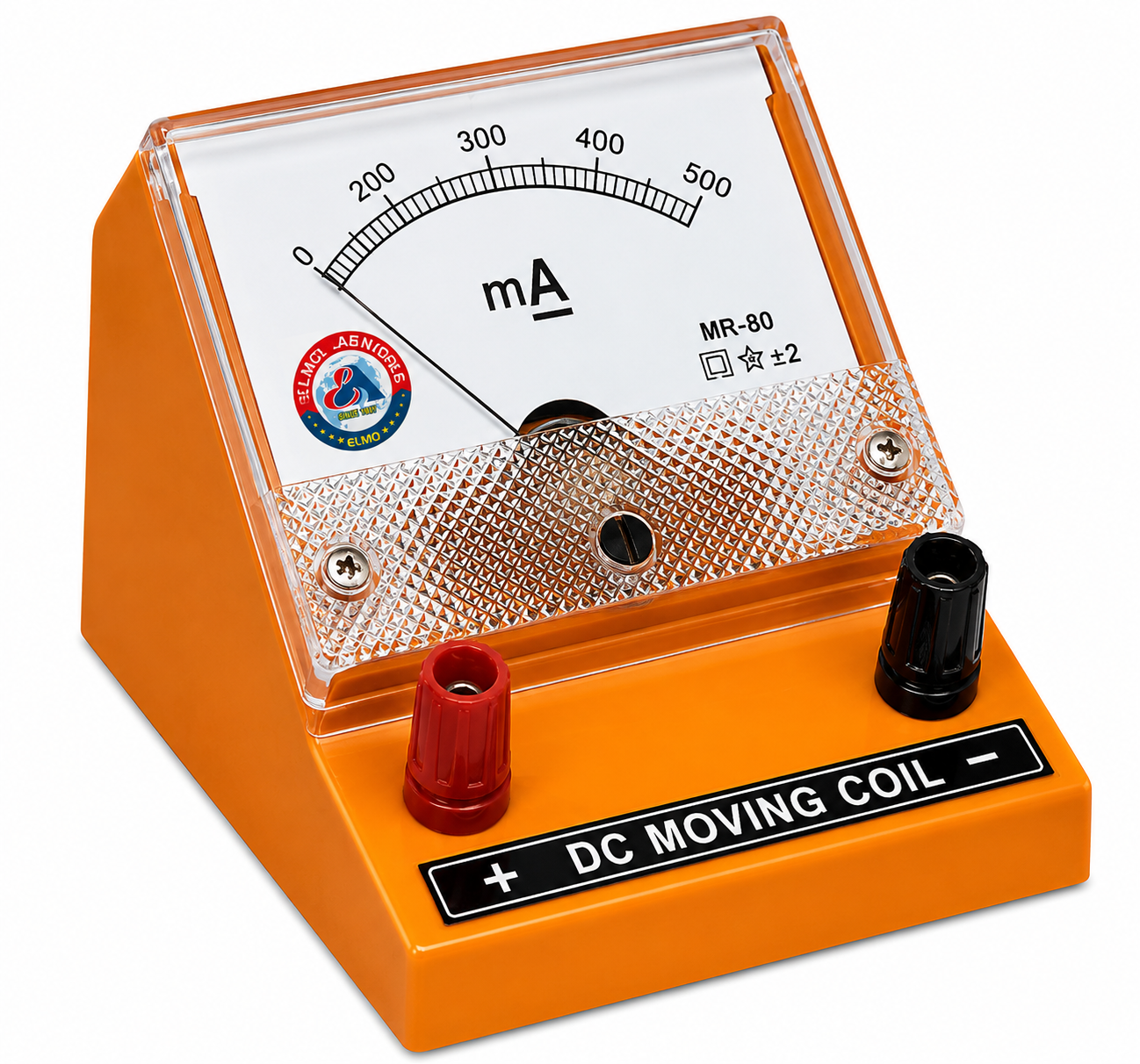

MR80 Desk Stand Meter – DC Measurement Instrument
The MR80 Desk Stand Meter is an educational measuring instrument designed for use in physics laboratories, educational institutions, and electrical training environments. It uses a moving coil mechanism for measuring DC electrical quantities and is available in voltmeter, ammeter, and galvanometer configurations.
From Elmo Agencies, a scientific manufacturer in Ambala, the MR80 Desk Stand Meter is suitable for practical experiments where students need to observe electrical measurements using a traditional analog meter. Its inclined meter face helps provide convenient viewing during laboratory experiments.
Key Features
- Moving coil mechanism for DC measurement
- Available as voltmeter, ammeter, and galvanometer
- Inclined meter face for convenient viewing
- Clear dial with pointer indication
- ABS plastic stand
- Brass connection terminals
- Compact design for laboratory use
- Custom measurement ranges available
Routine Ranges
| Type | Typical Range Options |
|---|---|
| Voltmeter | 0–1V, 0–3V, 0–5V, 0–10V, etc. |
| Ammeter | 0–500mA, 0–1A, 0–3A, 0–5A, etc. |
| Galvanometer | ±30-0-30 μA, ±50-0-50 μA |
Custom ranges can be provided for bulk requirements.
Applications
The MR80 Desk Stand Meter is suitable for:
- School and college physics laboratories
- Electrical and electronics experiments
- STEM demonstrations
- Basic voltage and current measurement
- Technical and vocational training
- Practical laboratory instruction
Why Choose MR80 Desk Stand Meter?
The MR80 provides a straightforward way for students to observe electrical measurements using an analog display. Its multiple configurations and available range options make it adaptable to different laboratory experiments and educational requirements.
Conclusion
The MR80 Desk Stand Meter by Elmo Agencies is a practical instrument for teaching and demonstrating basic electrical measurements. Available in voltmeter, ammeter, and galvanometer versions, it is suitable for schools, colleges, physics laboratories, and technical training environments. The meter is mounted on an ABS plastic stand and features brass terminals for making electrical connections during practical work.
- Overview
| Brand | ELMO |
|---|---|
| Accuracy | +/- 2 F.S.D |
| Size | 105*80*80mm |
| Color | Black, Orange, White, Yellow |
| Scale length | 80mm |
| Packaging | Thermocol Box |
