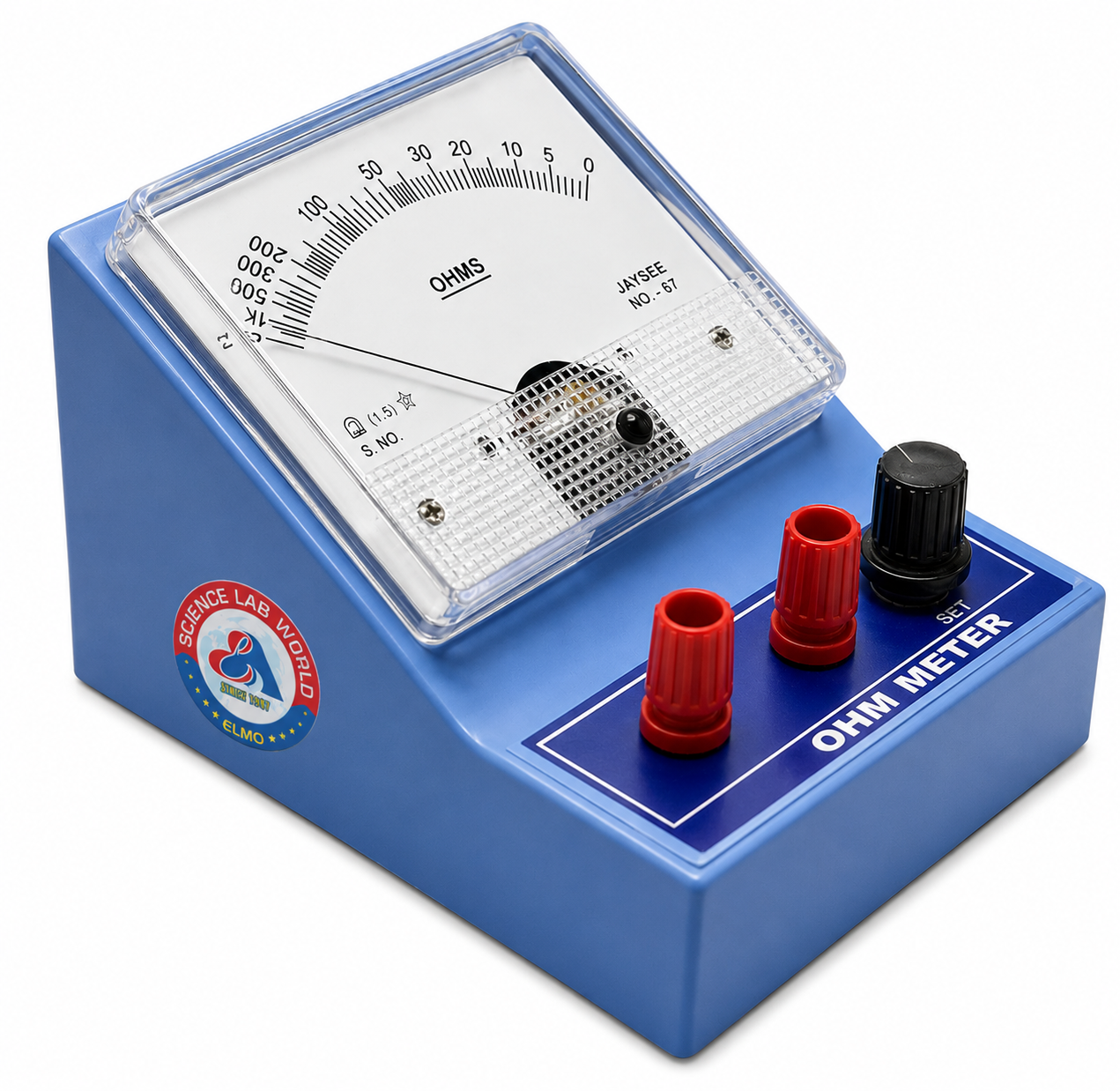

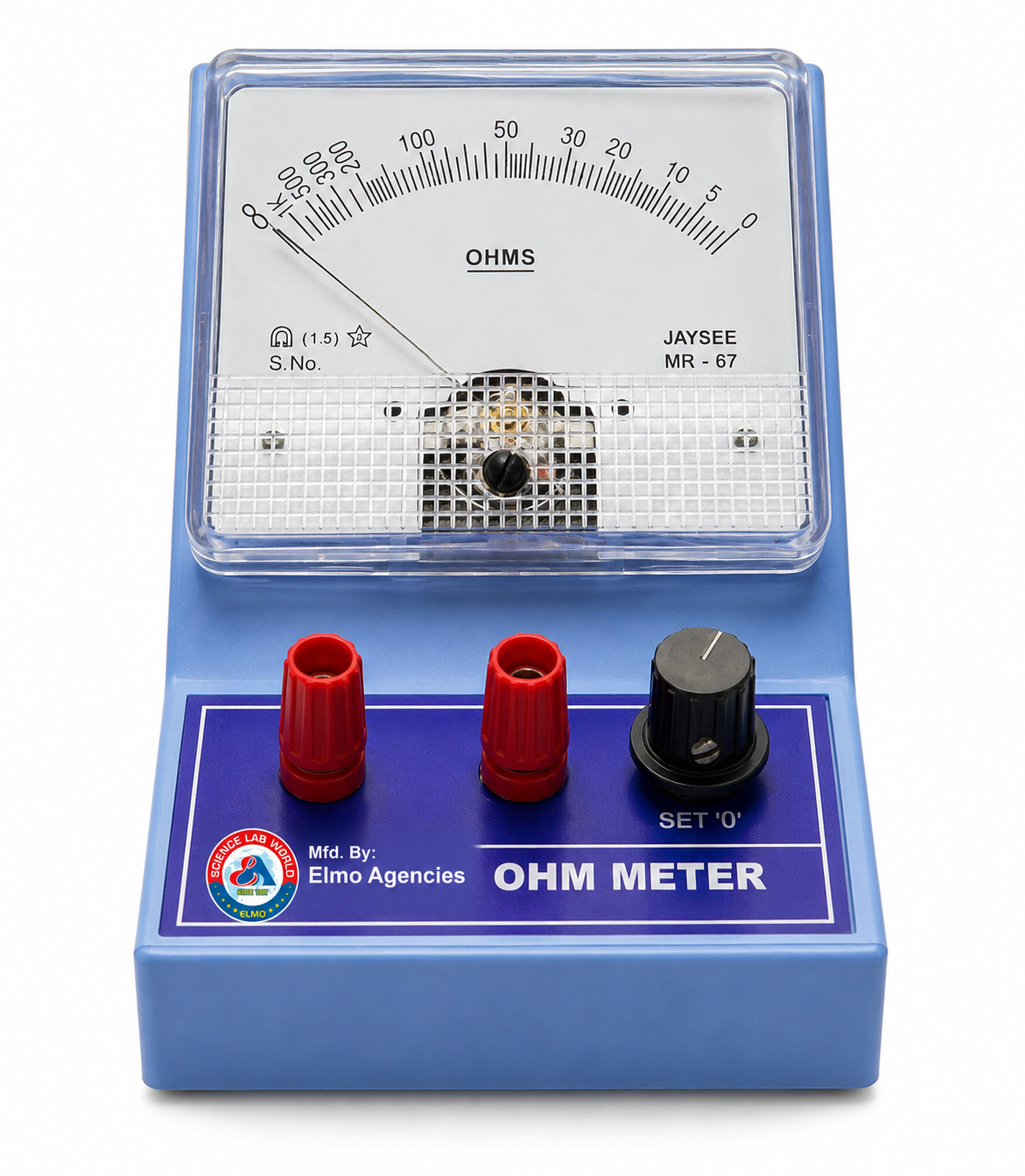

Ohmmeter Series Type

An Ohmmeter is an electrical measuring instrument used to measure resistance in ohms (Ω). Electrical resistance indicates how strongly a component or conductor opposes the flow of electric current. Manufactured by Elmo Agencies, a trusted scientific manufacturer in Ambala, Ohmmeters are commonly used in electrical and electronics work to check resistance values and assess circuit continuity.

An ohmmeter can be used to measure the resistance of components such as resistors, wires, and cables. Depending on the instrument and application, resistance measurement can also assist in checking continuity between points in an electrical circuit. The measured resistance is displayed using the meter’s designated scale or digital display, depending on the type of ohmmeter.

When using an ohmmeter, it is important to take certain precautions to avoid damaging the component being measured or the meter itself. For example, the circuit being measured should be turned off and disconnected from any power source to avoid the risk of electric shock. The meter’s probes should be touched to the correct points in the circuit, and the correct range should be selected on the meter to ensure an accurate measurement.

Applications

An Ohmmeter can be used for:

• Measuring resistance of electrical components
• Checking resistance of wires and cables
• Testing circuit continuity
• Electrical and electronics laboratory experiments
• Troubleshooting electrical circuits
• Technical and vocational training

Important Precautions

• Switch off and disconnect the circuit before measuring resistance.
• Select an appropriate resistance range when using a manual-range meter.
• Connect the probes correctly across the component being tested.
• Avoid applying external voltage during resistance measurement.

Conclusion

The Ohmmeter is a useful instrument for measuring electrical resistance and checking continuity in electrical and electronic systems. Its applications range from laboratory experiments and technical training to electrical testing and circuit troubleshooting.
