Optical Bench Ordinary

Optical Bench Ordinary | Precision Optics Laboratory Apparatus

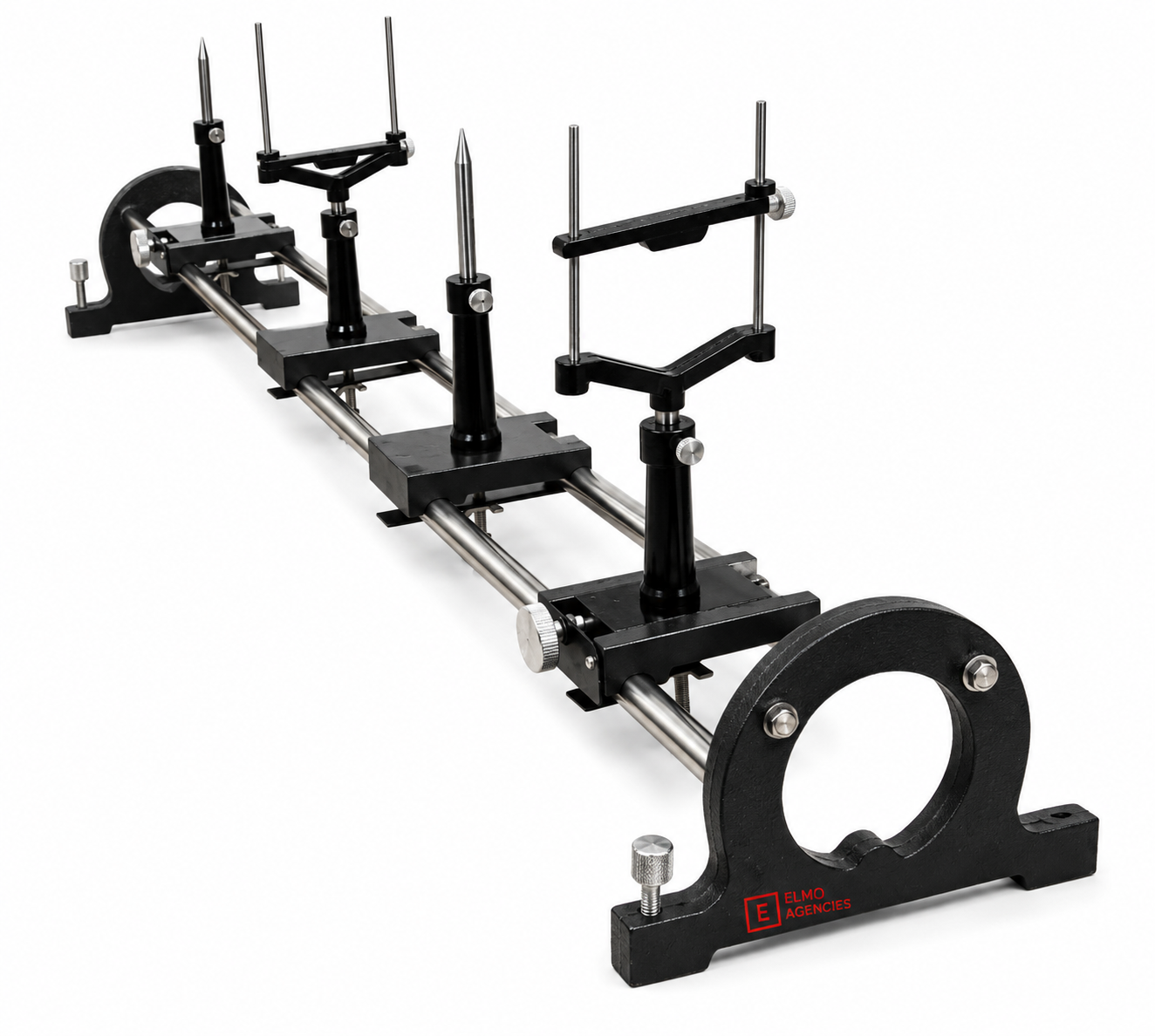

The Optical Bench Ordinary by ELMO Agencies is a precision-engineered laboratory apparatus designed for conducting a wide range of optics experiments in schools, colleges, universities, and research laboratories. Built with two sturdy guide rods supported by heavy-duty metal stands with levelling screws, it provides excellent stability and accurate alignment for lenses, mirrors, prisms, screens, and light sources during practical demonstrations.

Its precision dual-unit measurement scale, four smooth-sliding riders, and durable construction make it an essential teaching aid for studying image formation, reflection, refraction, and other fundamental principles of geometrical optics. With years of expertise in scientific laboratory equipment manufacturing in Ambala, ELMO Agencies manufactures dependable laboratory instruments that support practical science education across India.

What Is an Optical Bench Ordinary?

An Optical Bench Ordinary is a laboratory instrument used to position and align optical components along a common optical axis. It allows students and educators to accurately place lenses, mirrors, prisms, and screens while measuring the distance between components with precision.

The double-rod design provides smooth movement of accessories while maintaining proper alignment, making it ideal for classroom demonstrations and laboratory practicals involving light and optics.

Working Principle

The Optical Bench Ordinary works by allowing optical components to slide precisely along calibrated guide rods.

• Lenses, mirrors, prisms, and screens are mounted on movable riders.

• A precision dual-unit graduated scale helps measure exact distances between components.

• Two riders feature slow-motion lateral adjustment for fine optical alignment.

• Heavy-duty metal stands with levelling screws keep the bench stable throughout the experiment.

This arrangement enables accurate observation of image formation, reflection, refraction, and other optical phenomena.

Product Specifications

Educational Applications

Image Formation Studies

Observe real and virtual images formed by convex and concave lenses.

Reflection Experiments

Verify the laws of reflection using plane and curved mirrors.

Refraction Experiments

Study the bending of light through prisms, lenses, and glass slabs.

Focal Length Determination

Measure the focal lengths of convex lenses and concave mirrors accurately.

Refractive Index Measurement

Perform experiments using Snell’s Law and optical prisms.

STEM Learning

Encourages hands-on understanding of geometrical optics through practical demonstrations.

Key Features

• Double-rod construction for stable optical alignment

• Precision dual-unit graduated measurement scale

• Four smooth-sliding riders for mounting optical accessories

• Two riders with slow-motion adjustment for accurate positioning

• Heavy-duty metal stands with levelling screws

• Durable laboratory-grade construction

• Suitable for schools, colleges, engineering institutes, and research laboratories

• Supports curriculum-based optics practicals

Common Experiments Performed

• Determination of focal length of convex lenses

• Determination of focal length of concave mirrors

• Verification of the lens formula

• Reflection and refraction experiments

• Prism deviation studies

• Refractive index measurement

• Total Internal Reflection experiments

• Image formation investigations

Why Choose ELMO Agencies?

ELMO Agencies combines precision engineering with practical classroom requirements to manufacture laboratory equipment that delivers consistent performance. Our experience in laboratory equipment manufacturing in Ambala enables us to produce optical instruments that meet the expectations of educators, laboratory professionals, and research institutions.

Every Optical Bench Ordinary is manufactured using premium-grade materials, precision machining, and strict quality control to ensure smooth rider movement, accurate alignment, and long-lasting durability. Today, ELMO Agencies is recognized as a Scientific Instrument Manufacturer in India, supplying quality laboratory equipment to schools, colleges, engineering institutes, and distributors across the country.

Frequently Asked Questions (FAQ)

Q1: What is the Optical Bench Ordinary used for?

It is used for conducting optics experiments involving lenses, mirrors, prisms, reflection, refraction, and image formation.

Q2: What components can be mounted on the bench?

Lenses, mirrors, prisms, light sources, screens, and various optical accessories can be mounted on the sliding riders.

Q3: What is the advantage of the double-rod design?

The double-rod design provides better stability, smoother rider movement, and accurate alignment of optical components during experiments.

Q4: How many riders does this optical bench have?

The Optical Bench Ordinary includes four sliding riders, with two featuring slow-motion lateral adjustment for precise positioning.

Q5: Is it suitable for educational laboratories?

Yes, it is widely used in schools, colleges, universities, engineering institutes, and physics laboratories.

Q6: Who manufactures the Optical Bench Ordinary?

ELMO Agencies, a Scientific Instrument Manufacturer in Ambala, manufactures and supplies high-quality optical laboratory equipment across India.

Conclusion

The Optical Bench Ordinary by ELMO Agencies is a reliable laboratory apparatus for studying the behaviour of light through practical experimentation. Its double-rod construction, precision measurement scale, smooth sliding riders, and durable support system make it an excellent choice for educational institutions and research laboratories. Backed by years of expertise in scientific laboratory equipment manufacturing in Ambala and a strong reputation in Scientific Instruments Ambala, ELMO Agencies continues to deliver dependable laboratory solutions for modern science education.
