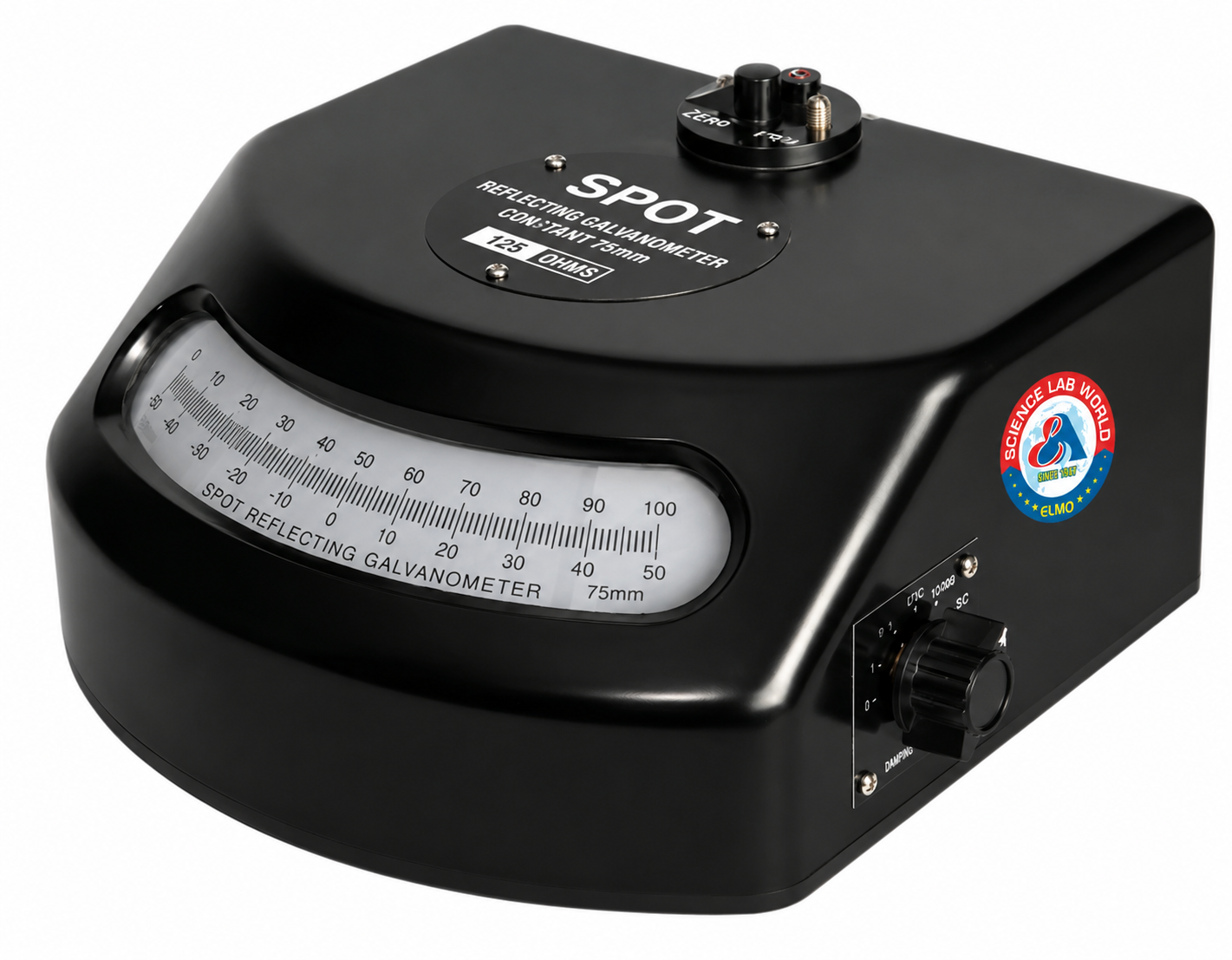

Spot Reflecting Galvanometer

Working Principle

The instrument generally consists of a coil suspended in a magnetic field. When current passes through the coil, the interaction between the magnetic field and the current produces a torque, causing the coil to rotate.

A mirror attached to the coil reflects a beam of light onto a graduated scale. Even a small movement of the coil produces a noticeable displacement of the light spot, making small changes in current easier to detect.

Main Components

• Suspended coil
• Magnetic field system
• Attached mirror
• Light source
• Graduated scale
• Zeroing mechanism

Advantages

• High sensitivity for detecting small currents
• Light-spot indication makes small deflections easier to observe
• Reduced parallax effects compared with conventional pointer readings
• Suitable for precise laboratory measurements
• Useful for observing small changes in electrical current

Applications

The Spot Reflecting Galvanometer can be used for:

• Physics laboratory experiments
• Precision electrical measurements
• Detection of small currents
• Calibration experiments
• Electromagnetism demonstrations
• Scientific and research applications

Historical Importance

Spot reflecting galvanometers played an important role in experimental physics and early electrical research because they allowed scientists to detect very small electrical currents with high sensitivity. Although many modern applications now use electronic and digital measuring instruments, the principle remains important in the history and study of electrical measurement.

Conclusion

The Spot Reflecting Galvanometer provides a sensitive method for detecting small electrical currents through a coil, magnetic field, mirror, and reflected light spot. Its high sensitivity and visual indication make it a valuable instrument for physics education, laboratory experiments, and precision electrical studies.
