Steam Engine Model with Boiler – Working Demonstration Apparatus

The Steam Engine Model with Boiler is a working educational model designed to demonstrate the basic operation of a commercial steam engine. By Elmo Agencies, a scientific manufacturer in Ambala, it provides students and enthusiasts with a practical way to observe steam generation, pressure, and mechanical operation.

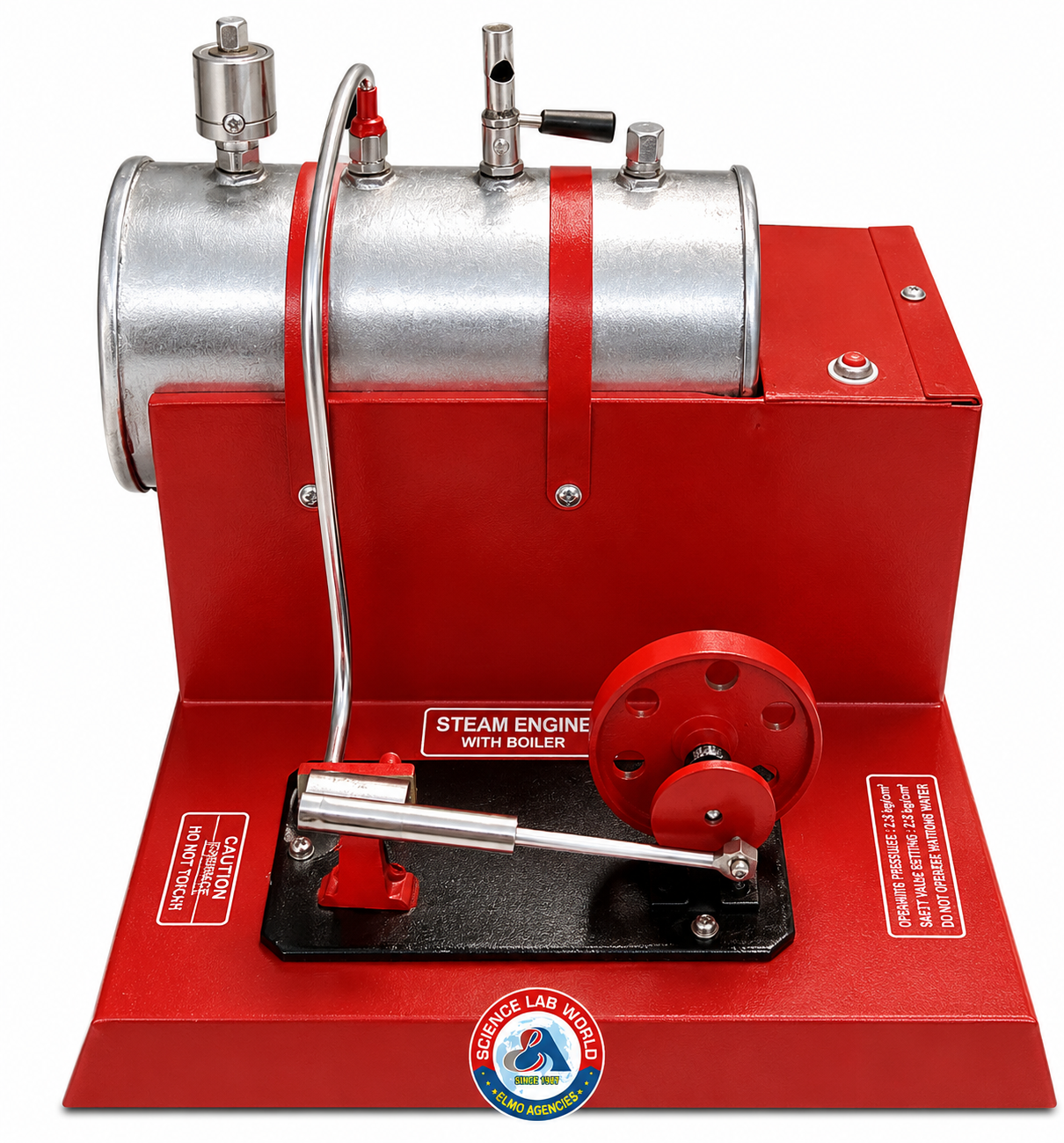

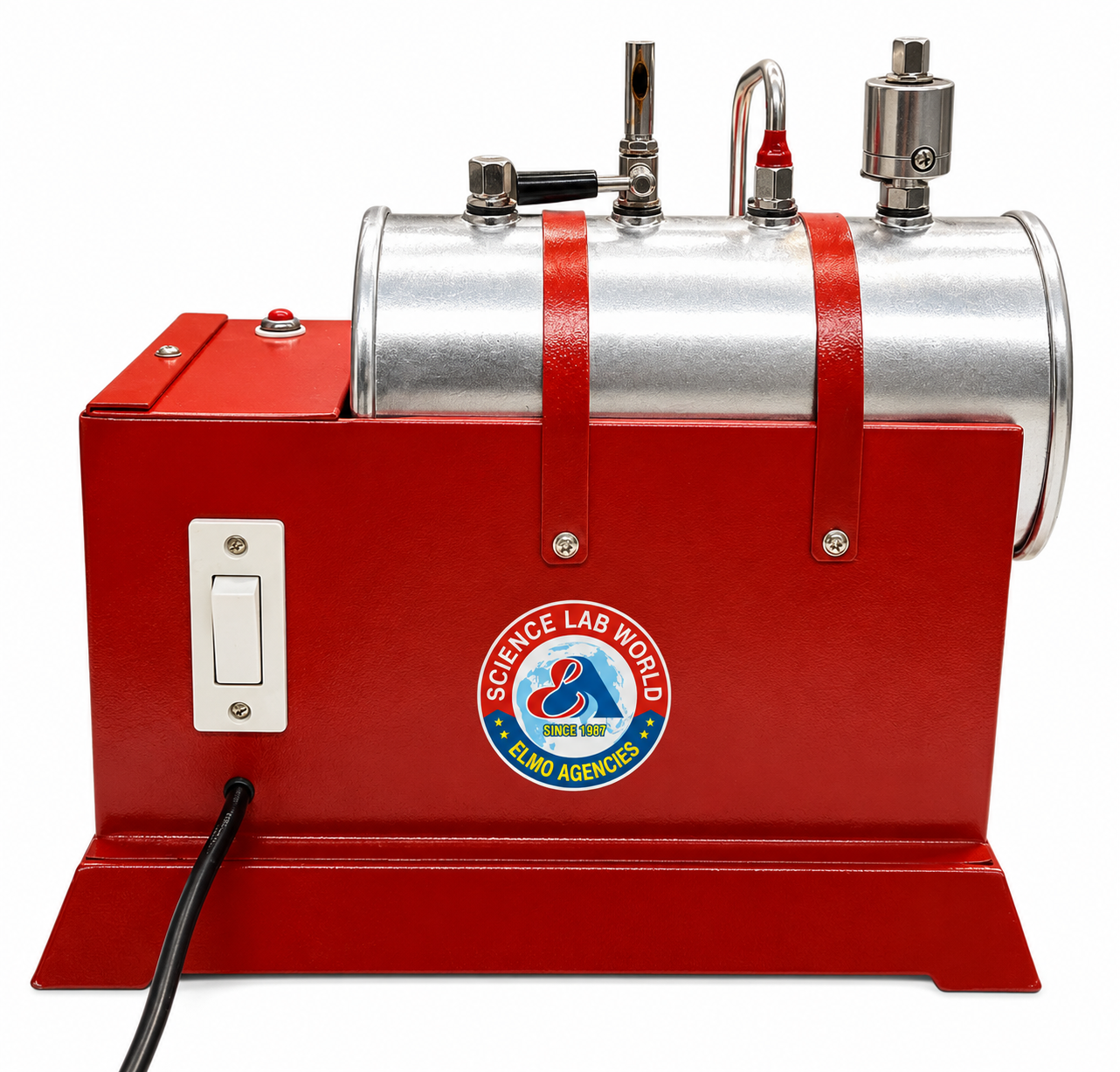

The model features an extra-large horizontal boiler fitted with a whistle, safety valve, and steam gauge. The brass boiler is securely mounted within a steel housing and includes a chimney, providing a stable and durable arrangement for demonstrations.

An inspection window allows the water level inside the boiler to be observed, while the complete setup is mounted on a sturdy metal base to provide stability during operation.

Two versions of the steam engine model are available:

1. One version operates using a 220V AC, 50 Hz power supply.
2. Another version allows the water to be heated using dry fuel as an alternative heating method.

The model also demonstrates the release of exhaust steam into the air, helping students understand some practical aspects of steam-powered systems. Continuous steam discharge results in water consumption, illustrating why steam-powered locomotives required regular water replenishment. The familiar “choo-choo” sound associated with steam locomotives is produced by the controlled release of pressurised steam.

The Steam Engine Model with Boiler provides an engaging hands-on learning experience for understanding steam generation, boiler operation, pressure, exhaust steam, and the practical applications of steam power.
