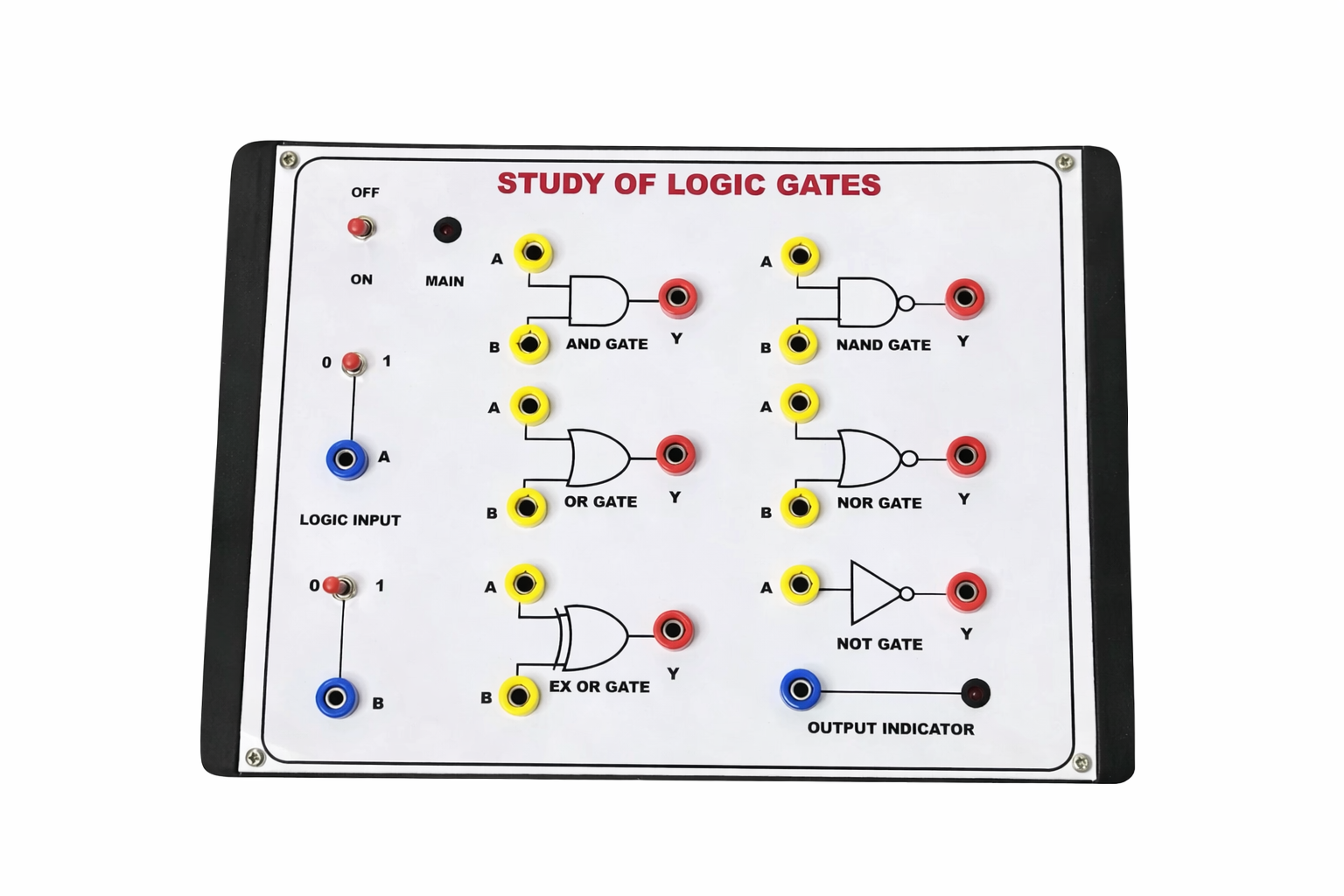

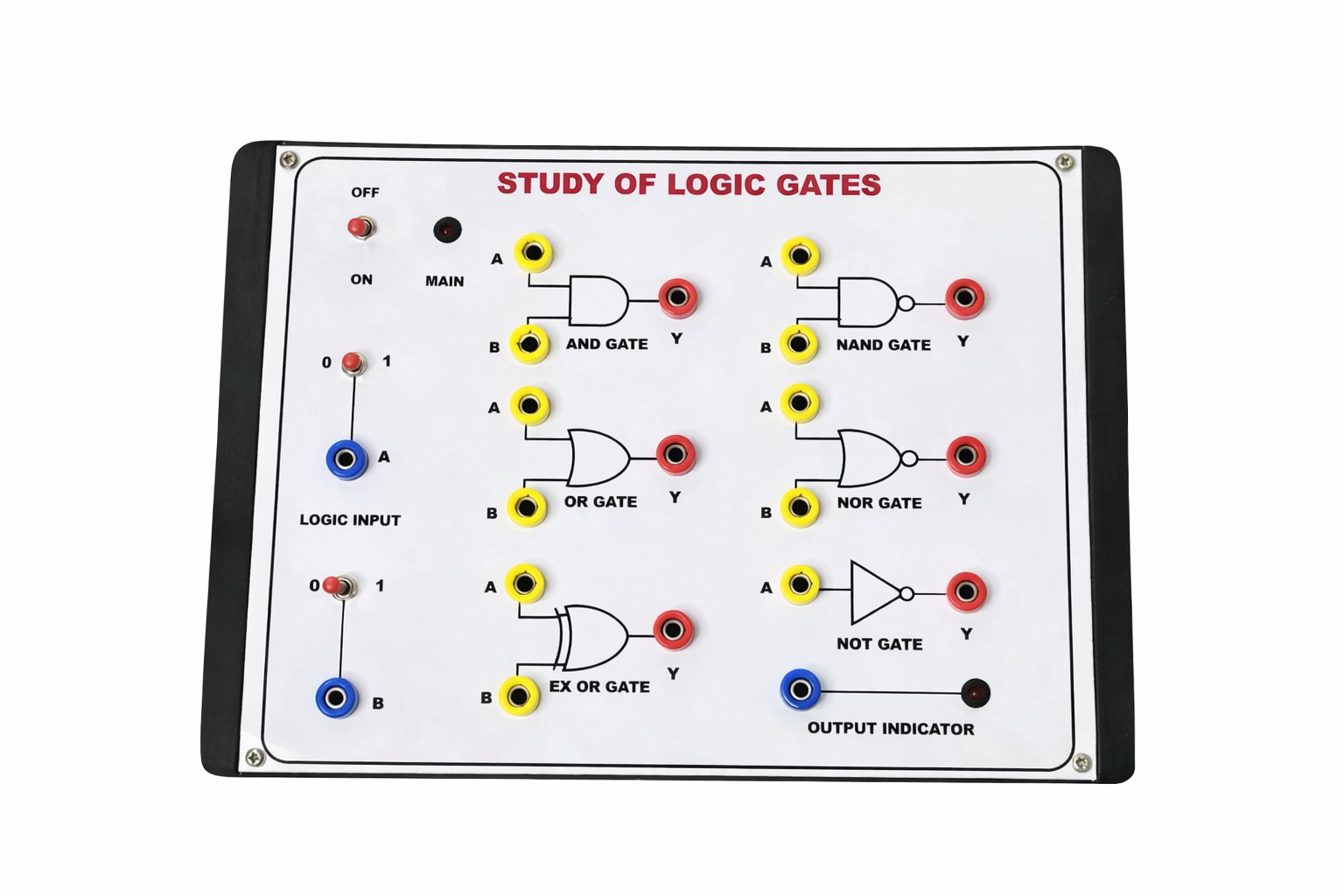

6 in 1 Logic Gate Apparatus
- Versatile 6-in-1 Logic Gate Apparatus by ELMO
- Features AND, OR, NOT, NAND, XOR, and NOR gates
- Convenient switch for easy switching between gates
- Clear indications for each gate on the front panel
- Manual & Patch Cord Included
₹850.00 ₹2,000.00
- To pick up today
- Free
- More details
- More details
For several years, we have been a respected supplier of the 6-in-1 Logic Gate Apparatus to our extensive customer base. It is meticulously designed using top-quality raw materials and the latest machinery at our facility, in accordance with industry norms and standards. The 6-in-1 Logic Gate Apparatus undergoes rigorous quality testing to ensure that its quality is never compromised at any stage.
Objective :
2 Input IC Basic Logic Gates Apparatus has been designed to verify the truth tables of the following Gates :
- AND Gate (IC 7408)
- OR Gate (IC 7432)
- NOT Gate (IC 7404)
- EX-OR Gate (IC 7486)
- NAND Gate (IC 7400)
- NOR Gate (IC 7402)
- EX-NOR Gate (IC 74266)
Technical Specifications :
Inbuilt Fixed / Variable DC Regulated Power Supply
Output Voltages: 5VDC
ICs & Components Provided
IC
- 7408
- 7432
- 7404
- 7486
- 7400
- 7402
Standard Accessories :
Power chord & Instruction manual
