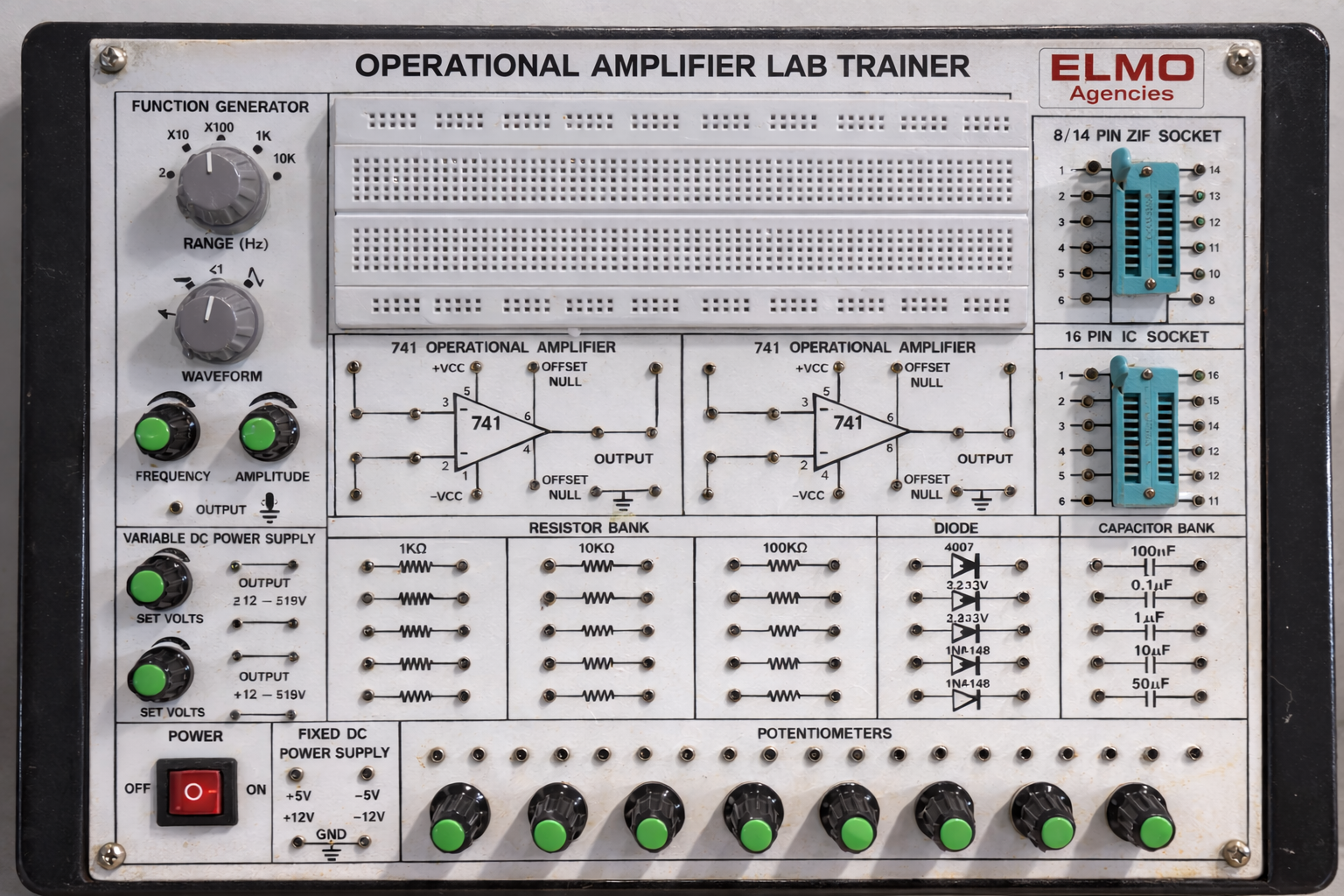

Operational Amplifier Trainer
The Operational Amplifier Trainer includes:
- Fixed and Variable DC Power Supply
- On-board Function Generator
- Zif Sockets and IC 741
- Resistors, Capacitors,Diodes and On-board Potentiometers
₹7,250.00 ₹12,000.00
- To pick up today
- Free
- More details
- More details
OBJECTIVE : Study and Construction of Various Analog Electronics Lab Experiments using an Operational Amplifier Trainer.
TECHNICAL SPECIFICATIONS :
* Fixed DC Power Supply IC Regulated ±5V DC & ±12V/ 250mA.
* Nos. of Variable DC Power Supply IC Regulated 1.2 -10V DC/ 250mA.
* Operated On Mains Power 230V, 50Hz ±10%
* On board Function Generator 100KHz with Sine, Square & Triangular Wave
* On Board Two nos. of Zif Sockets (14 Pin &16 Pins).
* Two Nos. of IC 741 with All pins terminated on 2mm Banana Sockets
* On Board Resistors Bank (1K, 10K & 100K – 5 Each), Capacitor Bank & Diode (4007, 4148 & Zener 3.3V)
* On Board Potentiometer (1K, 10K, 100K & 1M – 2 Nos. Each)
SALIENT FEATURES:
* Designed the Instruments more than 12 Experiments
* Front panel built with high-class insulated printed circuit board sheet with well-printed circuits and symbols.
* Instruction Manual.
* Connections are brought out through 2mm Brass Sockets.
* Patch Cords 2mm.
* The trainer is housed in ABS Plastic cabinet.Size of the trainer set 320m x 250mm.
STANDARD ACCESSORIES :
* 2mm Patchcords.
* User Manual.
LIST OF EXPERIMENTS :
* Inverting Amplifier
* Non – inverting Amplifier
* Buffer
* Comparator
* Adder
* Subtractor
* Square Wave Generator
* Differentiator and its working as High Pass Filter
* Integrator and its working as Low Pass Filter
* Logarithmic Amplifier
* Voltage Controlled Current Source
* Current Controlled Voltage Source & many more
OPTIONAL ACCESSORIES:
* Digital Multimeter
* C.R.O.
