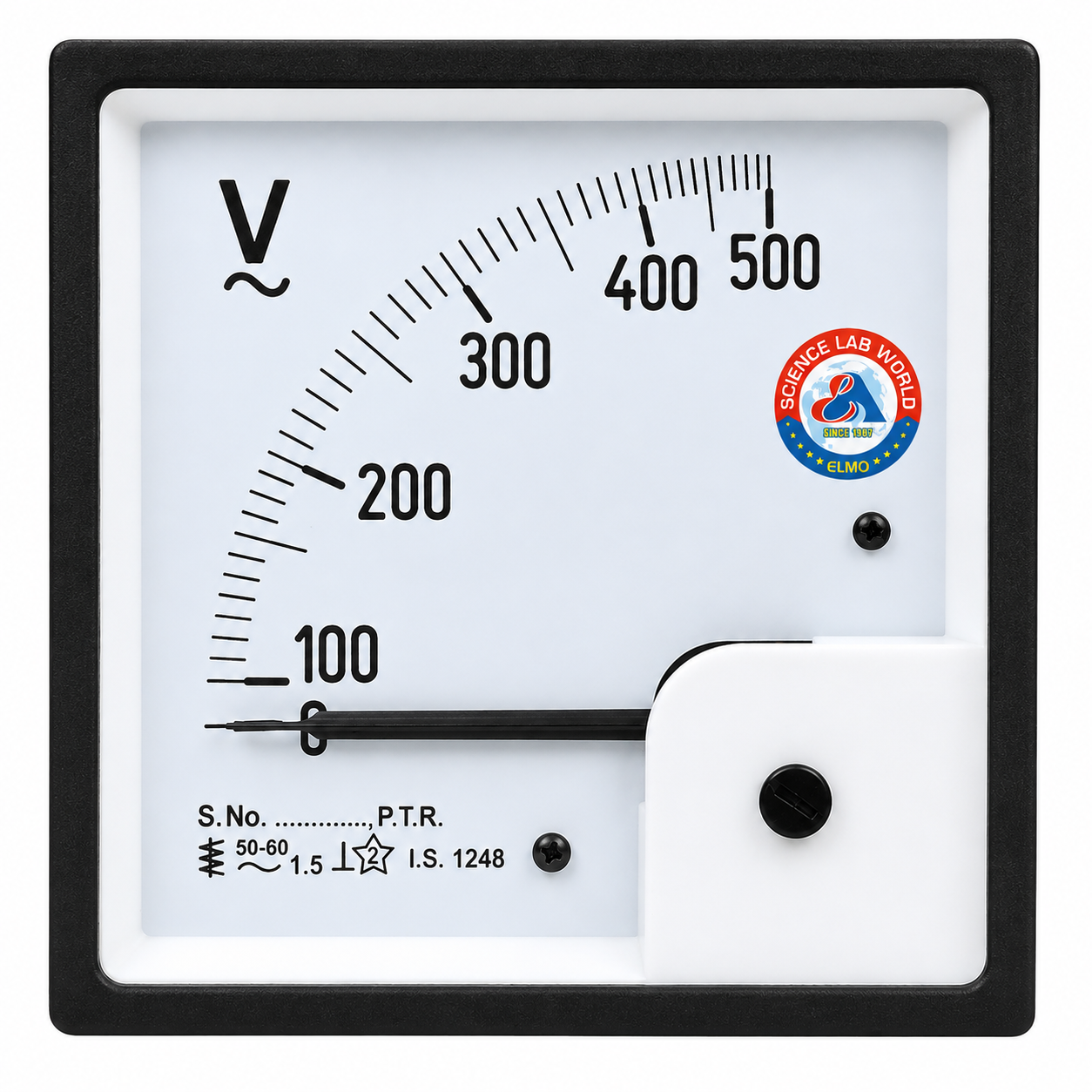

Analog Voltmeter Panel – Moving Iron Voltage Measurement Instrument

The Analog Voltmeter Panel is an electrical measuring instrument used to measure the potential difference between two points in a circuit. It uses an analog pointer and calibrated scale to provide a direct indication of the measured voltage, making it suitable for laboratory, educational, and electrical measurement applications.

The Analog Voltmeter Panel works on the magnetic effect of electric current. Manufactured by Elmo Agencies, a trusted scientific manufacturer in Ambala, it uses an internal coil to produce a magnetic field when voltage is applied. This field interacts with the moving iron element, causing it to move.

Key Features

• Analog pointer-based voltage indication
• Calibrated scale for voltage readings
• Moving iron operating principle
• Direct visual indication of measured voltage
• Suitable for laboratory and educational applications
• Practical for observing voltage variations

Applications

The Analog Voltmeter Panel can be used for:

• Electrical laboratory experiments
• Physics demonstrations
• Voltage measurement in circuits
• Educational and technical training
• Electrical testing
• Laboratory and field applications

Advantages

Moving iron voltmeters are valued for their simple construction, durability, and practical operation. The continuous pointer movement provides a visual indication of voltage changes, which can be useful when observing variations during electrical experiments.

Limitations

The accuracy of moving iron instruments may be affected by factors such as temperature changes and external magnetic fields. For applications requiring higher precision or direct numerical readings, digital voltmeters are commonly used as an alternative.

Conclusion

The Analog Voltmeter Panel offers a straightforward method of measuring voltage. The movement of the iron element is transferred to a pointer, which moves across the calibrated scale and indicates the corresponding voltage value. As the applied voltage changes, the pointer position changes accordingly. Its simple operation makes it suitable for electrical laboratories, educational institutions, testing setups, and practical circuit experiments.
