Digital Zener Diode Apparatus
• Two Digital meters for Observations of Voltage & Current
• One Regulated Power supply of 0-20V/200mA with Coarse Knob
• Zener Diodes placed inside the cabinet for forward & reverse
• Operating Manual & Connecting Leads provided with this Apparatus
₹1,350.00 ₹2,500.00
- To pick up today
- Free
- More details
- More details
The Digital Zener Diode Apparatus is a specialized educational instrument designed to study the voltage-current characteristics of Zener diodes and their applications in electronic circuits. Manufactured and supplied by Elmo Agencies, a trusted scientific instrument manufacturer in Ambala, this apparatus is widely used in engineering colleges, technical institutes, and electronics laboratories for practical experiments involving semiconductor devices and voltage regulation.
A Zener diode is a specially designed semiconductor diode that operates in the reverse breakdown region. Unlike ordinary diodes, it is intended to conduct current when the reverse voltage reaches a specific value known as the Zener voltage. This unique property makes Zener diodes essential components in voltage regulation, reference voltage generation, and overvoltage protection circuits.

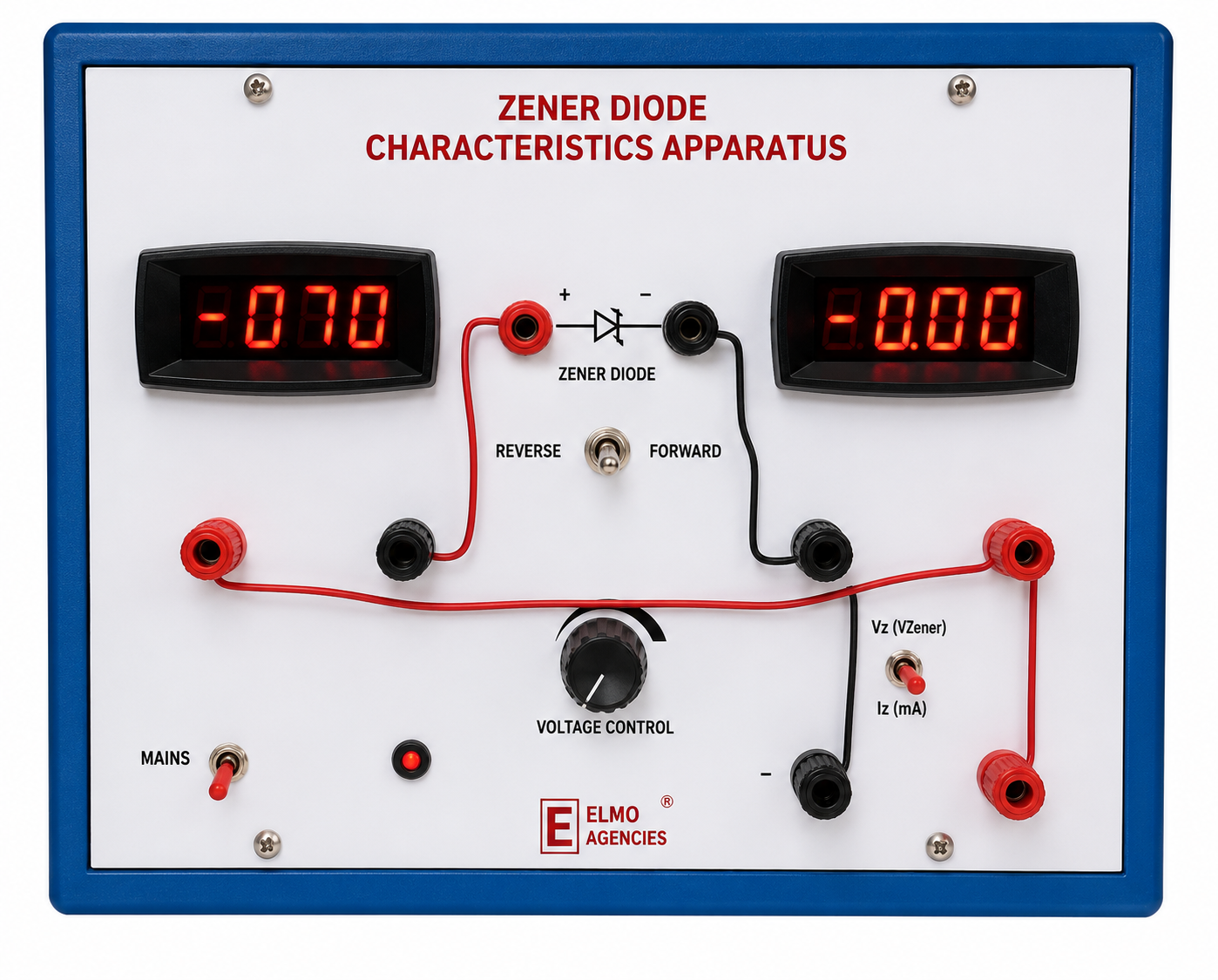

The Zener Diode Characteristics Apparatus enables students to investigate the reverse breakdown behavior of Zener diodes and plot their voltage-current (V-I) characteristics. The setup includes a 20V digital voltmeter, a 20mA digital ammeter, a built-in regulated power supply, and three Zener diodes of different voltage ratings. This allows users to measure the Zener voltage of each diode and compare their performance under different operating conditions.
Using this apparatus, students can perform experiments related to voltage regulation, reverse bias characteristics, and overvoltage protection while gaining practical knowledge of semiconductor devices. Manufactured using quality components by Elmo Labs and offered by Elmo Agencies, a leading manufacturer in Ambala, the Digital Zener Diode Apparatus is designed for accuracy, durability, and long-term laboratory use. It is an essential instrument for electronics education, semiconductor studies, and engineering laboratory experiments.
