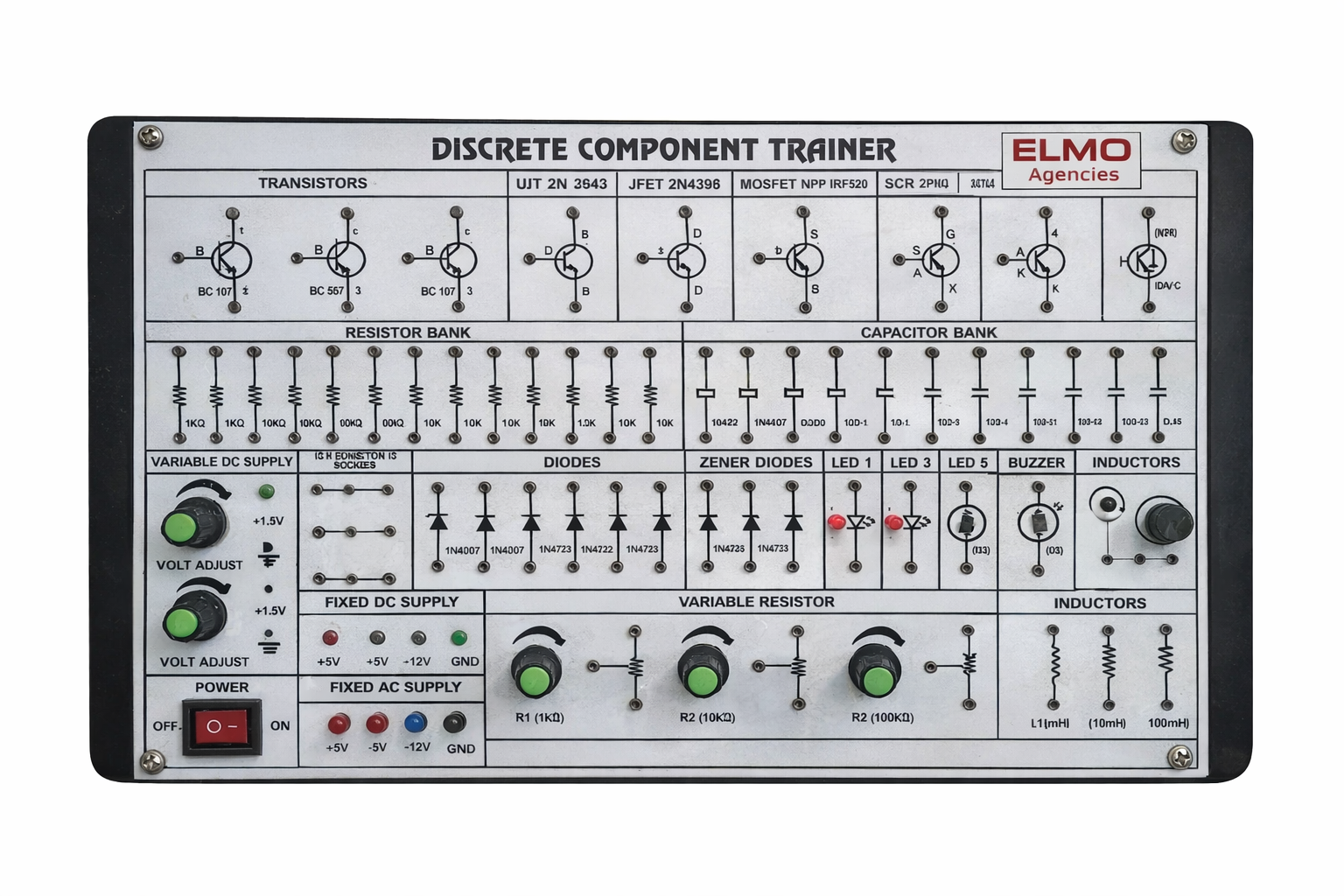

Discrete Component Trainer
Our Discrete Component Trainer is designed to support all your laboratory requirements. Built under expert guidance, it is made to match specific client needs and delivered on time. The product is known for its reliable performance, easy use, and affordable price, making it a practical choice for educational and training purposes.
₹3,000.00 ₹5,000.00
- To pick up today
- Free
- More details
- More details
OBJECTIVE: Study and Construction of Various Analog Electronics Lab Experiments
TECHNICAL SPECIFICATIONS :
* Fixed DC Power Supply IC Regulated +5V DC & ±12V/, 250mA.
* Variable DC Power Supply IC Regulated 0-5V DC & 0-12V/, 250mA.
* AC Power Supply of 15-0-15V AC/ 250mA.
* Operated On Mains Power 230v, 50hz +10%
*· Variable Resistors (1K, 10K & 100K) are given on Board.
* 3 Pairs of connected 2mm sockets
* Rectifier Diode (4 Nos. Diode 4007, OA79 Germanium Diode, Zener Diode (3 Nos.of 5.1V, 8.2V & 12V)
* Different values Resistances, Capacitors, Inductors (2 Nos. of 10mH)
* DIAC Db33, SCR 2P4M, TRIAC Bt136, MOSFET IRF540, UJT 2N2646, JFET 2N4393, SL100 and SK100 pair,
LDR, Thermistor, Buzzer (1 each) & LED’s (2 Nos. Red & Green)
· 1 Buzzer.
SALIENT FEATURES:
* Front panel built with high-class insulated printed circuit board sheet with well-printed circuits and symbols.
* Instruction Manual.
* Connections are brought out through 2mm Brass Sockets.
* Patch Cords 2mm.
* The trainer is housed in ABS Plastic cabinet.*
* Size of the trainer set 12”x8”
STANDARD ACCESSORIES :
* User Manual
* Patchcords
List of Experiments that can be done using our Discrete Component Trainer :
1. PN Junction Diode V-I Characteristics
2. Zener Diode V-I Characteristics
3. Voltage Stabilization of Zener Diode
4. LED Characteristics
5. Resistance in Series & Parallel
6. Charging & Dischrging of Condensor
7. LCR Resosnace Circuit
8. Clipping & Clamping
9. Half Wave, Full Wave & Bridge Rectifier
10. Common Base Transistor Amplifier
11. Common Emitter Transistor Amplifier
12. Common Collector Transistor Amplifier
13. RC Coupled Amplifier
14. Basic Logic Gates
15. RC Passive Filter Circuits & many more …
