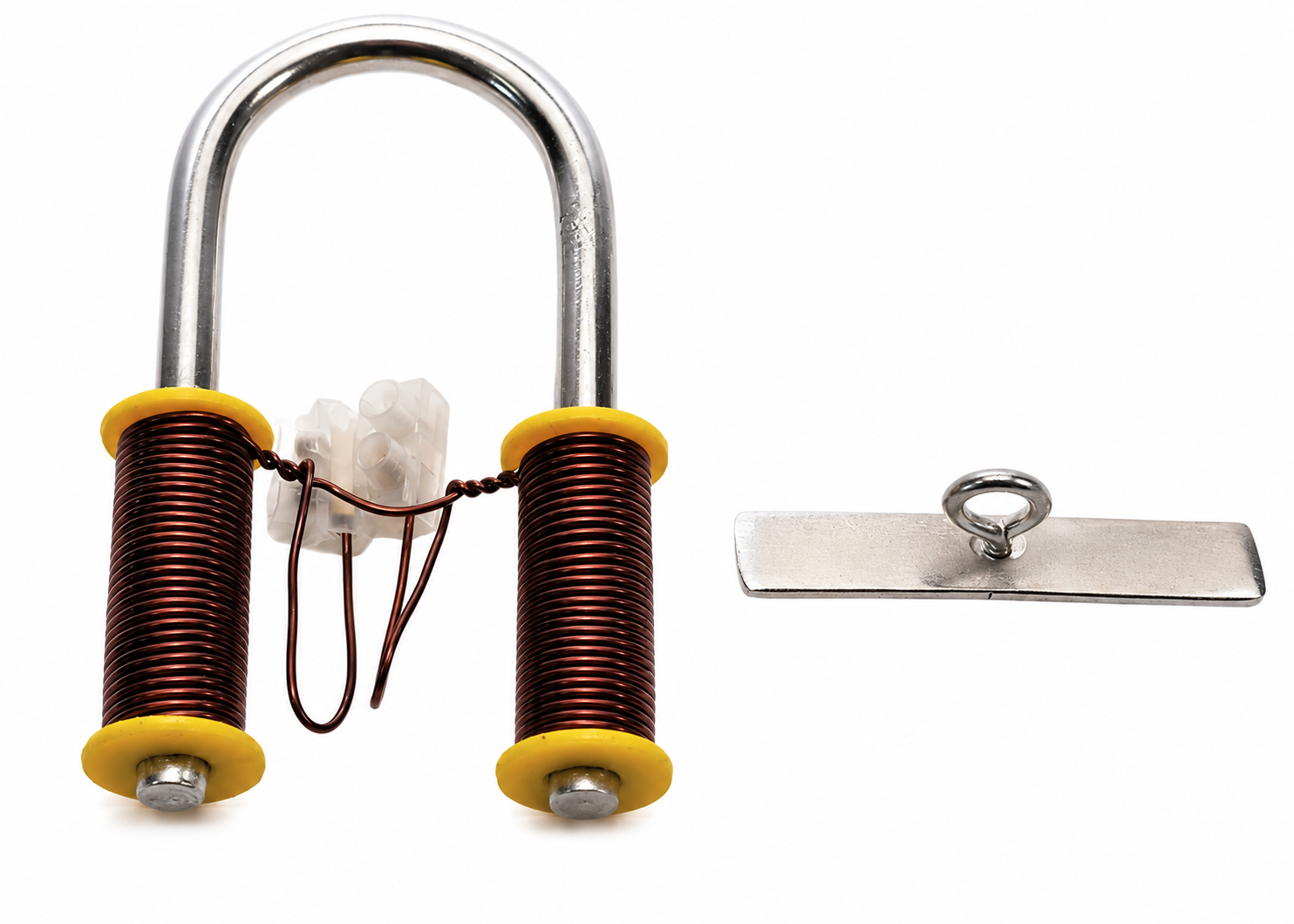

Electromagnet ‘U’ shape
- Electromagnet comes as two coils wrapped around a U-shaped metal frame with an attached armature
- Connect to a power supply at 4-6V and start magnetizing
- A great tool for teaching electromagnetism in the classroom
- It can be used to pick up metal objects, filter magnetics, and build pendulums
Price range: ₹130.00 through ₹160.00
- To pick up today
- Free
- More details
- More details
Electromagnet ‘U’ Shape
The Electromagnet ‘U’ Shape is an educational electromagnet designed to demonstrate how an electric current can produce a magnetic field. Manufactured by Elmo Agencies, a manufacturer in Ambala, it suits physics laboratories, classroom demonstrations, and practical experiments involving electromagnetism.
A U-shaped electromagnet generally consists of a ferromagnetic core wound with insulated wire. When electric current passes through the coil, a magnetic field is produced around the winding, magnetizing the core.
The U-shaped design brings the two magnetic poles closer together, allowing the magnetic effect to be demonstrated clearly in suitable experiments.
Working Principle of Electromagnet ‘U’ Shape
The Electromagnet operates on the magnetic effect of electric current. When the coil is connected to an appropriate power source, current flows through the winding and produces a magnetic field. The magnetic field magnetizes the core and creates identifiable magnetic poles.
When the electrical supply is removed, the magnetic effect generally decreases, depending on the core material and its magnetic properties.
Key Features
- U-shaped magnetic core
- Insulated wire winding
- Demonstrates the magnetic effect of electric current
- Suitable for electromagnetism experiments
- Useful for classroom and laboratory demonstrations
- Practical educational physics apparatus
Applications
- Demonstrating electromagnetism
- Studying magnetic fields
- Physics laboratory experiments
- Teaching the magnetic effect of electric current
- Classroom demonstrations
- Science exhibitions and educational projects
Conclusion
The Electromagnet ‘U’ Shape by Elmo Agencies provides a practical way to demonstrate the relationship between electric current and magnetism. Its U-shaped core and coil arrangement make it suitable for physics laboratories, electromagnetism experiments, and educational demonstrations.
- Overview
| Dimensions | 100mm, 75 mm |
|---|
