The Multiple Reflection Model by Elmo Agencies, a trusted scientific manufacturer in Ambala, is a practical educational apparatus designed to demonstrate how multiple images are formed when an object is placed between two plane mirrors inclined at different angles. This hands-on optics model helps students understand reflection, image formation, and the relationship between the angle between mirrors and the number of images produced.

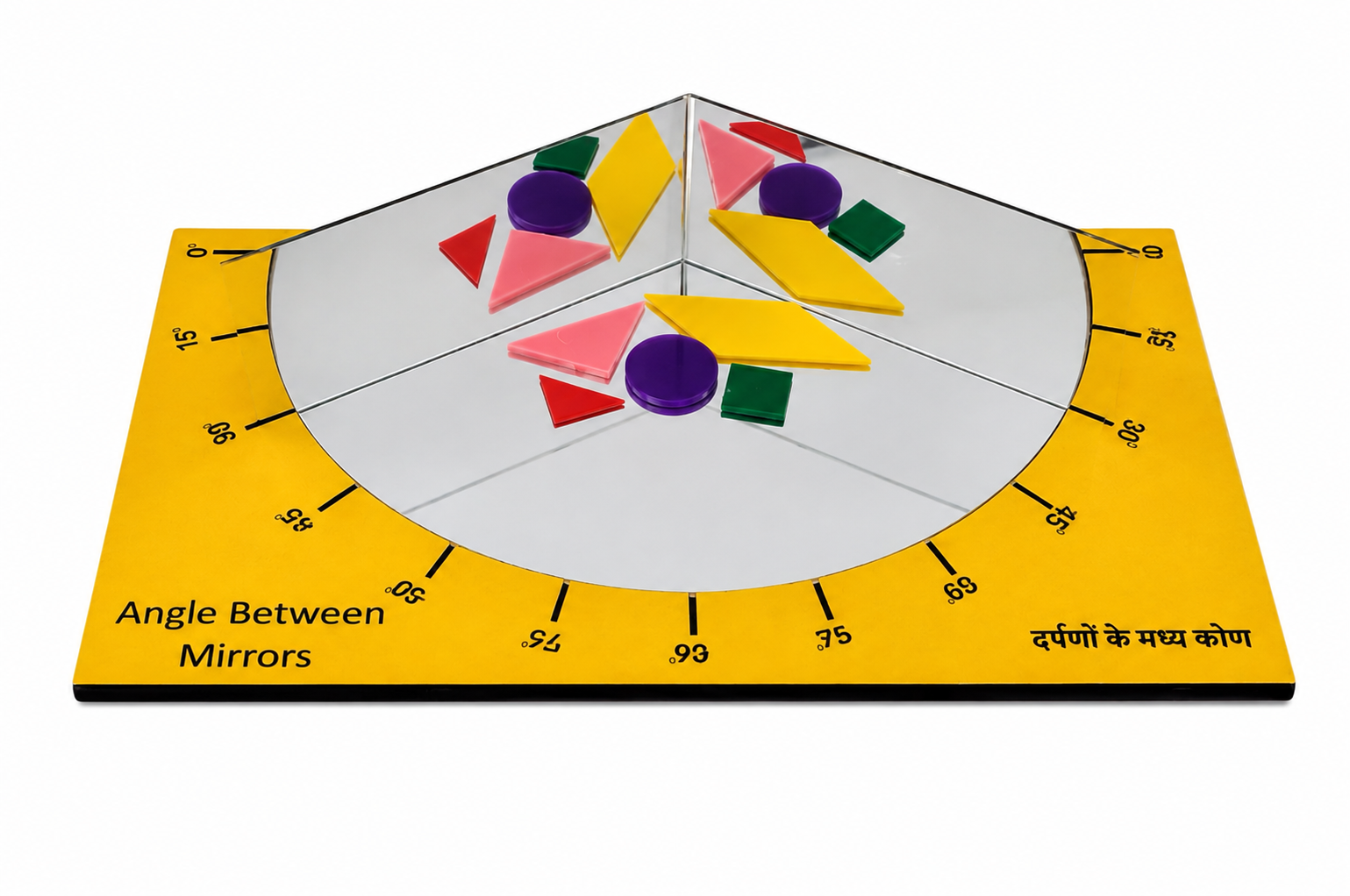

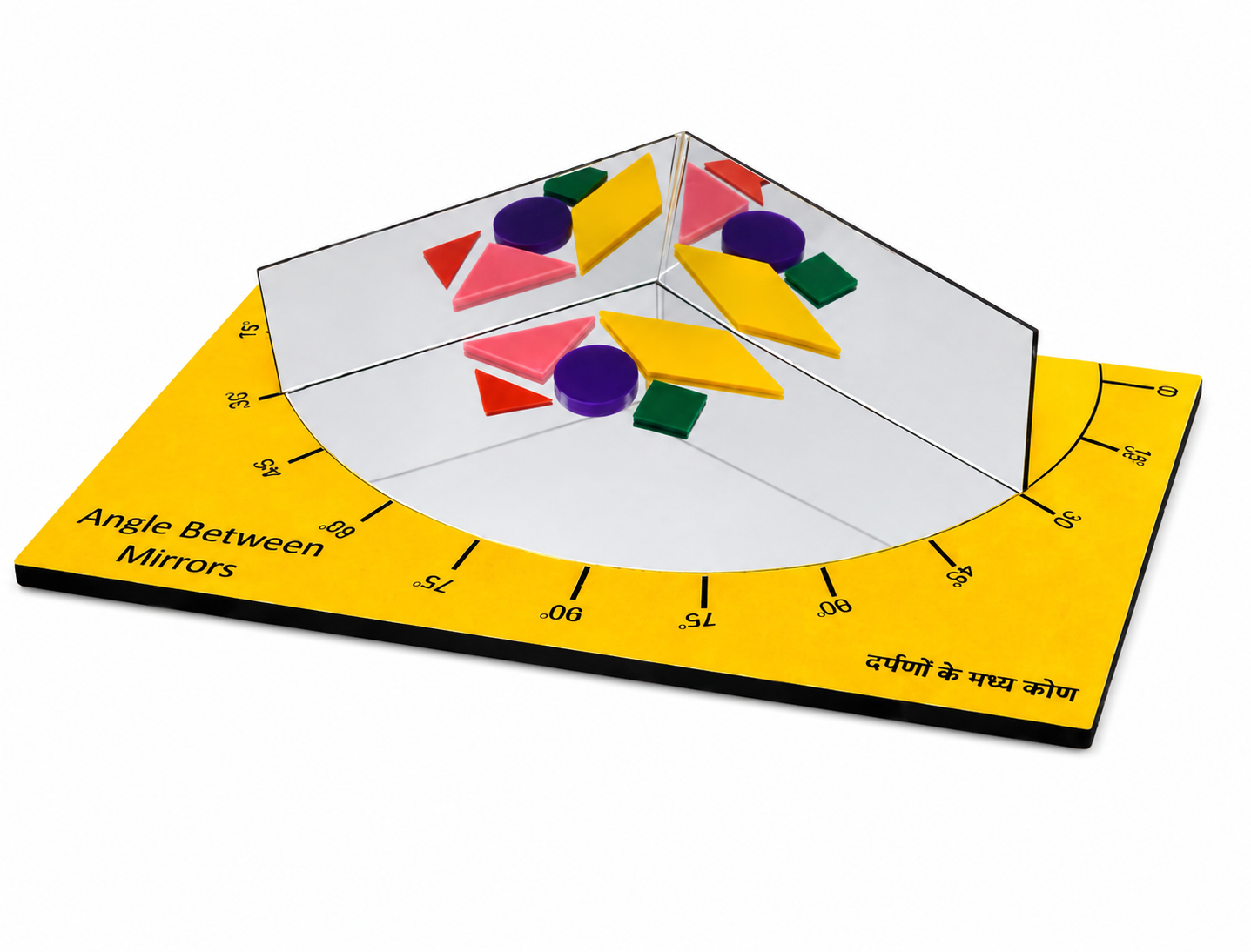

The apparatus consists of two plane mirrors joined along one side so that the angle between them can be adjusted. The mirrors are mounted on a plastic base with a printed protractor, allowing students to set and measure different angles accurately.

When an object is placed between the mirrors, light undergoes repeated reflections between the reflecting surfaces. These successive reflections can produce multiple images of the object.

How Does Multiple Image Formation Work?

The number of images formed depends mainly on the angle between the two plane mirrors. As the angle between the mirrors changes, the number and arrangement of visible images also changes.

This makes the model useful for demonstrating:

• Reflection of light
• Image formation by plane mirrors
• Multiple reflections
• The effect of mirror angle on image formation
• Symmetrical arrangement of images

Kit Includes

• Two plane mirrors
• Mirror size: approximately 6 cm × 15 cm each
• Hinged arrangement for adjusting the mirror angle
• Durable plastic base
• Base size: approximately 33 cm × 18 cm
• Printed protractor for angle measurement
• Ready-to-use classroom demonstration setup

Key Features

• 🪞 Two adjustable plane mirrors for multiple reflection experiments
• 📐 Printed protractor for setting and measuring mirror angles
• 🔄 Hinged design allows easy angle adjustment
• 🔍 Clearly demonstrates multiple image formation
• 🎓 Suitable for optics and physics practical activities
• 🏫 Designed for repeated classroom demonstrations

Educational Applications

Reflection of Light

Students can observe how light reflects from plane mirror surfaces according to the laws of reflection.

Multiple Image Formation

The model clearly demonstrates how repeated reflections between two mirrors can create multiple images of an object.

Angle and Number of Images

By changing the angle between the mirrors, students can investigate how mirror position affects the number of images formed.

Physics and Optics Practical Work

The apparatus is suitable for school and college experiments related to reflection and image formation.

Ideal For

Frequently Asked Questions

What does the Multiple Reflection Model demonstrate?

It demonstrates how multiple images can be formed by repeated reflection between two plane mirrors placed at an angle.

Can the angle between the mirrors be adjusted?

Yes. The mirrors are connected through an adjustable hinged arrangement, allowing different angles to be set using the printed protractor.

Why does changing the mirror angle affect the number of images?

Changing the angle changes the way light is repeatedly reflected between the two mirrors, which affects the number and arrangement of images visible to the observer.

What are the dimensions of the mirrors and base?

Each mirror measures approximately 6 cm × 15 cm, while the plastic base measures approximately 33 cm × 18 cm.

Who supplies the Multiple Reflection Model?

The Multiple Reflection Model is supplied by Elmo Agencies, a scientific manufacturer in Ambala, offering educational science models and laboratory apparatus for schools, colleges, and STEM learning.

Conclusion
