Ohm Meter Shunt Type Analog
- Designed for measuring resistance in electric circuits.
- An analog ohmmeter is designed for measuring resistance in electric circuits.
- It is housed in an indestructible case with a clear front cover.
- The dry battery cell of 1.5V is fixed to stand on the bottom side.
- Range Available – 25, 50, 100, 200, 500 Ohms
₹450.00 ₹1,000.00
- To pick up today
- Free
- More details
- More details
Ohm Meter Shunt Type Analog

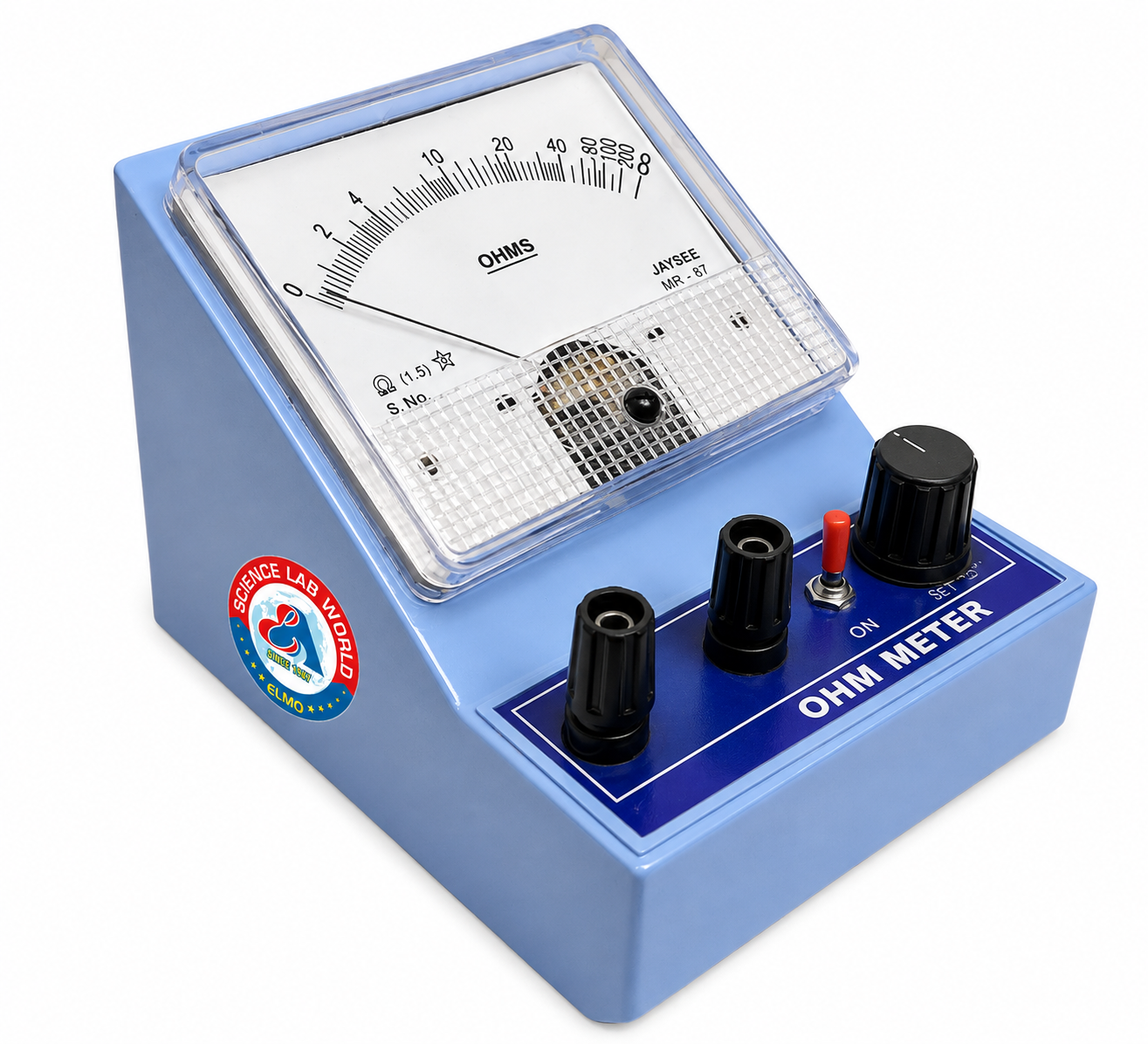

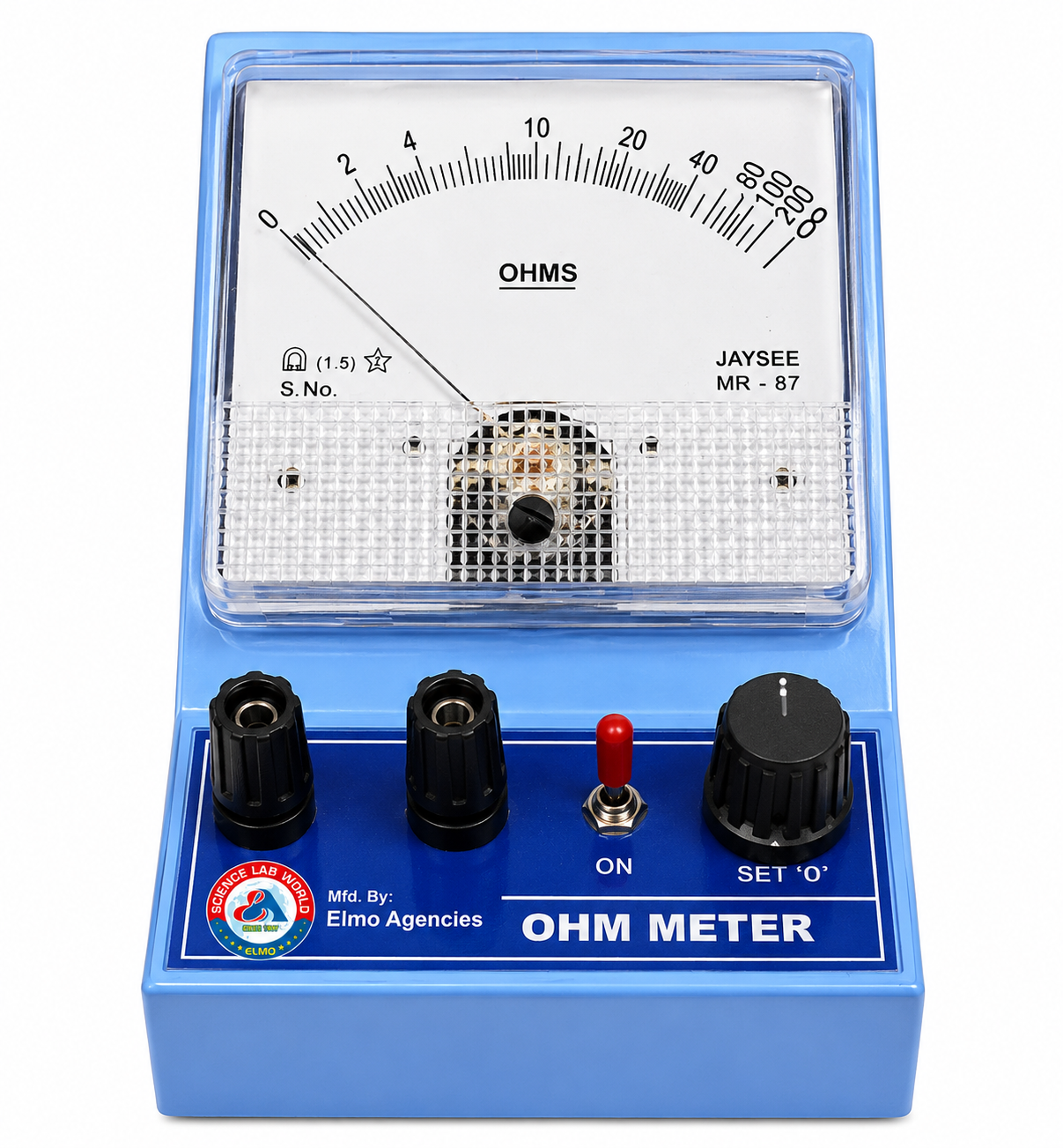

The Ohm Meter Shunt Type Analog is an electrical measuring instrument used to measure resistance in ohms (Ω). Electrical resistance indicates how strongly a component or conductor opposes the flow of electric current. Manufactured by Elmo Agencies, a trusted scientific manufacturer in Ambala, the instrument is suitable for electrical and electronics work involving resistance measurement and circuit continuity checks.
Ohm Meter Shunt Type Analog can be used to measure the resistance of electrical components such as resistors, wires, and cables. It can also assist in checking continuity between different points in an electrical circuit. The measured resistance is indicated through the meter’s analog scale and pointer, allowing users to observe the reading directly.
How an Ohm Meter Shunt Type Analog Is Used
For a proper resistance measurement, the component or circuit being tested should be disconnected from its power source. The meter probes are placed across the component or points being tested, and the appropriate range is selected when required.
Disconnecting the circuit is important because external voltage can affect the resistance reading and may damage the instrument.
Applications
- Measuring resistance of electrical components
- Checking resistance of wires and cables
- Testing circuit continuity
- Electrical and electronics laboratory experiments
- Troubleshooting electrical circuits
- Technical and vocational training
Important Precautions
- Switch off and disconnect the circuit before measuring resistance.
- Select the appropriate resistance range when required.
- Connect the probes correctly across the component being tested.
- Avoid applying external voltage to the instrument during resistance measurement.
Conclusion
The Ohm Meter Shunt Type Analog is a practical instrument for measuring electrical resistance and checking circuit continuity. Its analog display makes it suitable for laboratory experiments, electrical testing, technical training, and practical electronics work.
- Overview
| Brand | ELMO |
|---|---|
| Range | 0-25,50,100,250,500 Ohms |
| Scale length | 97mm |
