Operational Amplifier

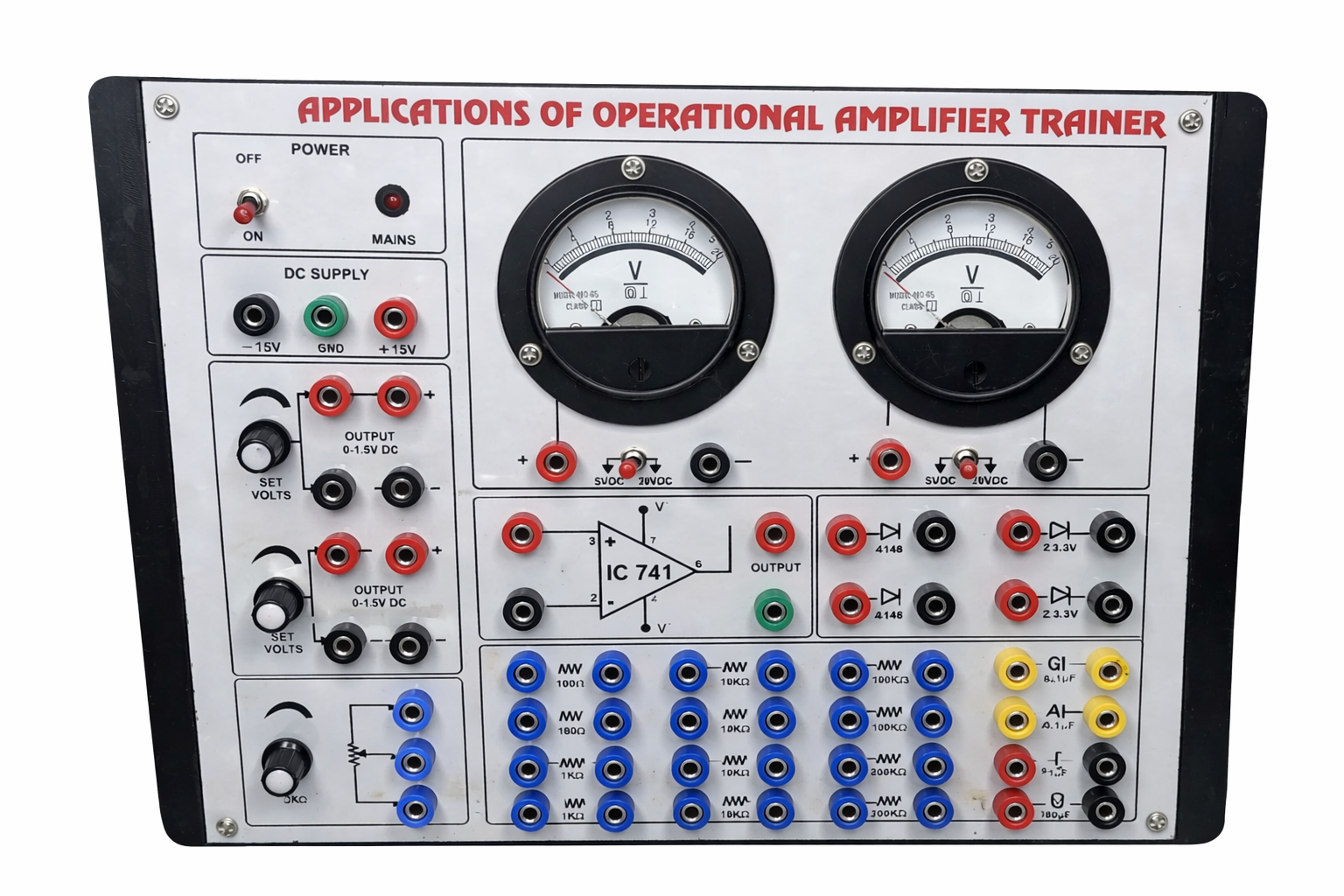

The Operational Amplifier Trainer comes with three built-in DC regulated power supplies. Two supplies provide 0–1.5V at 150 mA, and one provides ±15V DC. It also includes two dual-range moving coil meters for easy measurement. The circuit diagram is printed directly on the front panel, and a variety of resistors and capacitors are already provided, allowing users to perform multiple experiments without additional components.
₹2,950.00 ₹5,000.00
People watching this product now!
- To pick up today
- Free
- More details
- More details
Description
Applications of Op Amp
- Op Amp As Signal Amplifier
- Op Amp As Filters
- Op Amp As Voltage Comparators
- Op Amp As Oscillators
- Op Amp As Differentiator
- Op Amp As Integrator
- Op Amp As Voltage to Current Converter
- Op Amp As Current to Voltage Converter
- Op Amp As Logarithmic Amplifier
- Op Amp As Half Wave Rectifier
- Op Amp As Peak Detector
- Op Amp As Non-Inverting Amplifiers
- Op Amp As Inverting Amplifiers
- Op Amp As Phase Shifter
- Op Amp As Scale Changer
- Op Amp As Adder or Summing Amplifier
Feature of Our Operational Amplifier Trainer
The board consists of the following built-in parts:
- IC Regulated D.C. Power Supply.
- Continuously variable D.C. Power Supply.
- One OP-Amp IC.
- Transistor, 2 diodes, 2 zener diodes, 12 resistors, 4 capacitors.
- Mains ON/OFF switch and fuse are provided.
Specification
