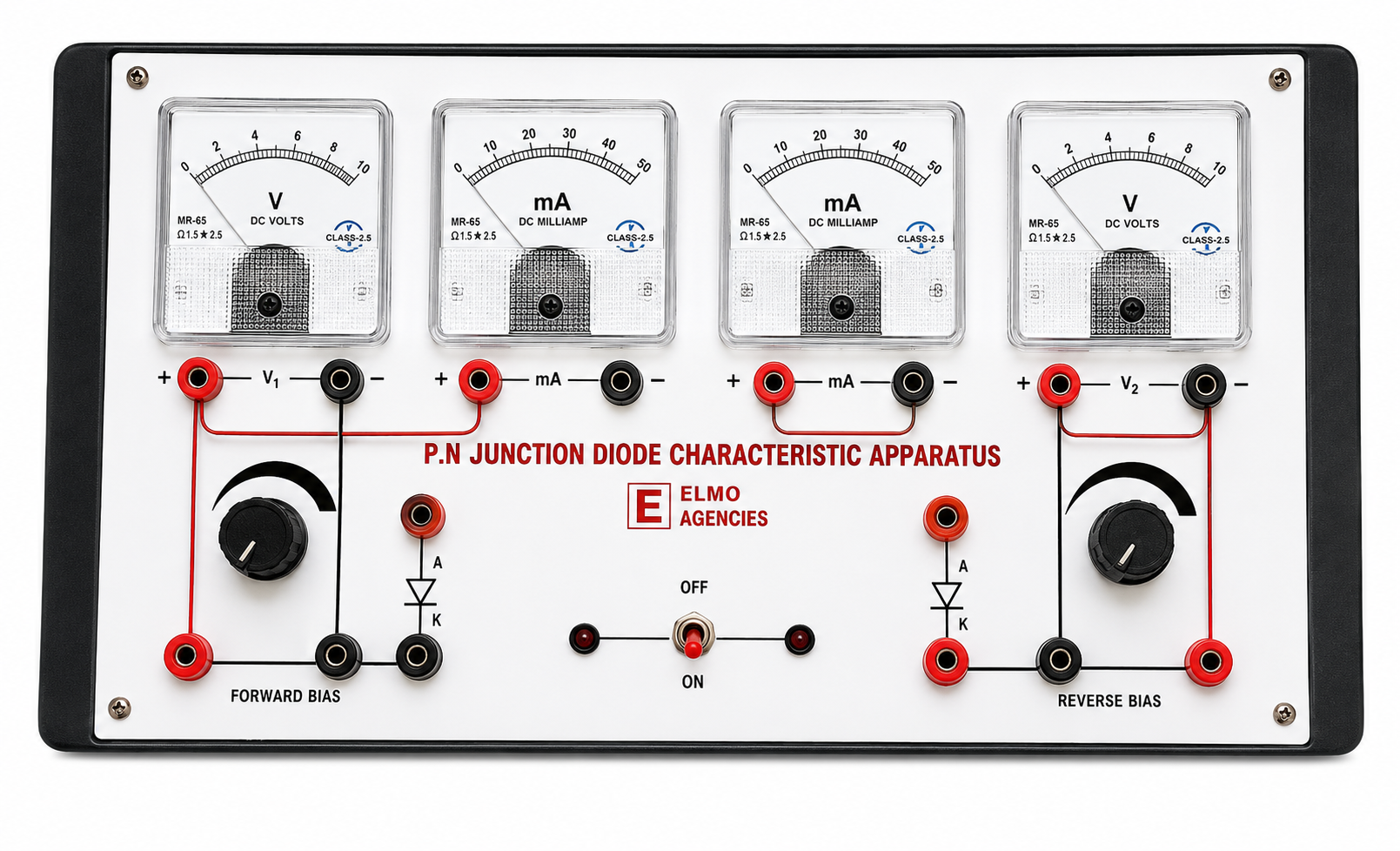

PN Junction Diode Characteristics Apparatus
- Regulated Power Supply of 1V 10mA and 30V 100uA
- DC voltmeter of 1V and 30V
- DC ammeter of 10mA and 100uA
- Manual Included
₹1,550.00 ₹2,900.00
- To pick up today
- Free
- More details
- More details
The PN Junction Diode Apparatus is a precision educational instrument designed to study the electrical characteristics of semiconductor diodes under forward and reverse bias conditions. Manufactured and supplied by Elmo Agencies, a trusted scientific instrument manufacturer in Ambala, this apparatus is widely used in engineering colleges, technical institutes, and electronics laboratories for practical experiments in semiconductor physics and electronic circuit analysis.
A PN Junction Diode is formed by joining p-type and n-type semiconductor materials, creating a depletion region that regulates the flow of electric current. The apparatus enables students to observe the behavior of semiconductor diodes under different biasing conditions and understand concepts such as forward conduction, reverse blocking, depletion region formation, and V-I characteristics. Through hands-on experimentation, learners gain practical knowledge of semiconductor devices and their applications in modern electronics.
The apparatus is equipped with variable DC regulated power supplies of 0-3V/10mA and 0-30V/100µA, allowing accurate forward and reverse bias experiments. It supports both Silicon and Germanium diodes, enabling students to compare their electrical performance and V-I characteristics. The setup also includes a DC voltmeter with ranges of 1V and 30V and a DC ammeter with ranges of 10mA and 100µA, ensuring precise measurement of voltage and current during experimentation.
Using this apparatus, students can plot V-I characteristic curves, study diode resistance, compare the behavior of silicon and germanium diodes, and understand their practical applications in electronic circuits. Manufactured using quality components by Elmo Labs and offered by Elmo Agencies, a leading manufacturer in Ambala, the P-N Junction Diode Apparatus is designed for accuracy, durability, and long-term laboratory use. It is an essential instrument for electronics education, semiconductor studies, and engineering practicals.
- Overview
| Weight | 1kg |
|---|---|
| Dimensions | 42 × 21 × 12 cm |
| Brand | ELMO |
