Thermocouple Electricity Generator

Thermocouple Electricity Generator – Heat to Electricity Demonstration Model

The Thermocouple Electricity Generator by Elmo Agencies, a trusted scientific manufacturer in Ambala, is an educational demonstration model designed to explain the conversion of thermal energy into electrical energy. The model helps students understand the basic principle of thermoelectric generation, where a temperature difference across a thermoelectric element can produce a small electrical voltage.

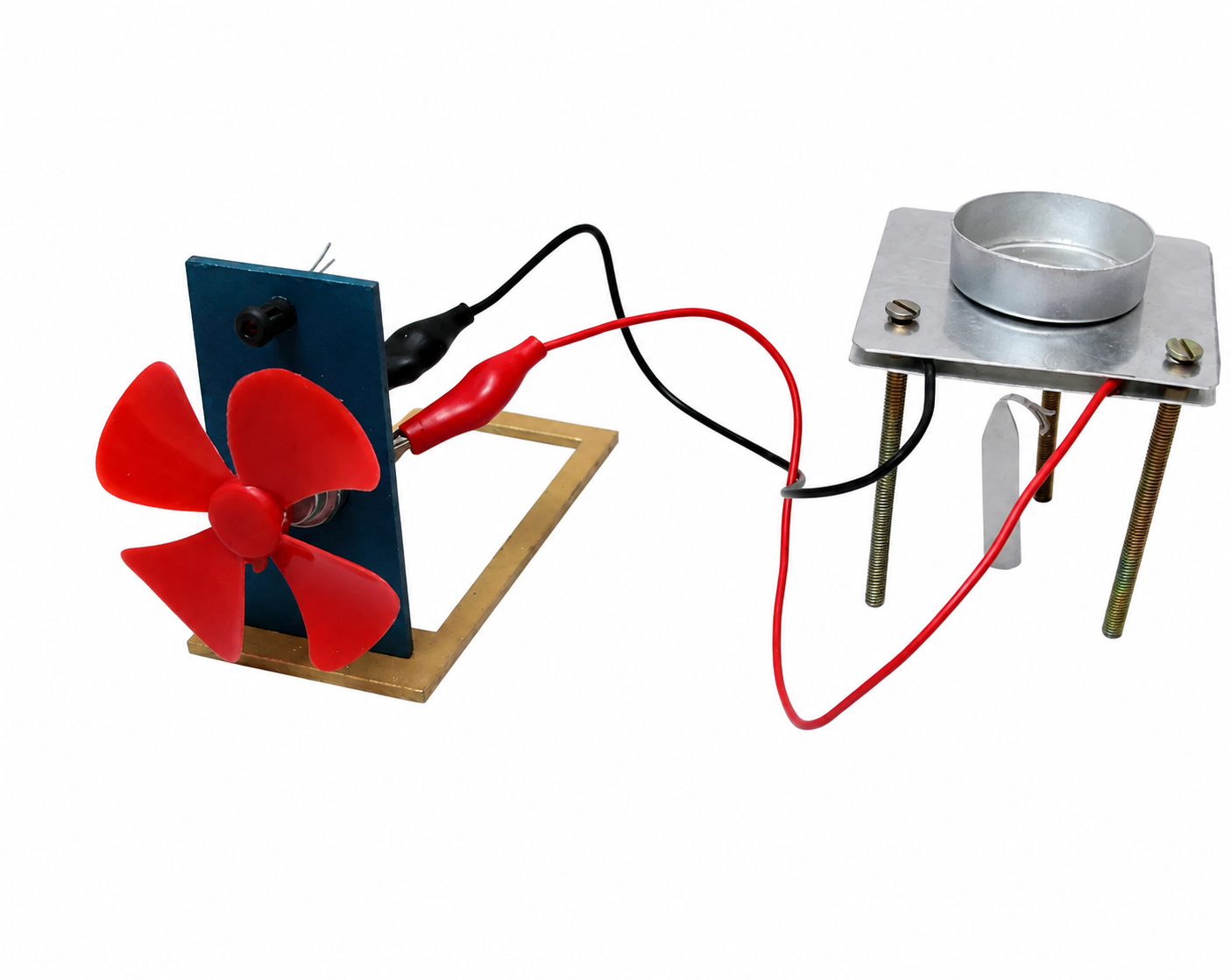

The model uses a thermoelectric arrangement positioned between aluminium plates. When one side of the thermoelectric element is heated while the other side remains at a lower temperature, a temperature difference is created. This temperature difference can generate a small electrical voltage based on the Seebeck effect.

The generated electrical energy can be used to operate small demonstration components such as a 3V DC motor with a fan blade and a 3mm LED, depending on the temperature difference and output generated by the thermoelectric element.

Kit Includes

• Thermoelectric generator arrangement
• Two aluminium plates, approximately 2 × 2 inches
• 3V DC motor with fan blade
• 3mm LED
• 3-inch bolt with 8 nuts
• Two crocodile clips
• MDF support stand
• Approximate model dimensions: 6 × 3 × 3 inches

Key Features

• Demonstrates the conversion of heat energy into electrical energy
• Helps explain the Seebeck effect
• Includes an LED and small DC motor for visual demonstration
• Compact design suitable for classroom and laboratory use
• Mounted on a stable MDF stand
• Designed for physics, energy science, and STEM demonstrations

Educational Applications

1. Thermoelectric power generation
2. Conversion of thermal energy into electrical energy
3. The Seebeck effect
4. The importance of temperature difference in thermoelectric systems
5. Basic concepts of energy conversion and thermoelectricity
6. Practical applications of thermoelectric generators

Ideal For

Frequently Asked Questions

What does the Thermocouple Electricity Generator demonstrate?

It demonstrates how a temperature difference across a thermoelectric element can generate a small electrical voltage, illustrating the principle behind the Seebeck effect.

Does the model require a battery?

The demonstration is designed to generate electrical output from a temperature difference rather than using a battery as the primary power source.

What can the generated electricity operate?

The model is intended for small educational demonstrations and may power low-energy components such as the included LED or small DC motor, depending on the heat input and temperature difference.

Who supplies the Thermocouple Electricity Generator?

The Thermocouple Electricity Generator is supplied by Elmo Agencies, a scientific manufacturer in Ambala, offering educational and laboratory equipment for schools, colleges, and STEM learning.

Conclusion

The Thermocouple Electricity Generator is a practical teaching model for understanding how thermal energy can be converted into electrical energy. By providing a visible demonstration of the Seebeck effect, temperature difference, and thermoelectric power generation, it helps students connect scientific theory with a real working application.
