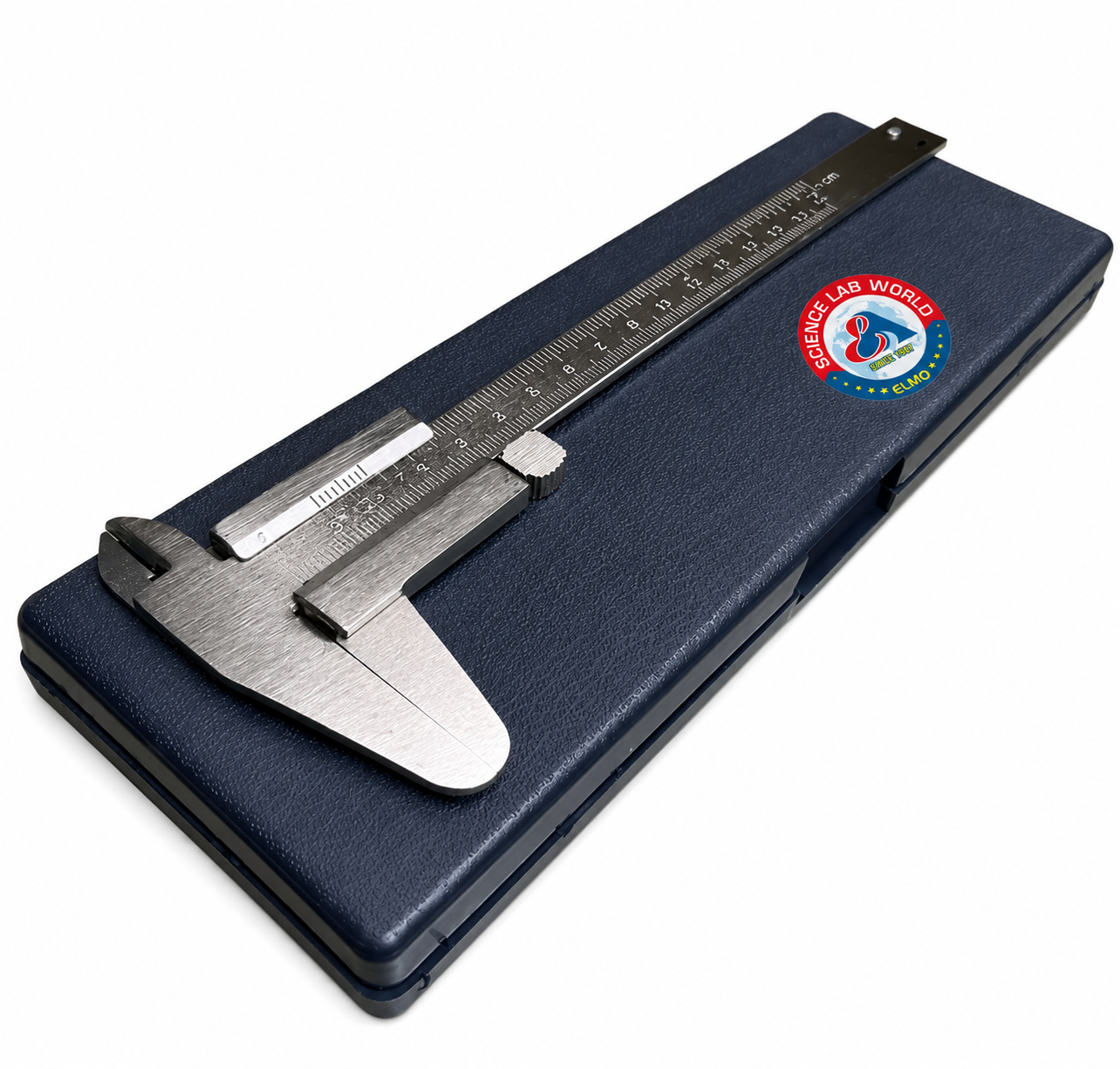

Vernier Calliper IME type
- A Vernier Calliper IME Type has two scales: the main scale and the vernier scale.
- These scales allow for highly accurate measurements of internal dimensions, external dimensions, and depth using different sets of jaws.
- The vernier scale provides more precise readings than a regular ruler or measuring tape.
- This tool is commonly used in engineering, physics, and manufacturing for precise measurements. It can provide measurements in both metric and imperial units for convenience and versatility.
₹150.00 ₹400.00
- To pick up today
- Free
- More details
- More details

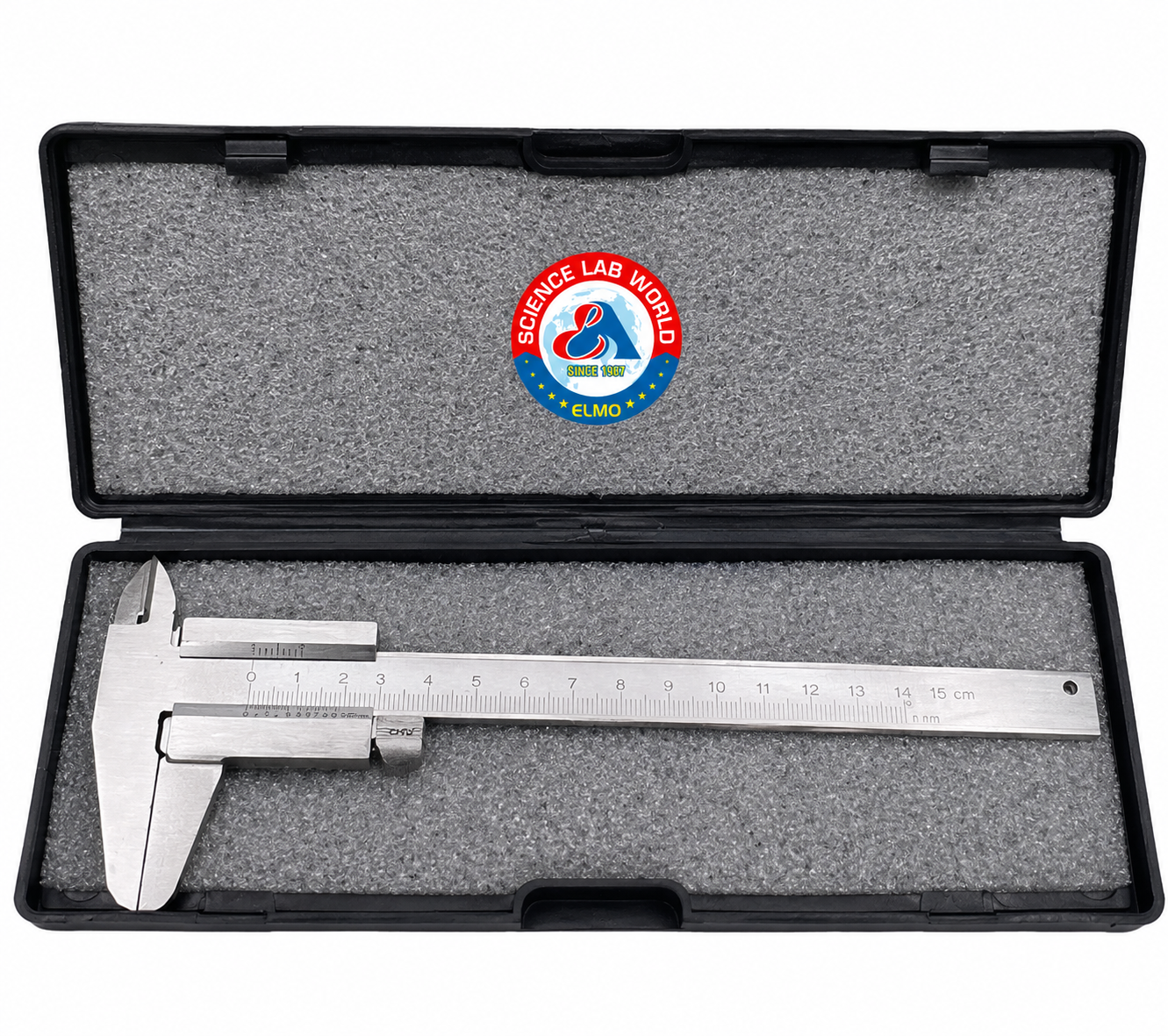

Vernier Calliper IME Type – Precision Measuring Instrument
The Vernier Calliper IME Type is a precision measuring instrument used to determine external dimensions, internal dimensions, and depth of objects. Manufactured by Elmo Agencies, a trusted scientific manufacturer in Ambala, it is suitable for physics laboratories, technical training, educational demonstrations, and general dimensional measurement.
A Vernier calliper consists of a main scale and a sliding Vernier scale. Depending on its design, it can be used with the appropriate jaws and depth arrangement to measure different dimensions more precisely than a conventional ruler.
Vernier Calliper Least Count
The least count is the smallest measurement that a Vernier calliper can resolve. It depends on the relationship between the divisions on the main scale and those on the Vernier scale.
A commonly used formula is:
Least Count = 1 Main Scale Division ÷ Number of Vernier Scale Divisions
For example, if one main scale division is 1 mm and the Vernier scale has 50 divisions, the least count would be:
1 mm ÷ 50 = 0.02 mm
The exact least count depends on the graduation of the particular Vernier calliper. Common least-count values include 0.01 mm, 0.02 mm, and 0.05 mm.
Common Least Counts
- 0.01 mm – For finer measurements
- 0.02 mm – Common for precision measurements
- 0.05 mm – Suitable where lower measurement resolution is sufficient
A lower least-count value generally means the instrument can distinguish smaller measurement differences.
Applications
The Vernier Calliper IME Type is suitable for:
- Physics laboratory experiments
- Measuring external dimensions
- Measuring internal dimensions
- Depth measurement
- Technical education and training
- Workshop and practical measurement activities
Conclusion
The Vernier Calliper IME Type by Elmo Agencies is a practical precision measuring instrument for studying and measuring dimensional values. Its main scale and Vernier scale allow students and users to perform accurate external, internal, and depth measurements in laboratory and educational applications.
