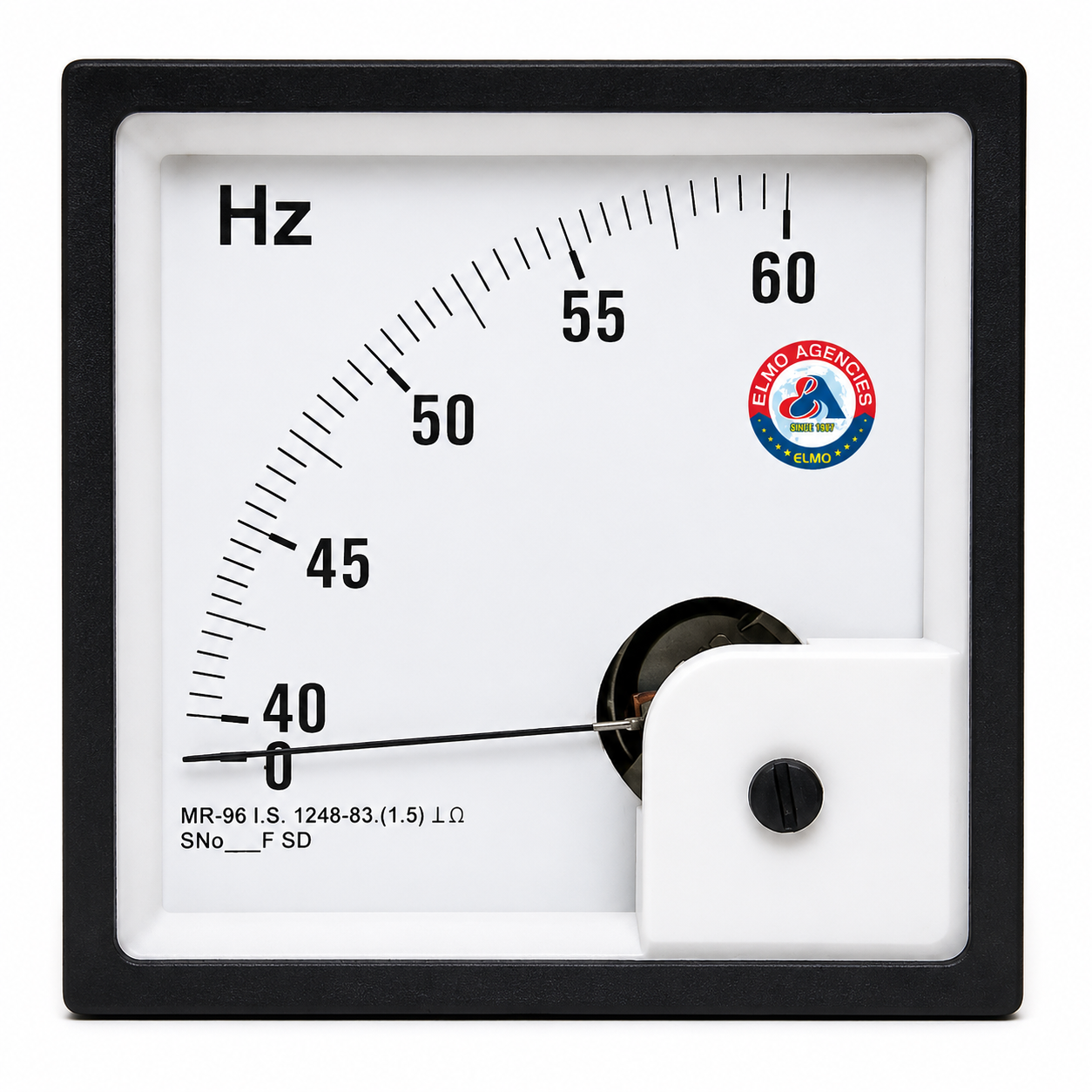

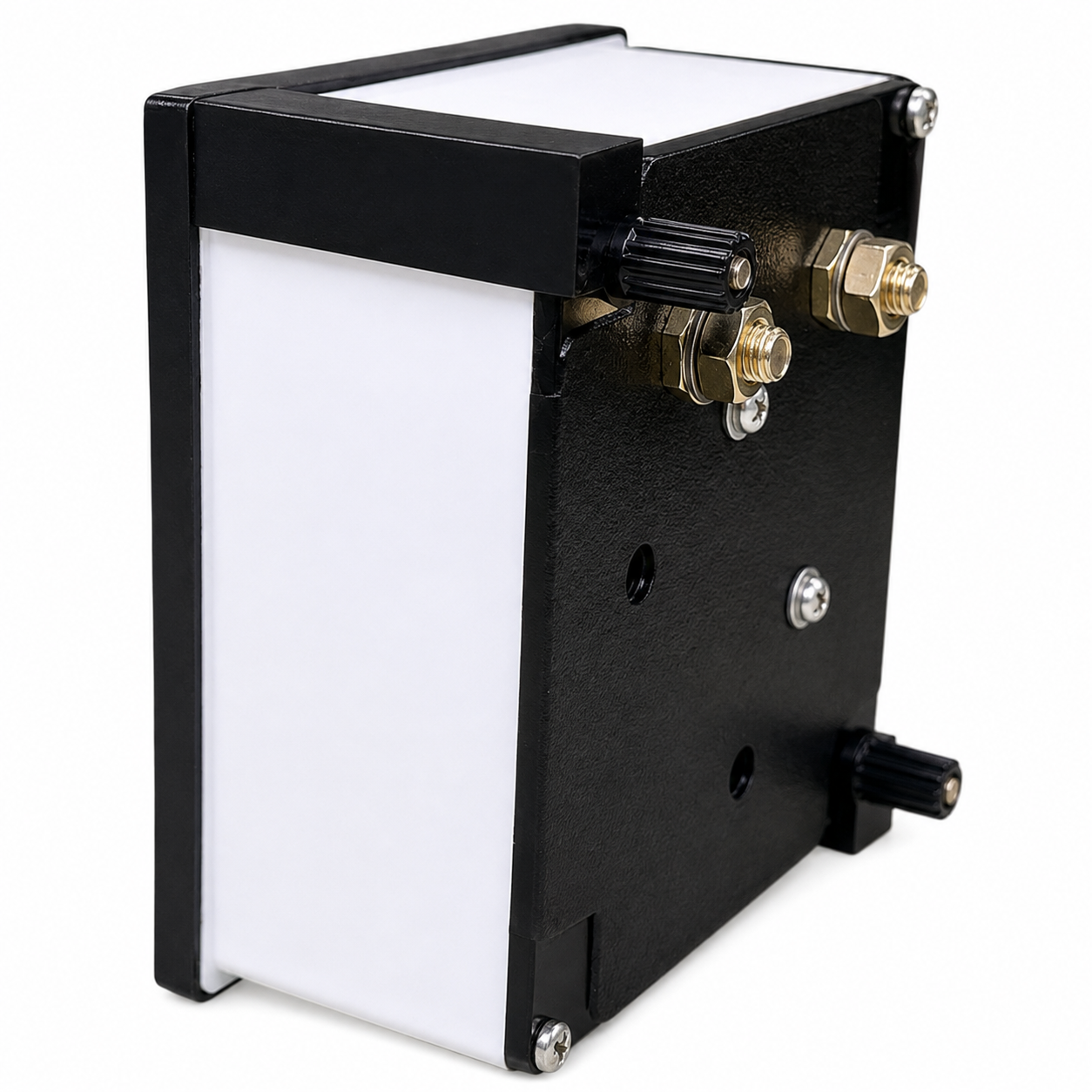

Analog Frequency Meter

The Analog Frequency Meter is an electrical measuring instrument used to determine the frequency of an electrical signal, typically expressed in hertz (Hz). It provides a visual reading through a calibrated analog dial, making it useful for observing and assessing signal frequency in practical applications.

Analog Frequency Meter converts the characteristics of an input electrical signal into a corresponding indication on its dial. Manufactured by Elmo Agencies, a trusted scientific manufacturer in Ambala, its internal measuring circuit processes the applied signal and produces a proportional response that moves the meter pointer across the calibrated scale.

Working Principle

The operation of this Meter depends on internal electrical components and measuring circuitry that process the applied signal. The resulting response is represented by the movement of a pointer, allowing users to read the approximate frequency directly from the calibrated dial.

The analog display provides immediate visual feedback, which can be useful when monitoring changes in signal frequency during electrical and electronic testing.

Applications

The Meter can be used in:

• Electrical testing
• Electronics laboratories
• Telecommunications applications
• Audio and signal-related experiments
• Educational demonstrations
• Technical training

Key Advantages of  Analog Frequency Meter

• Direct analog indication of frequency
• Easy-to-read calibrated dial
• Provides immediate visual feedback
• Suitable for laboratory and educational applications
• Useful for practical electrical and electronic measurements

Conclusion

Analog Frequency Meter provides a straightforward method of observing the frequency of electrical signals through a calibrated analog display. Its simple visual operation makes it suitable for electrical laboratories, electronics training, testing applications, and educational demonstrations.
