LDR Characteristics Apparatus

LDR Characteristics Apparatus for Resistance vs. Light Intensity Study

The LDR Characteristics Apparatus is a specialized educational instrument designed to study the relationship between light intensity and the resistance of a Light Dependent Resistor (LDR). Manufactured by Elmo Labs and supplied by Elmo Agencies, a trusted scientific instrument manufacturer in Ambala, this apparatus is widely used in schools, colleges, engineering institutions, and physics laboratories for experiments involving photoelectric devices and semiconductor components.

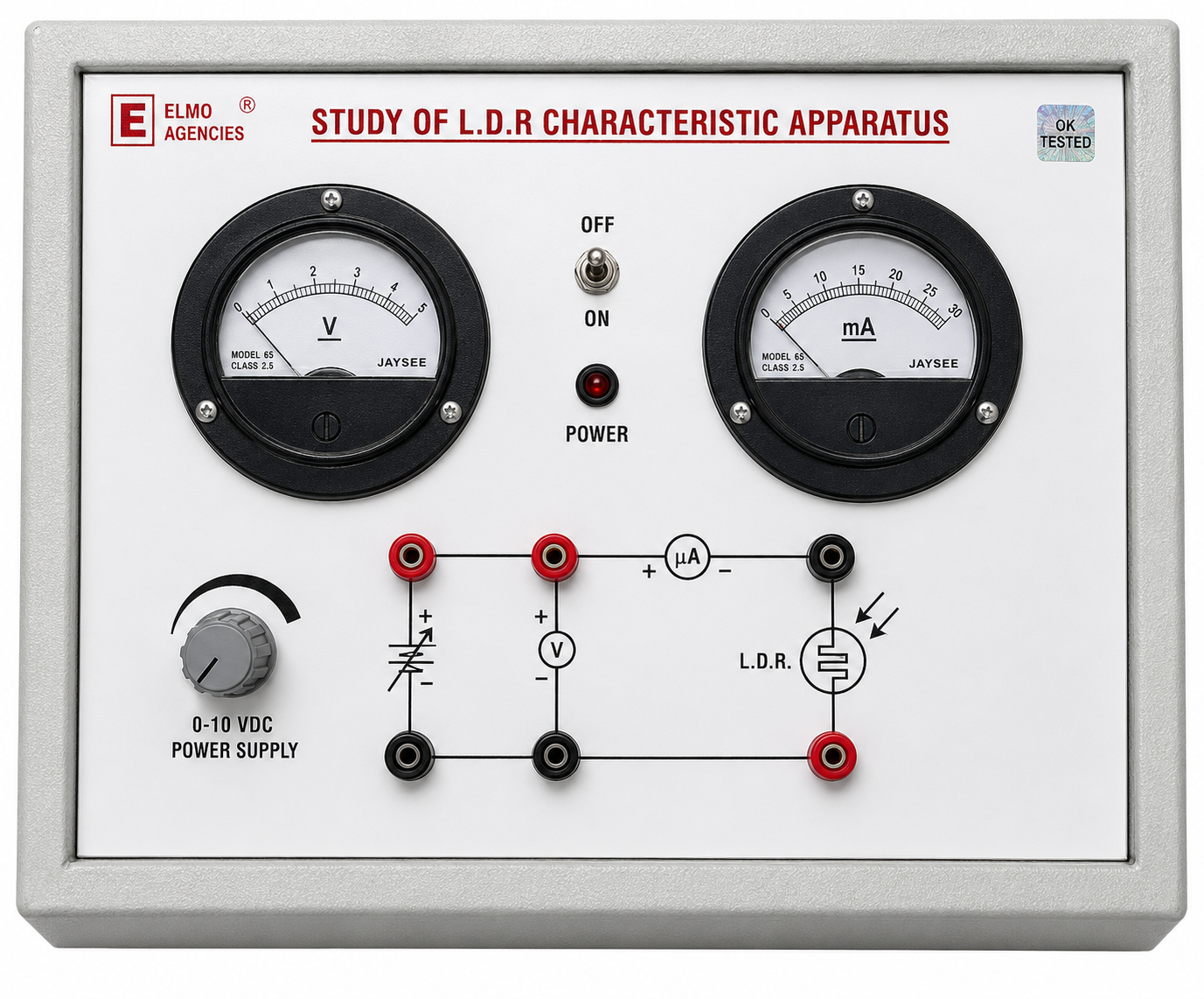

The apparatus consists of a regulated DC power supply, an LDR sensor, a controlled light source, measuring instruments, and connecting terminals mounted on a sturdy panel. It enables students to observe how the resistance of an LDR changes with varying light intensity. As the intensity of incident light increases, the resistance of the LDR decreases, allowing learners to study the fundamental operating principles of light-sensitive electronic components.

Using the LDR Characteristics Apparatus, students can investigate important parameters such as resistance versus light intensity, dark resistance, saturated resistance, response time, wavelength sensitivity, and temperature effects on LDR performance. These experiments provide valuable practical knowledge of photoresistors and their applications in automatic lighting systems, security devices, light meters, and electronic control circuits.

Manufactured using quality components by Elmo Labs and offered by Elmo Agencies, a leading manufacturer in Ambala, the LDR Characteristics Apparatus is designed for accuracy, durability, and repeated laboratory use. Its educational value and practical functionality make it an essential instrument for electronics laboratories, physics practicals, STEM education programs, and institutions focused on semiconductor and sensor technology studies.
