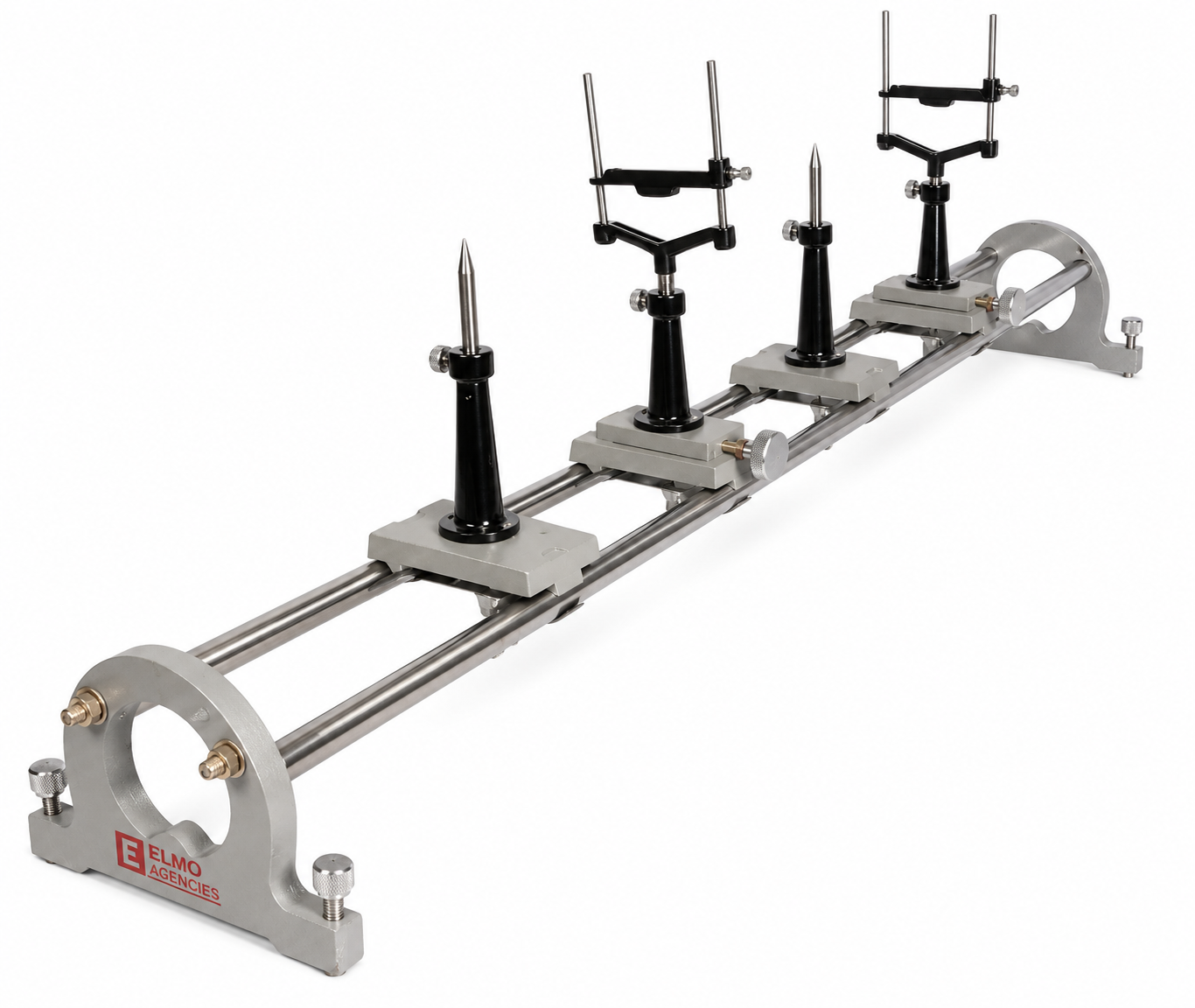

Optical Bench Half Shaper

Optical Bench Half Shaper | Precision Optics Experiment Apparatus

The Optical Bench Half Shaper by ELMO Agencies is a precision-engineered laboratory apparatus designed for accurate optics experiments in schools, colleges, universities, and research laboratories. Built with two sturdy guide rods supported by heavy-duty metal stands with levelling screws, it provides excellent stability and precise alignment for lenses, mirrors, prisms, screens, and light sources during practical demonstrations.

Available in 1 Meter and 1.5 Meter sizes with Iron, Brass, Stainless Steel Pipe, and Stainless Steel Rod options, this optical bench is built for long-term laboratory use. With years of experience in scientific laboratory equipment manufacturing in Ambala, ELMO Agencies manufactures reliable instruments that help students perform optics experiments with greater accuracy and confidence.

What Is an Optical Bench Half Shaper?

An Optical Bench Half Shaper is a laboratory instrument used to position and align optical components along a common optical axis. Its half-round guide rail design provides smooth movement for optical accessories while maintaining proper alignment throughout the experiment.

The apparatus is widely used for studying reflection, refraction, image formation, focal length determination, prism experiments, and refractive index measurement. The Half Shaper design offers an excellent balance of stability, precision, and ease of operation, making it suitable for both classroom demonstrations and advanced laboratory practicals.

Working Principle

The Optical Bench Half Shaper allows optical components to slide accurately along calibrated guide rods.

• Lenses, mirrors, prisms, and screens are mounted on movable riders.

• A precision dual-unit graduated scale helps measure exact distances between components.

• Two riders feature slow-motion lateral adjustment for fine optical alignment.

• Heavy-duty support stands with levelling screws keep the bench stable during experiments.

This arrangement enables students to observe light behaviour and optical phenomena with repeatable and accurate results.

Product Specifications

• Type: Optical Bench Half Shaper
• Rail Design: Half Round (D-Shaped)
• Material: High-Quality Metal Construction
• Scale: Precision Graduated Measurement Scale
• Carriers: Smooth Sliding Optical Holders
• Finish: Durable Powder-Coated Surface
• Application: Optics and Physics Experiments

Educational Applications

Image Formation Studies

Observe image formation by convex and concave lenses.

Reflection Experiments

Verify the laws of reflection using optical mirrors.

Refraction Studies

Study the bending of light through transparent materials.

Focal Length Determination

Determine the focal lengths of lenses and mirrors accurately.

Refractive Index Measurement

Measure refractive indices using prisms and optical blocks.

STEM Learning Activities

Encourage practical exploration of optics and light behavior.

Key Features

🔬 Precision optical alignment system

📏 Graduated scale for accurate measurements

⚙️ Smooth sliding carriers for easy adjustment

🛡️ Durable metal construction

🏫 Suitable for schools, colleges, and laboratories

📘 Supports curriculum-based optics experiments

🎓 Promotes hands-on scientific learning

🔍 Ideal for image formation and light studies

Common Experiments Performed

• Determination of focal length of convex lenses
• Determination of focal length of concave mirrors
• Verification of lens formula
• Reflection and refraction experiments
• Prism and refractive index studies
• Total internal reflection experiments
• Image formation investigations

Benefits

✅ Accurate optical measurements

✅ Stable and reliable experimental setup

✅ Easy alignment of optical components

✅ Durable construction for long-term use

✅ Supports practical physics education

✅ Ideal for laboratory demonstrations and student experiments

Ideal For

• Physics Laboratories
• Schools and Colleges
• Universities
• STEM Learning Centres
• Science Exhibitions
• Teacher Training Programs
• Educational Institutions

Why Choose ELMO Agencies?

ELMO Agencies combines precision engineering with practical classroom requirements to manufacture laboratory equipment that delivers consistent performance. Our expertise in laboratory equipment manufacturing in Ambala enables us to produce optical instruments that meet the expectations of educators, laboratory professionals, and research institutions.

Every Optical Bench Half Shaper is manufactured using premium-grade materials, precision machining, and strict quality control to ensure smooth rider movement, accurate alignment, and long-lasting durability. Today, ELMO Agencies is recognized as a Scientific Instrument Manufacturer in India, supplying quality laboratory equipment to schools, colleges, engineering institutes, and distributors across the country.

Frequently Asked Questions (FAQ)

Q1: What is the Optical Bench Half Shaper used for?

A: It is used for conducting optics experiments involving lenses, mirrors, prisms, reflection, refraction, and image formation.

Q2: What makes the Half Shaper design different?

A: The half-round rail design provides improved stability, smooth movement, and precise alignment of optical components.

Q3: Can it be used for focal length determination?

A: Yes, it is commonly used for determining the focal lengths of lenses and mirrors.

Q4: Is it suitable for educational laboratories?

A: Yes, it is ideal for schools, colleges, universities, and physics laboratories.

Q5: What experiments can be performed using this apparatus?

A: Reflection, refraction, image formation, lens formula verification, refractive index measurement, and total internal reflection experiments.

Q6: Who supplies the Optical Bench Half Shaper?

A: ELMO Agencies, a trusted scientific manufacturer in Ambala, supplies high-quality optical and laboratory equipment across India.

Conclusion

The Optical Bench Half Shaper by ELMO Agencies is a dependable laboratory apparatus for studying the behaviour of light through practical experimentation. Its double-rod construction, precision measurement scale, smooth sliding riders, and durable support system make it an excellent choice for educational institutions and research laboratories. Backed by years of expertise in scientific laboratory equipment manufacturing in Ambala and a strong reputation in Scientific Instruments Ambala, ELMO Agencies continues to deliver reliable laboratory solutions for modern science education.
