Petrol Engine Model Four Stroke

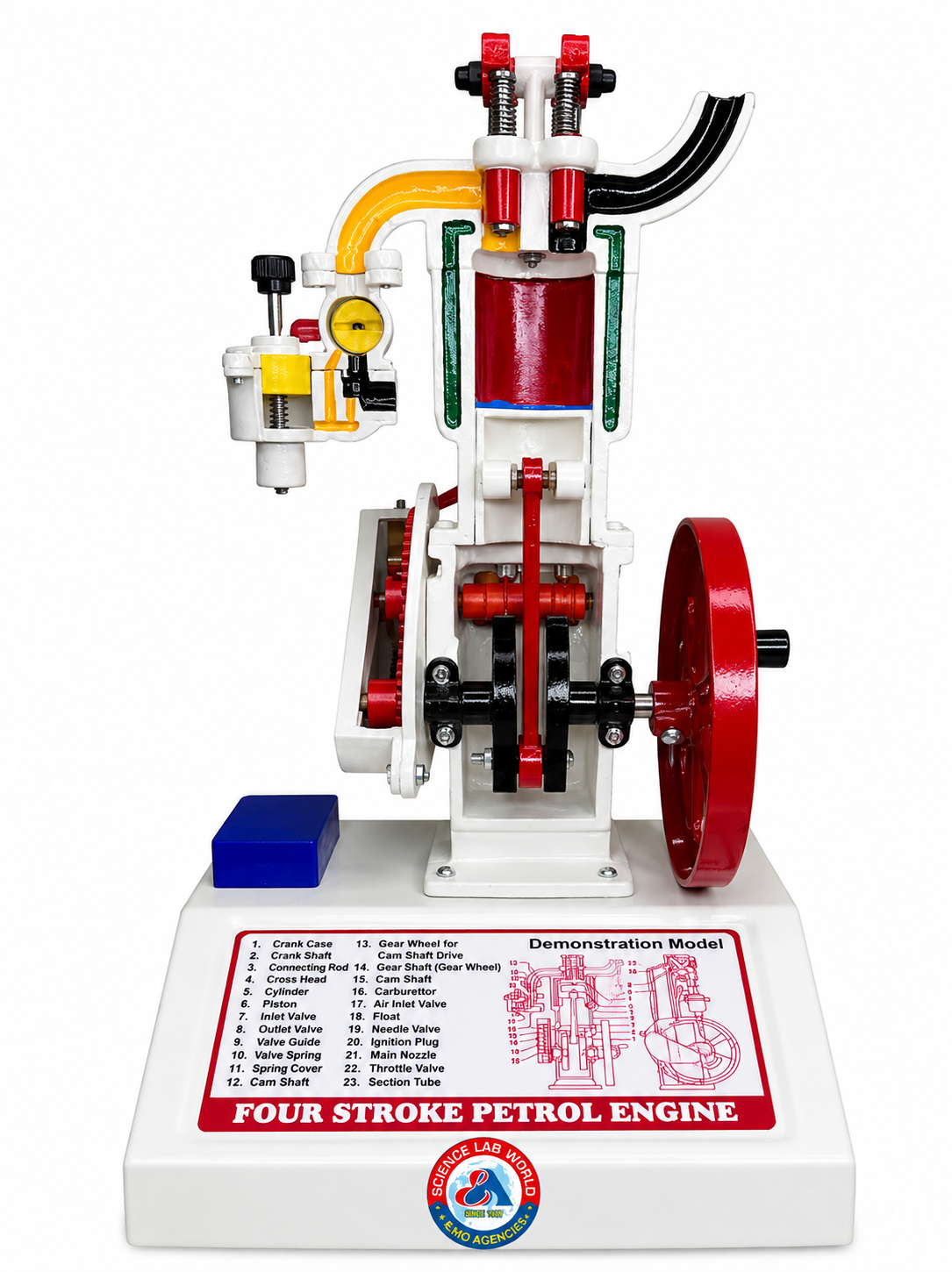

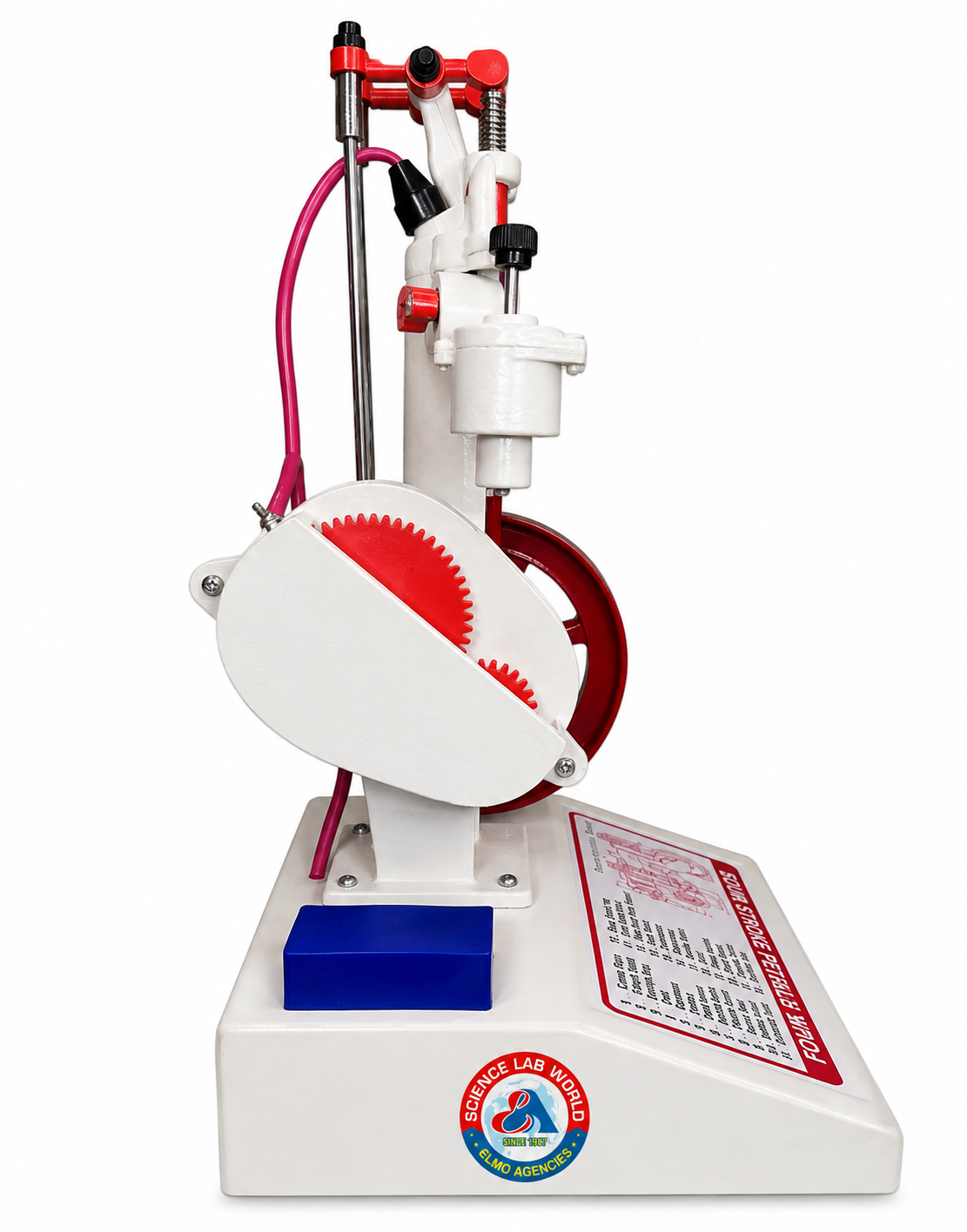

The Petrol Engine Model represents a petrol-powered internal combustion engine operating on the four-stroke cycle. It is designed by Elmo Agencies, a Manufacturer in Ambala, to provide a clear visual representation of the engine’s main components and the sequence of operations involved in producing mechanical power.

The model typically includes the following major components:

1. Cylinder: Represents the combustion chamber where the air-fuel mixture is compressed and ignited.
2. Piston: Moves up and down inside the cylinder to perform intake, compression, power, and exhaust functions.
3. Crankshaft: Converts the reciprocating movement of the piston into rotational motion.
4. Camshaft: Controls the opening and closing of the intake and exhaust valves at the appropriate times.
5. Valves: Intake valves allow the air-fuel mixture to enter the cylinder, while exhaust valves allow burnt gases to leave after combustion.
6. Connecting Rods: Connect the piston to the crankshaft and transfer the piston’s movement to the crankshaft.
7. Timing Gears/Belt: Synchronize the rotation of the crankshaft and camshaft to maintain correct valve timing.
8. Spark Plug: Produces the spark required to ignite the compressed air-fuel mixture.
9. Fuel System: Supplies the required fuel-air mixture to the engine through components such as a carburettor or fuel injector.
10. Ignition System: Provides the electrical energy required to generate the spark for combustion.

Four-Stroke Operating Cycle

The Petrol Engine Model can be used to demonstrate the four stages of a petrol engine cycle: intake, compression, power, and exhaust.

During the intake stroke, the piston moves downward while the intake valve opens, allowing the air-fuel mixture to enter the cylinder. During the compression stroke, the piston moves upward and compresses the mixture.

The power stroke begins when the spark plug ignites the compressed mixture. The resulting combustion pushes the piston downward, producing useful mechanical work. During the exhaust stroke, the piston moves upward while the exhaust valve opens, pushing the burnt gases out of the cylinder.

By rotating the crankshaft, students can observe the movement of the piston, valves, connecting rod, and other components throughout the complete cycle.

The Petrol Engine Model provides a practical and illustrative way to study the construction and operating principle of a four-stroke petrol engine. It is useful for students, technical learners, automotive enthusiasts, and anyone interested in understanding the working of internal combustion engines.
