Transistor Characteristics Apparatus (Socket Type)

Transistor Characteristics Apparatus (Socket Type) for NPN & PNP Comparison

The Transistor Characteristics Apparatus (Socket Type) (NPN & PNP) is a comprehensive educational instrument designed to study the electrical characteristics and performance of both NPN and PNP transistors. Manufactured and supplied by Elmo Agencies, a trusted scientific instrument manufacturer in Ambala, this apparatus is widely used in engineering colleges, technical institutes, and electronics laboratories for practical experiments involving semiconductor devices and transistor circuits.

A transistor is a semiconductor device commonly used as an amplifier and electronic switch in modern electronic systems. The apparatus enables students to analyze the voltage-current relationships of transistors and understand their behavior in various configurations such as common base and common emitter. Through hands-on experimentation, learners gain practical knowledge of transistor operation, current gain, amplification, and switching characteristics.

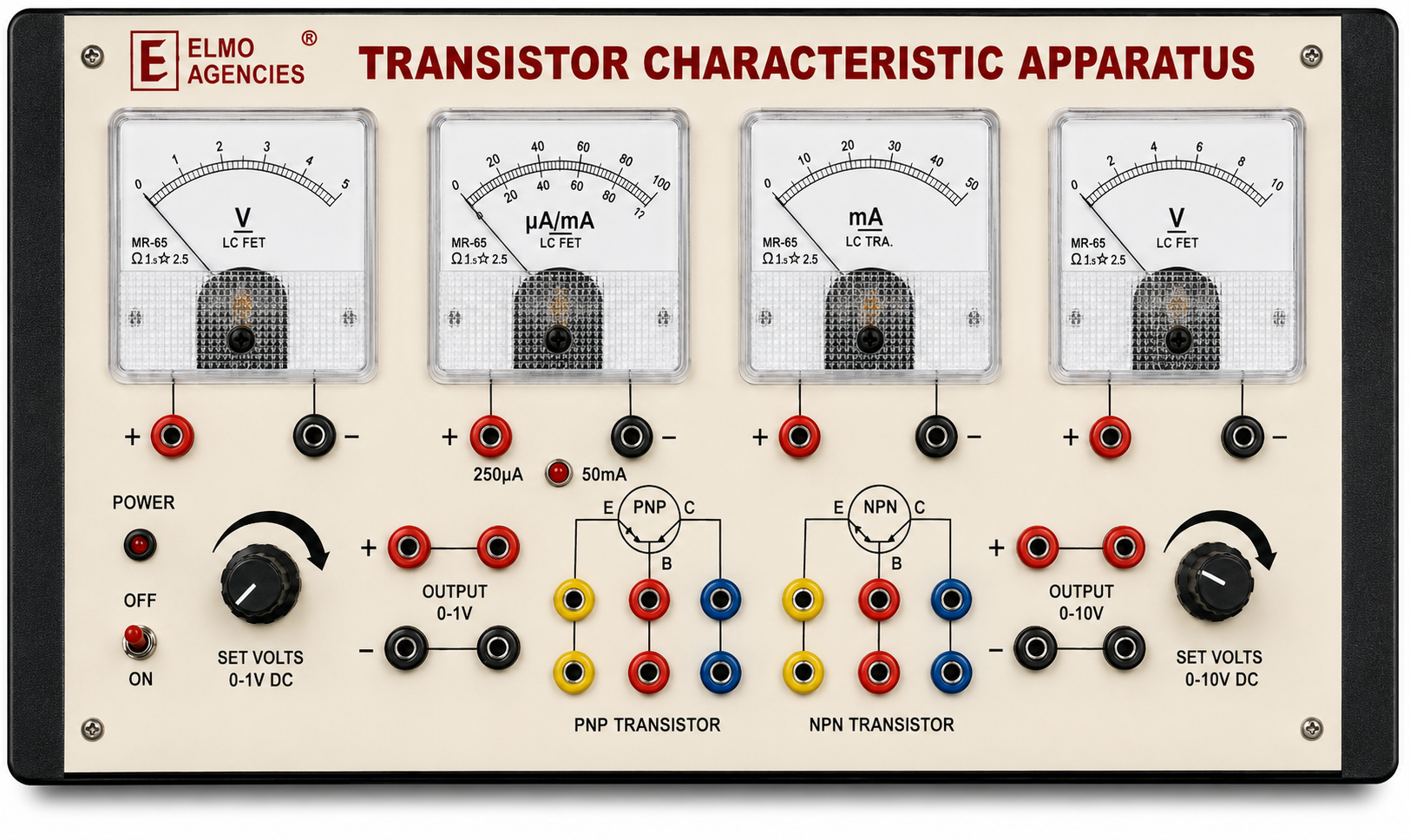

The apparatus is equipped with four analog meters for accurate observation of voltage and current parameters. It includes two regulated power supplies of 0-1V/50mA and 0-10V/50mA, allowing precise control during experiments. Both NPN and PNP transistors are mounted within the cabinet, enabling students to perform comparative studies and investigate transistor characteristics under different operating conditions.

Using this apparatus, students can plot input and output characteristic curves, study transistor biasing techniques, and understand the role of transistors in electronic circuit design. Manufactured using quality components by Elmo Labs and offered by Elmo Agencies, a leading manufacturer in Ambala, the Transistor Characteristics Apparatus is designed for accuracy, durability, and long-term laboratory use. Its educational value makes it an essential instrument for electronics education, semiconductor studies, and practical learning in physics and engineering laboratories.

Why Choose ELMO’s Transistor Characteristics Apparatus (Socket Type)

Elmo Agencies is a trusted scientific manufacturer in Ambala, and the Transistor Characteristics Apparatus (Socket Type) reflects that commitment to precision-built lab equipment. Unlike fixed-wiring alternatives, this apparatus features socket-mounted NPN and PNP transistors, letting students quickly swap components and directly compare characteristics under different configurations — without rewiring the circuit each time.

Built with four reliable analog meters and two regulated power supplies (0-1V/50mA and 0-10V/50mA), the apparatus delivers accurate, repeatable readings for plotting input and output characteristic curves. Its rugged cabinet construction is designed to withstand daily handling in busy engineering colleges, technical institutes, and electronics laboratories, ensuring consistent performance experiment after experiment.

Backed by a 1-year warranty and Elmo Agencies’ decades of experience as a manufacturer in Ambala, this socket-type apparatus offers students a faster, more hands-on way to explore transistor biasing, amplification, and switching behavior — making it a smart choice for labs that value both durability and ease of use.
