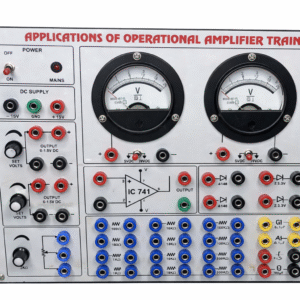

The Operational Amplifier Trainer comes with three built-in DC regulated power supplies. Two supplies provide 0–1.5V at 150 mA, and one provides ±15V DC. It also includes two dual-range moving coil meters for easy measurement. The circuit diagram is printed directly on the front panel, and a variety of resistors and capacitors are already provided, allowing users to perform multiple experiments without additional components.
