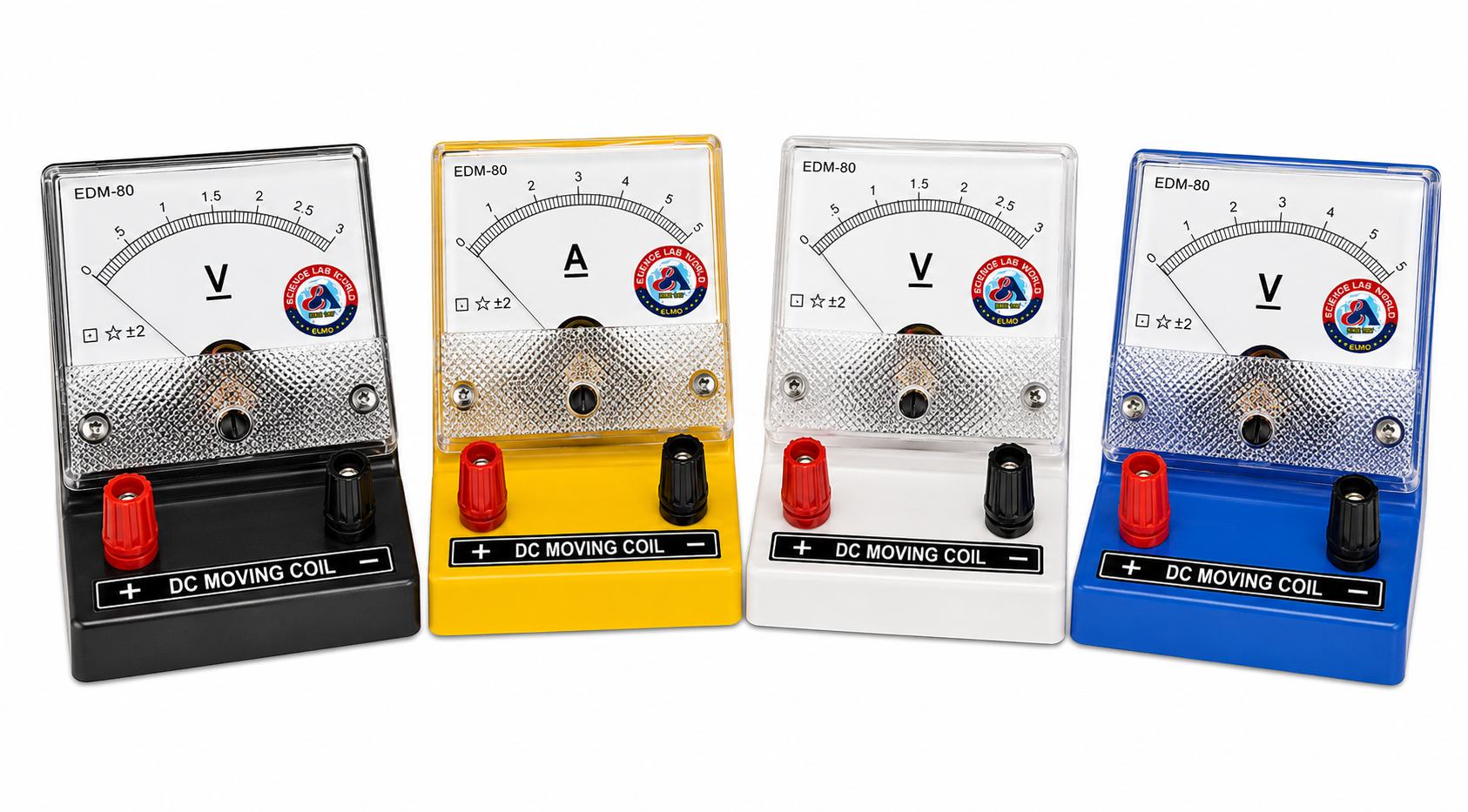

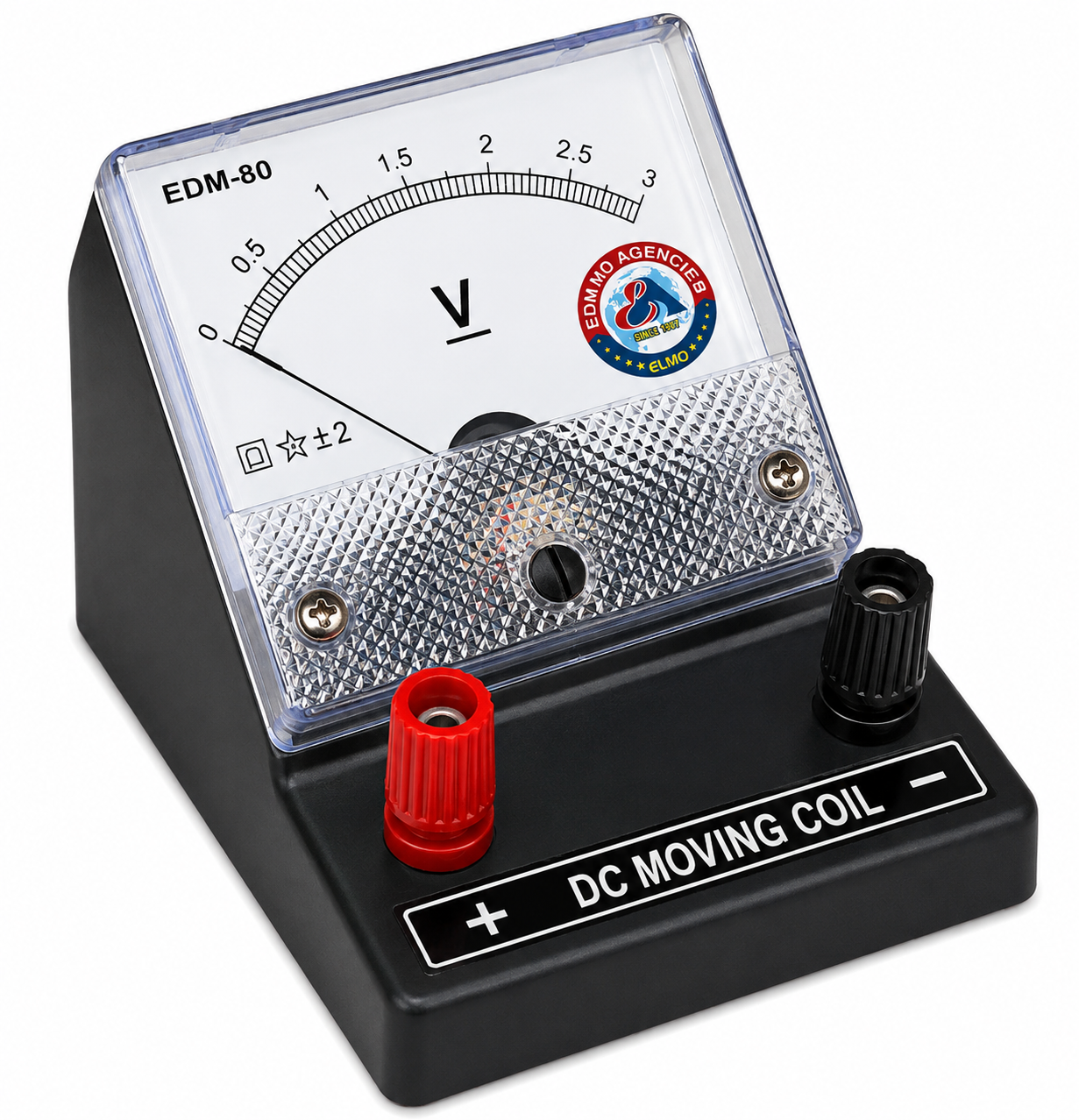

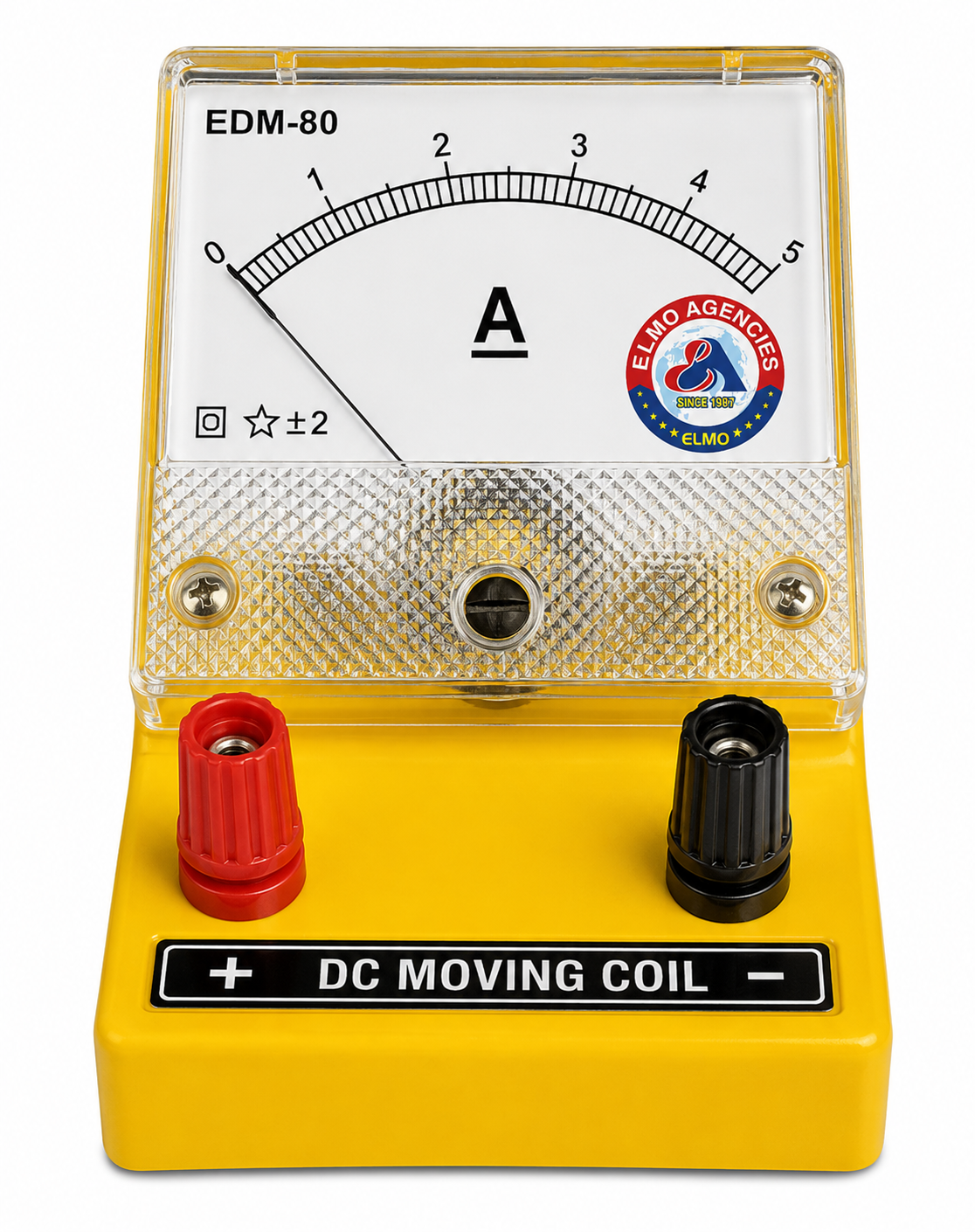

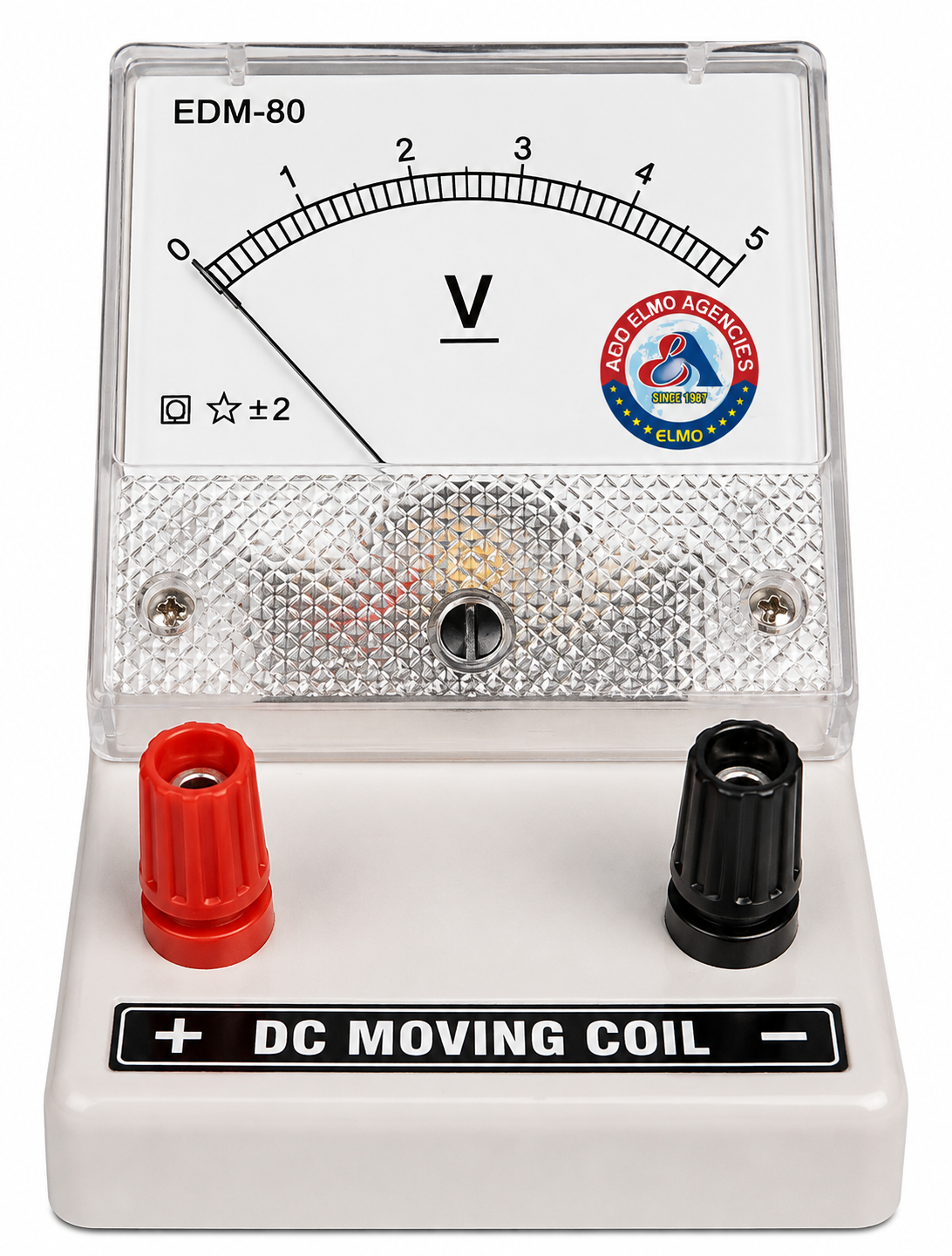

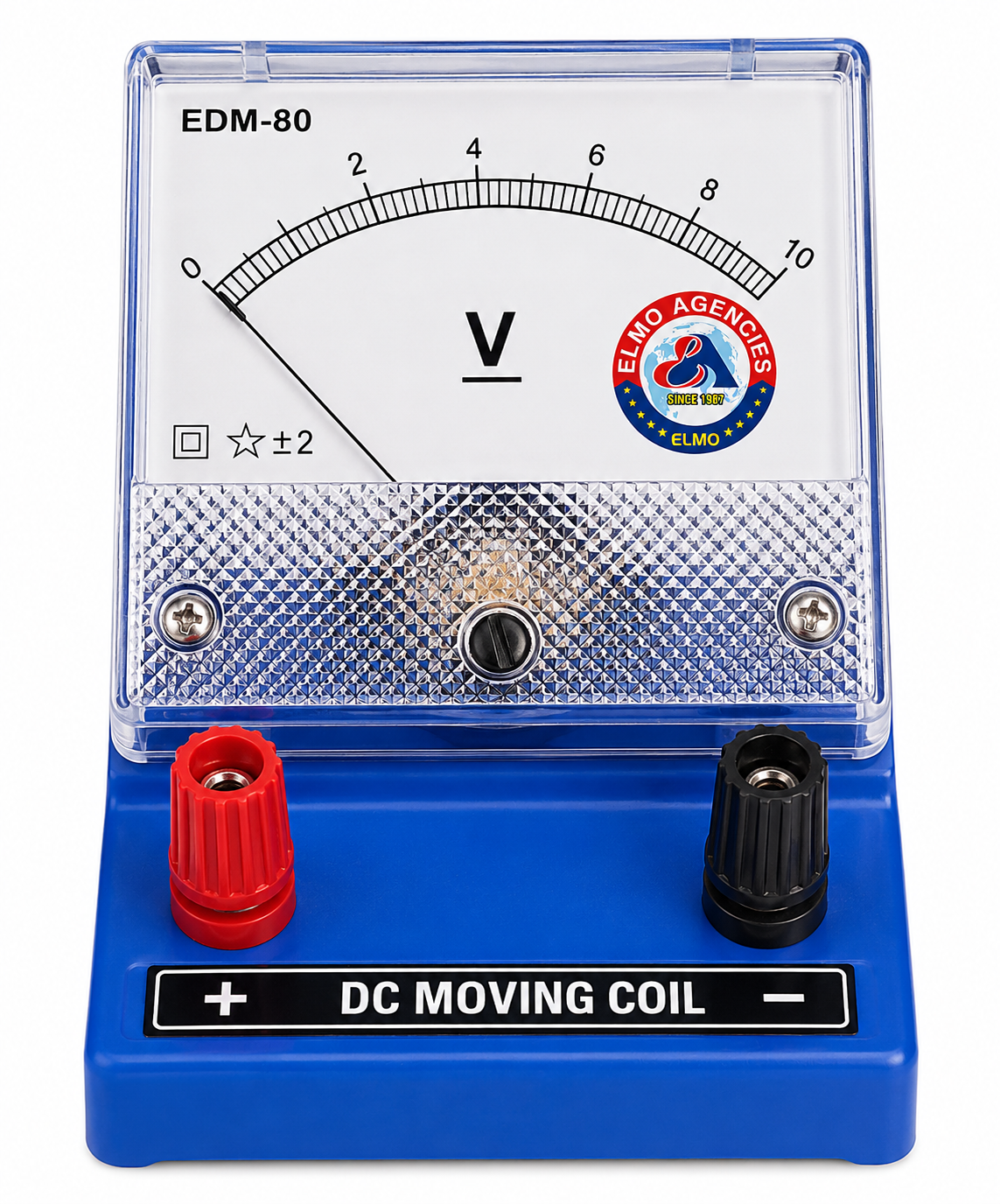

EDM80 Desk Stand Meter
Salient Features
- EDM80 Desk Stand Meter is specially designed for easy use in educational institutions and laboratories
- Multiple Ranges of Voltmeter, Ammeter, and Galvanometer Available
- Meters are inclined for easy reading and mounted on ABS plastic stands with brass terminals.
- Clear and well-defined dial markings with a knife-edge pointer
Price range: ₹150.00 through ₹160.00
- To pick up today
- Free
- More details
- More details
EDM80 Desk Stand Meter
The EDM80 Desk Stand Meter is a laboratory measuring instrument designed for electrical and physics laboratory applications. Manufactured by Elmo Agencies, a trusted scientific manufacturer in Ambala, it is available in ammeter, voltmeter, and galvanometer configurations with multiple measurement ranges.
The EDM80 is offered in single-range, dual-range, and triple-range options, providing different configurations for laboratory measurement requirements.
Range Ammeter
Single Range – 250uA, 300uA, 500uA, 1mA, 5mA, 10mA, 50mA, 100mA, 300mA, 500mA, 1A,3A, 5A, 10A
Dual Range – 1A/5A, 2.5A/5A, 500mA/1A
Triple Range – 50mA/500mA/5A
Range Voltmeter
Single Range – 100mV, 150mV, 250mV, 500mV, 1V, 2V, 3V, 5V, 10V, 15V, 20V, 25V, 100V, 150V, 300V
Dual Range – 1V/5V, 2.5V/5V
Triple Range – 3V/15V/30V
Range Galvanometer
Single Range – 30-0-30 G, 50-0-50 G, 35-0-35 G
Applications
The EDM80 Desk Stand Meter is suitable for:
- Physics laboratory experiments
- Electrical measurement practicals
- DC and voltage measurements
- Galvanometer experiments
- Science classroom demonstrations
- Educational and technical training
Conclusion
The EDM80 Desk Stand Meter is a versatile laboratory instrument available with ammeter, voltmeter, and galvanometer configurations. Its single, dual, and triple range options provide flexibility for different electrical measurement requirements. It is well suited for physics laboratories, educational institutions, practical electrical experiments, and technical training, where reliable measurement across different ranges is required.
- Overview
| Brand | ELMO |
|---|---|
| Size | 120*80*83mm |
| Accuracy | +/- 2 F.S.D |
| Color | Black, Blue, White, Yellow |
| Scale length | 80mm |
| Packaging | Thermocol Box |
