Vernier Calliper Stainless Steel
A vernier calliper is defined as a measuring device that is used for the measurement of linear dimensions. It is also used for measuring the diameters of round objects with the help of the measuring jaws.
₹350.00
- To pick up today
- Free
- More details
- More details

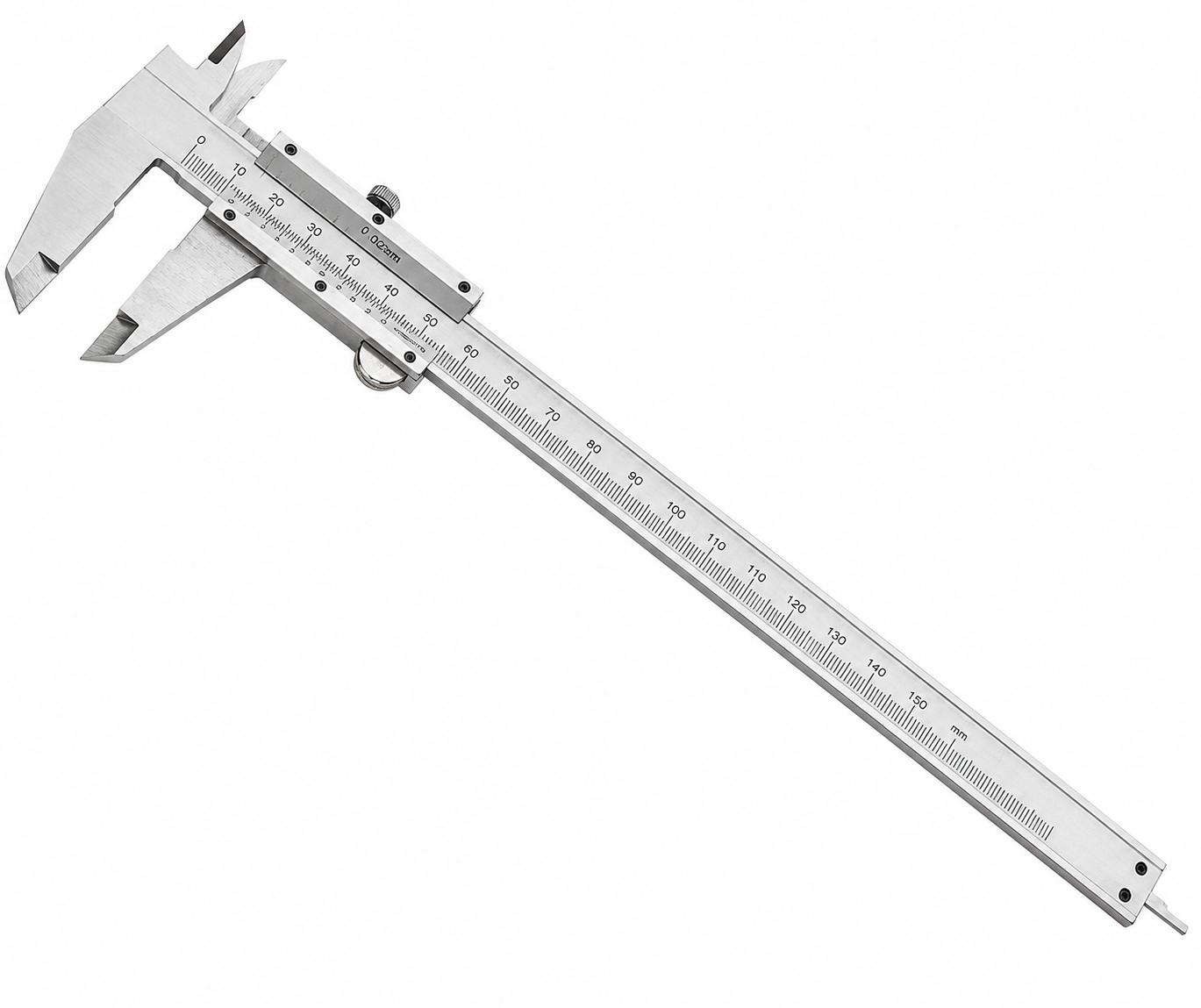

Vernier Calliper Stainless Steel
The Stainless Steel Vernier Calliper is a precision measuring tool designed for accurate dimensional measurements in laboratory, workshop, and educational settings. By Elmo Agencies, a Manufacturer in Ambala, this caliper features a 0–150 mm measuring range and is designed to measure external dimensions, internal dimensions, and depth. Its stainless-steel construction makes it suitable for regular practical use.
A Vernier Calliper uses a main scale and a sliding Vernier scale to obtain measurements with finer resolution than a standard ruler. The different measuring surfaces allow users to determine the dimensions of objects such as wires, rods, components, and other laboratory specimens.
Least Count of Vernier Calliper
The least count is the smallest measurement that a Vernier Calliper can resolve. For this model, the specified least count is 0.02 mm.
A commonly used formula is:
Least Count = 1 Main Scale Division − 1 Vernier Scale Division
The measurement is obtained by combining the main-scale reading with the corresponding Vernier-scale reading.
For example, if the main-scale reading is 25 mm and the applicable Vernier reading is 0.14 mm, the measured dimension would be 25.14 mm.
Specifications
| Specification | Details |
|---|---|
| Material | Hardened stainless steel |
| Least Count | 0.02 mm (0.001 inch) |
| Measuring Range | 0–150 mm |
| Measurement Types | External, internal & depth |
| Scale | Main scale + Vernier scale (mm & inch) |
| Origin | Ambala Cantt, India |
Key Features
- 0.02 mm least count
- Stainless-steel construction
- 0–150 mm measuring range
- Measures external dimensions
- Measures internal dimensions
- Measures depth
- Millimetre and inch scale markings
- Suitable for laboratory and workshop applications
Applications
- Measuring wire and rod diameters
- Internal diameter measurement
- Depth measurement
- Physics laboratory practicals
- Engineering and workshop measurements
- School and college laboratory work
- Technical training
How to Read the Vernier Calliper
To take a measurement, first note the main-scale reading immediately before the Vernier zero. Then identify the Vernier division that aligns with a main-scale marking. Multiply the corresponding Vernier reading by the specified least count and add it to the main-scale reading.
Conclusion
The Stainless Steel Vernier Calliper by Elmo Agencies is a practical precision measuring instrument with a 0.02 mm least count and 0–150 mm range. Its stainless-steel construction and ability to measure external, internal, and depth dimensions make it suitable for physics laboratories, educational institutions, workshops, and technical applications.
